- Mori Seiki NLX2500SY/700 Lathe

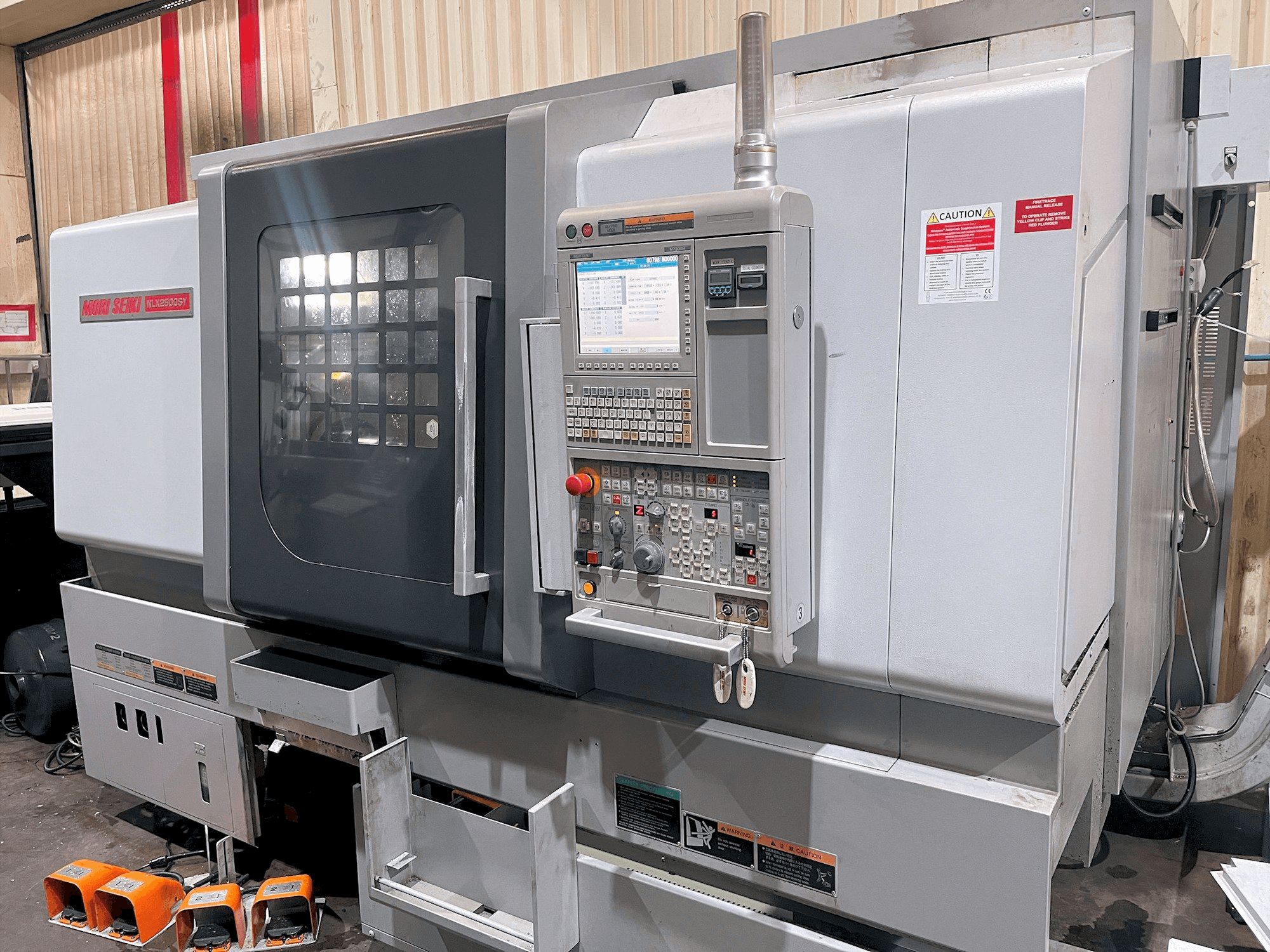

This Mori Seiki NLX2500SY/700 Lathe was manufactured in the year 2011 in Japan and has 19552 production hours, of which 10704 are spindle hours. It is controlled by a MORI SEIKI M730BM control unit and has 5 axis. The machine has a spindle speed of 4000 rpm and includes a Barfeed magazine and a Fume Extractor as additional equipment.
Overview
- brand: MORI SEIKI
- year: 2011
- MODEL: NLX2500SY/700
- production hours: 19552
- application type: Turning
- Location: United Kingdom
- machine type: Turn-Mill Centre
Technical Information - MORI SEIKI NLX2500SY/700
Dimensions
- Machine Depth: 2000 mm
- Machine Height: 2150 mm
- Machine Weight: 6040 kg
Movement
- Number of Axes: 5
- X-axis Travel: 260 mm
- Y-axis Travel: 50 mm
- Z-axis Travel: 795 mm
Technical Specification
- Number of Tools: 12
- Spindle Power: 18.5 kW
- Spindle Speed: 4000 RPM
Additional Information
Additional equipment
- Barfeed magazine
- Fume Extractor
Machine Benefits
Technical Machine Benefits
- Swing over bed: 590mm
- Swing over the cross-slide :360mm
- Maximum cutting diameter :460mm
- Maximum cutting length: 728mm
- Bar capacity: 80mm
- Sub spindle motor 11/7. 5kw, speed 6000rpm
- Rapid feedrates: 30m/minute
- Tool setter, parts catcher, swarf conveyor
- 3 jaw chuck, collet chuck, high pressure coolant, interlocked guards, low volt light
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
