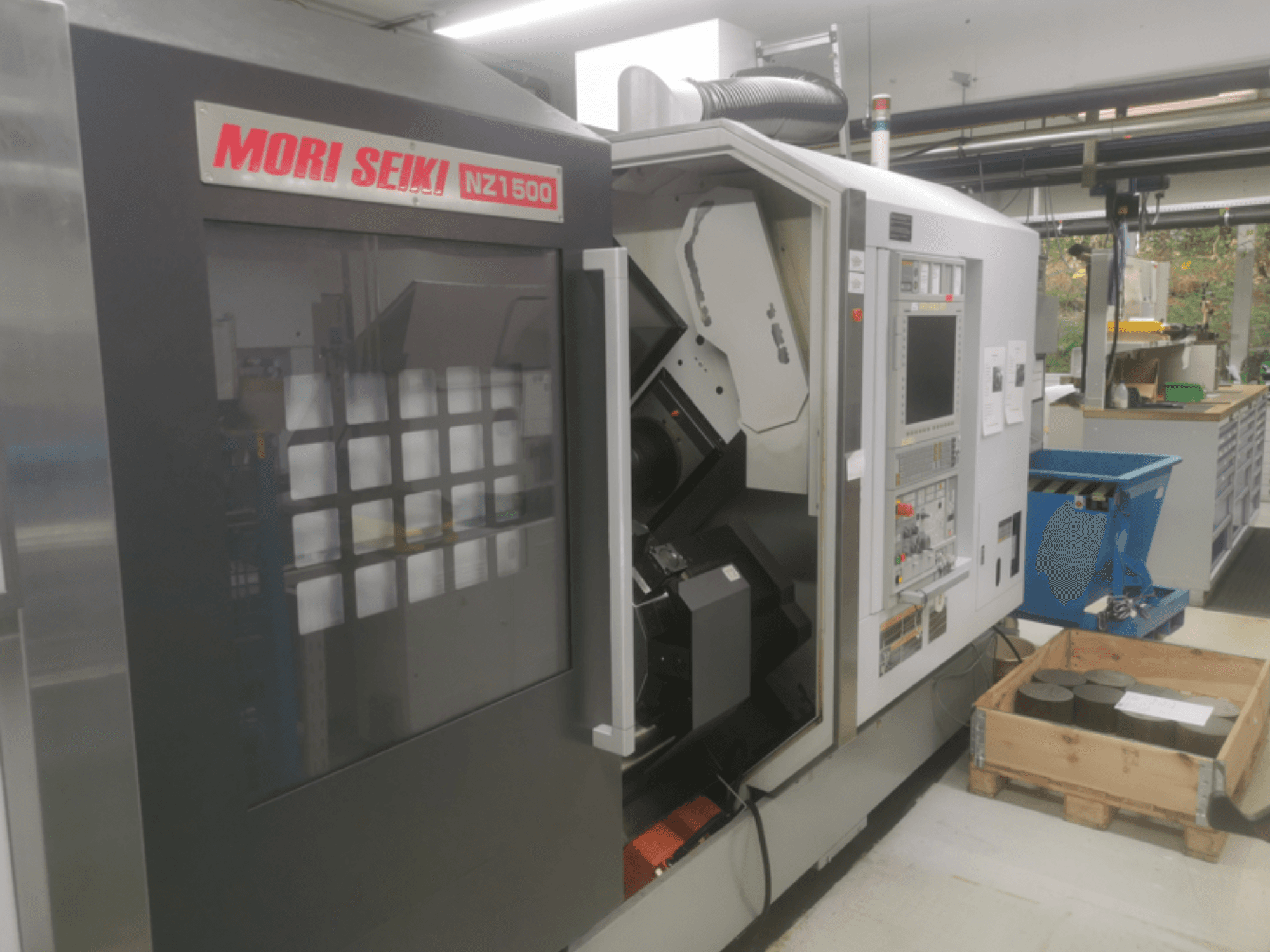

MORI SEIKI - NZ1500DE-TUR-MOR-2010-00001

Additional information

• MSX-701 IV (Fanuc)

• Programming via Mapps dialog and 3D monitoring

• Main spindle and counter spindle max. speed 6000 rpm

• Positions per turret: 16

• Driven tools Turret 1: 6000-12000 rpm

• Driven tools Turret 2: 6000 rpm

• External tool holders BMT:

• 17x longitudinal and facing tool holders

• 1x double tool holder

• 1x special end tool holder

• 2x modular parting tool holders

• 1x angle tool holder

• Bay bar holders BMT:

• 11x standard boring bar holders

• 1x double boring bar holder

• 1x boring bar blank holder

• 1x double boring bar holder left/right

• Driven tool holders BMT:

• 6x Angle Drilling and Milling Attachment

• 8x Straight Drilling and Milling Attachments

• Bar Feeder:

• Max. Raw Material Length for Loading: 1200 mm

• Material Reduction: 6 mm - 44 mm Diameter

• Matching Rams in 4 Sizes

• Steady Bezel for Mounting on the Turret: 4 mm - 64 mm Diameter

• Measuring System:

• Manual Tool Presetter, Main Spindle

• Manual Tool Presetter, Sub-Spindle

• Chip Removal: Chip Conveyor, Ejection on the Right

• Clamping Device:

• Kitagawa BB206A521 + SS1453K21 Clamping Device for Main or Sub-Spindle

• Hainbuch Combination Collet Nova Axfix 52 without Collets

• Coolant Supply:

• Coolant System: 70 bar, 500 l Coolant Tank with 7 Different Pressure Stages, Belt Filter

• Extraction System: Oil Mist Separator

• Integrated, movable workpiece unloading system with gripper counter spindle

• Weight: Approx. 8100 kg
