MORI SEIKI SH 5000
MORI SEIKI - SH 5000
2001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- MORI SEIKI SH 5000 Horizontal Machining Center

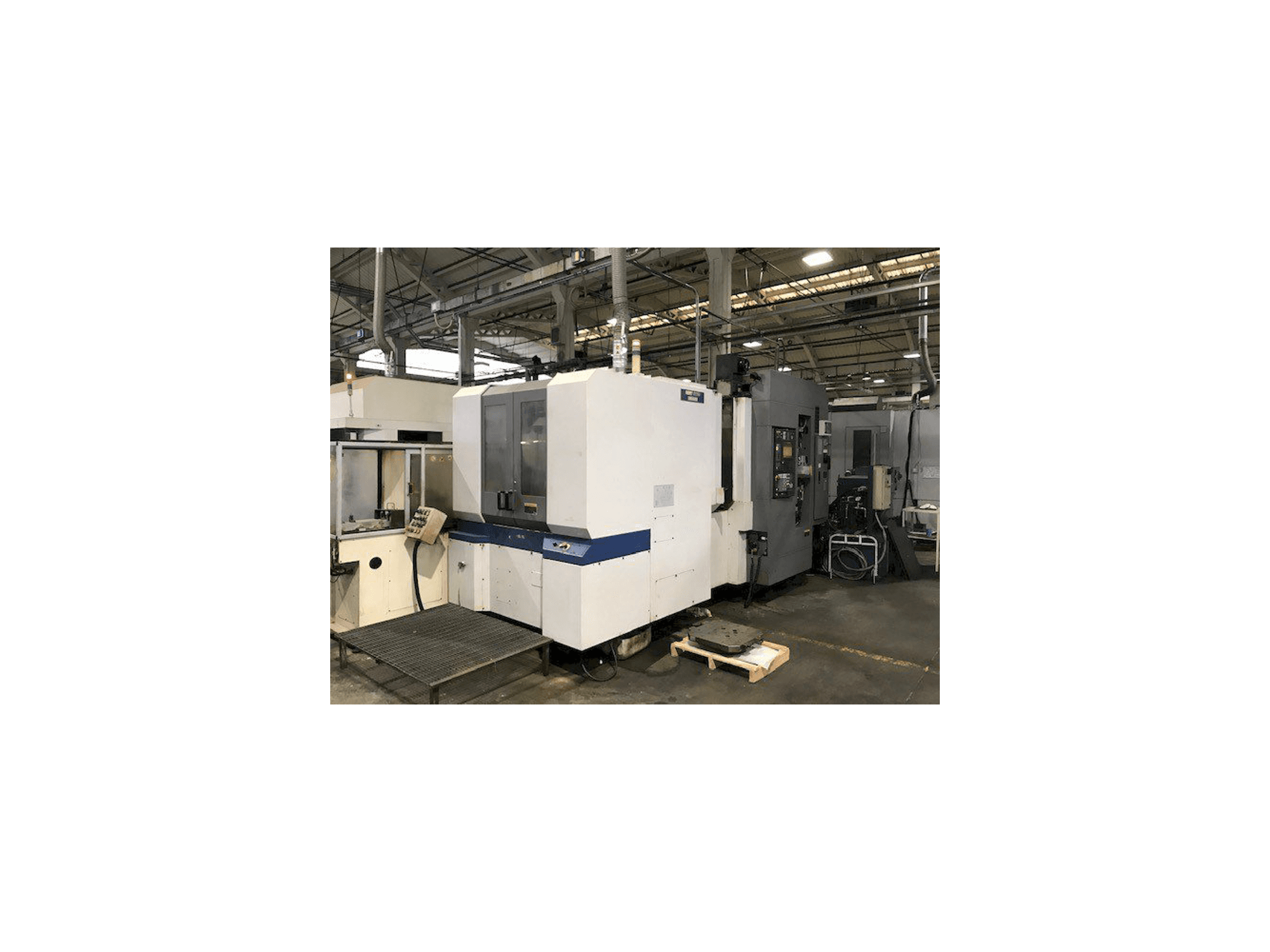

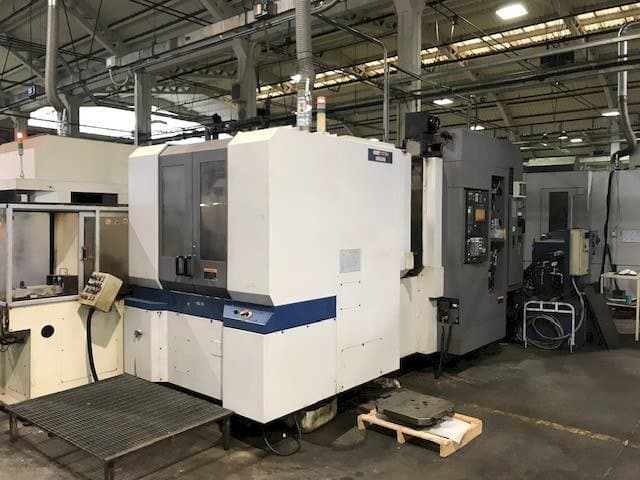

This MORI SEIKI SH 5000 Horizontal Machining Center was built in the year 2001. It has a working record of approximately 52000 production hours. It is capable of working with a spindle speed up to 12000 rpm. It includes a pallet changer, and a chip conveyor.
Overview
- brand: MORI SEIKI
- year: 2001
- MODEL: SH 5000
- production hours: 52000
- application type: Milling
- Location: Italy
- machine type: Machining centers (horizontal)
- availability: Sold
- GINDUMAC ID: IT-MIL-MOR-2001-00001
Technical Information
Main drive
- Spindle speed range: 12000 1/MIN
Movement
- X-AXIS Movement: 800 mm
- X-AXIS Rapid traverse: 50 m/min
- Y-AXIS Movement: 700 mm
- Y-AXIS Rapid traverse: 50 m/min
- Z-AXIS Movement: 700 mm
- Z-AXIS Rapid traverse: 32 m/min
Table
- Outer length: 500 mm
- Outer width: 500 mm
Tools
- Type of tool holder: ISO40
Media
- Main electronic connection: 380 V
Additional Equipment
- - Pallet changer
- - 4th axis continuously
- - Predisposition radio probing system
- - Chip conveyor
- - High pressure
- - Rows
- - Optics
Additional Information
- Technical Machine Benefits:
- - Capacity for 40 tools
- - Head potence: 18,5kw to work continuously
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
