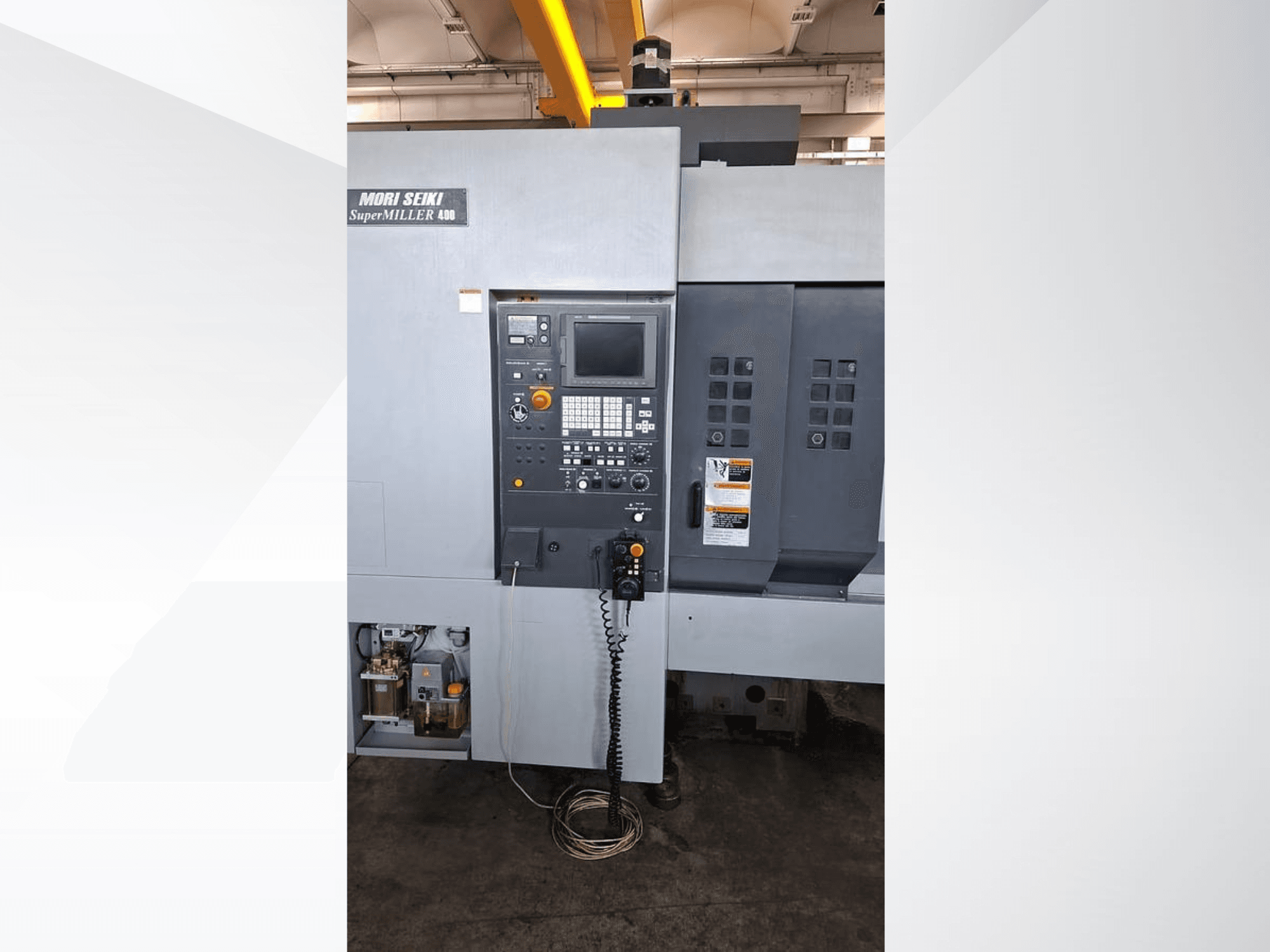

MORI SEIKI ZV 400 SUPER MILLER vertical machining centre, front view showing control panel and operational buttons.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MORI SEIKI ZV 400 SUPER MILLER

Photo Gallery

MORI SEIKI - ZV 400 SUPER MILLERIT-MIL-MOR-2005-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MORI SEIKI ZV 400 SUPER MILLER | Machining Center

This 5-axis MORI SEIKI ZV 400 SUPER MILLER was manufactured in 2005. It features an X-axis travel of 600 mm, Y-axis travel of 425 mm, and Z-axis travel of 450 mm. The machine includes a table diameter of Ø 350 mm and a maximum workpiece weight of 200 kg. If you are looking to get high-quality machining capabilities, consider the MORI SEIKI ZV 400 SUPER MILLER vertical machining centre we have for sale. Contact us for further details.

Overview

brand: MORI SEIKI
year: 2005
MODEL: ZV 400 SUPER MILLER
application type: Milling
Location: Italy
machine type: Vertical Machining Centre

Technical Information - MORI SEIKI ZV 400 SUPER MILLER

Dimensions

Machine Height: 3080 mm
Machine Length: 2000 mm
Machine Weight: 7600 kg
Table Width: 3275 mm

Additional Information

Axis Travels:
X Axis: 600 mm
Y Axis: 425 mm + CUA stroke 75 mm
Z Axis: 450 mm
A Axis Rotation: 360°
B Axis Rotation: −20° / +110°
Distance between table and spindle nose: 65 – 515 mm
Table Diameter: Ø 350 mm
Maximum Workpiece Weight: 200 kg
Table Turning Speed: 30 – 1500 rpm
Tool Magazine Capacity: 50 tools
Maximum Tool Diameter (with adjacent tools): Ø 90 mm
Maximum Tool Diameter (without adjacent tools): Ø 125 mm
Maximum Tool Length: 300 mm
Maximum Tool Weight: 8 kg
Rapid Traverse X–Y–Z: 45000 mm/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
