Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Muratec - MT 25 MCES-TUR-MUR-2001-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Muratec MT 25 MC Lathe

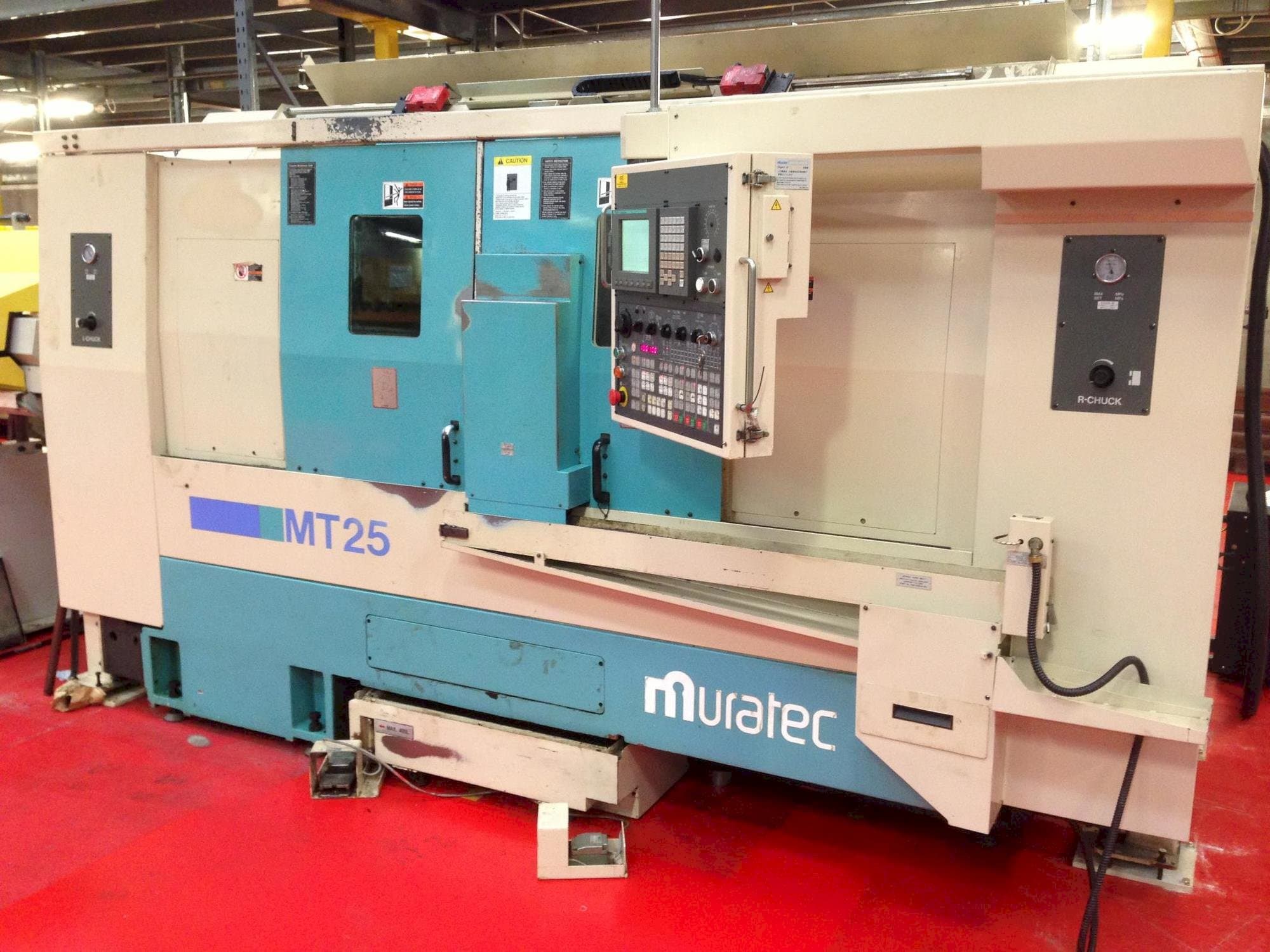

This Muratec MT 25 MC Lathe was manufactured in the year 2001 in Japan. It is equipped with a Fanuc 18i CNC control unit and has 7 axis. The machine has a spindle speed of 40-4000 rpm.
Overview
- brand: Muratec
- year: 2001
- MODEL: MT 25 MC
- application type: Turning
- Location: Spain
- machine type: Horizontal Turning Machine
- availability: Sold
- control unit brand: FANUC
Technical Information - Muratec MT 25 MC
General Data
- Measurements width: 4000 mm + 2000 mm bar loader
- Measurements depth: 2300 mm
- Measurements height: 2100 mm
- Machine weight: 10400 kg
Control Unit
- Model: 18i
- Brand: FANUC
Main drive
- Number of spindles: 2
- Spindle speed range: 40 - 4000 1/MIN
- Spindle motor power: 15 kW
- Number of axis: 7
Movement
- X-AXIS Movement: 180 mm
- Z-AXIS Movement: 930 mm
Turret
- Number of turrets: 2
- Number of tool slots: 15
Additional Equipment
- - Bar loader multifeed, maximum bar length 1.5 meters.
Additional Information
- Technical Machine Benefits:
- - Maximum chuck size: 254 mm
- - Max. Turning length 300 mm
- - Max. Turning diameter 380 mm
- - Length between centers 920 mm
- - Spindle nose a2-6
- - Spindle inside diameter 67 mm
- - Max. Turning diameter x in manual 340 mm
- - Max. Turning length z in manual 920 mm
- - Max. Turning diameter x in automatic 340 mm
- - Max. Latheable length z in auto 920 mm
- Qualitative Machine Benefits:
- - Tailstock does not have but the second spindle has torque control and can perform the torque control and can perform tailstock function.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
