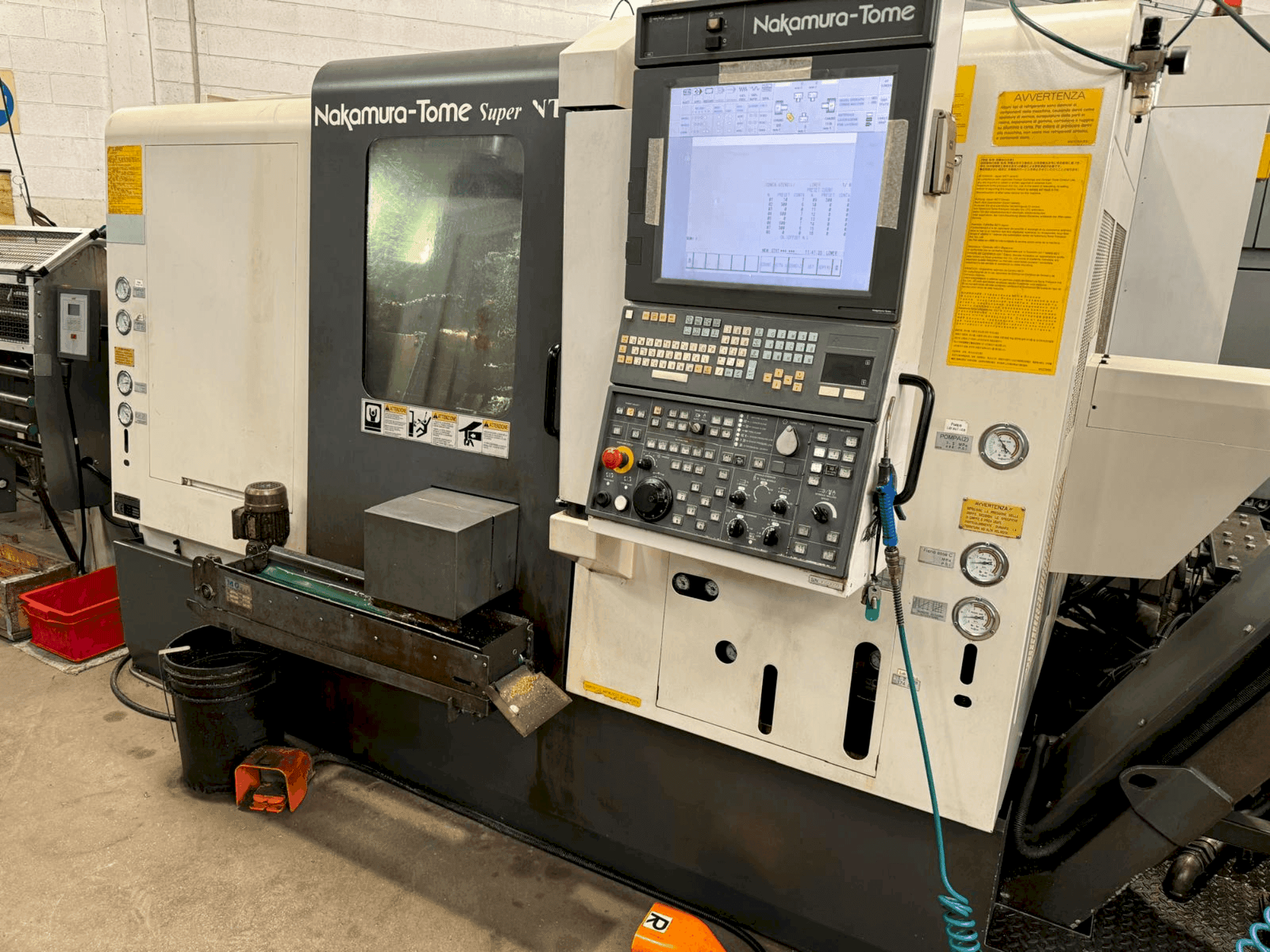

Front view of NAKAMURA Super NTY3-100  machine

NAKAMURA - Super NTY3-100IT-TUR-NAK-2011-00001

139,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis NAKAMURA Super NTY3-100 was manufactured in 2011. A robust horizontal turning machine featuring a Fanuc 31i-B control with a 19” touch monitor, it offers a spindle bar diameter of 65 mm and a sub-spindle diameter of 52 mm. It supports a maximum turning length of 590 mm and diameter of 175 mm. Equipped with three turrets, each holding 12 driven tools, and high spindle speeds up to 4,500 RPM. A great opportunity to buy this NAKAMURA Super NTY3-100 horizontal turning machine. Contact us for more information.

Overview

  • brand: NAKAMURA
  • year: 2011
  • MODEL: Super NTY3-100
  • application type: Turning
  • Location: Italy
  • machine type: Horizontal Turning Machine
  • availability: Visible Functional Until December 2024
  • control unit brand: FANUC

Technical Information - NAKAMURA Super NTY3-100

General Data

  • Measurements width: 1980 mm
  • Measurements depth: 2800 mm
  • Measurements height: 1940 mm

Control Unit

  • Model: 31i-B Monitor Touch 19”
  • Brand: FANUC

Main drive

  • Spindle speed range: 4500 RPM (Main Spindle), 6000 RPM (Sub-Spindle) 1/MIN
  • Spindle motor power: 11.5 kW (Main Spindle), 11.5 kW (Sub-Spindle)
  • Spindle bore: 65 mm (Main Spindle), 52 mm (Sub-Spindle)
  • Tool taper: ASA6” (Main Spindle), ASA5” (Sub-Spindle)

Movement

  • X-AXIS Movement: 135 MM
  • Y-AXIS Movement: 35 MM
  • Z-AXIS Movement: 245/245/578 MM

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - Kit Tools
    • - Kit Spindle
    • - Bar Load

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max workpiece length: 590 mm / max workpiece diameter: 175 mm
        • - High pressure pump 70 bar
        • - Cooling oil
        • - Fire-fighting system
        • - Part catcher with belt
        • - Machine has always operated with full oil

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
