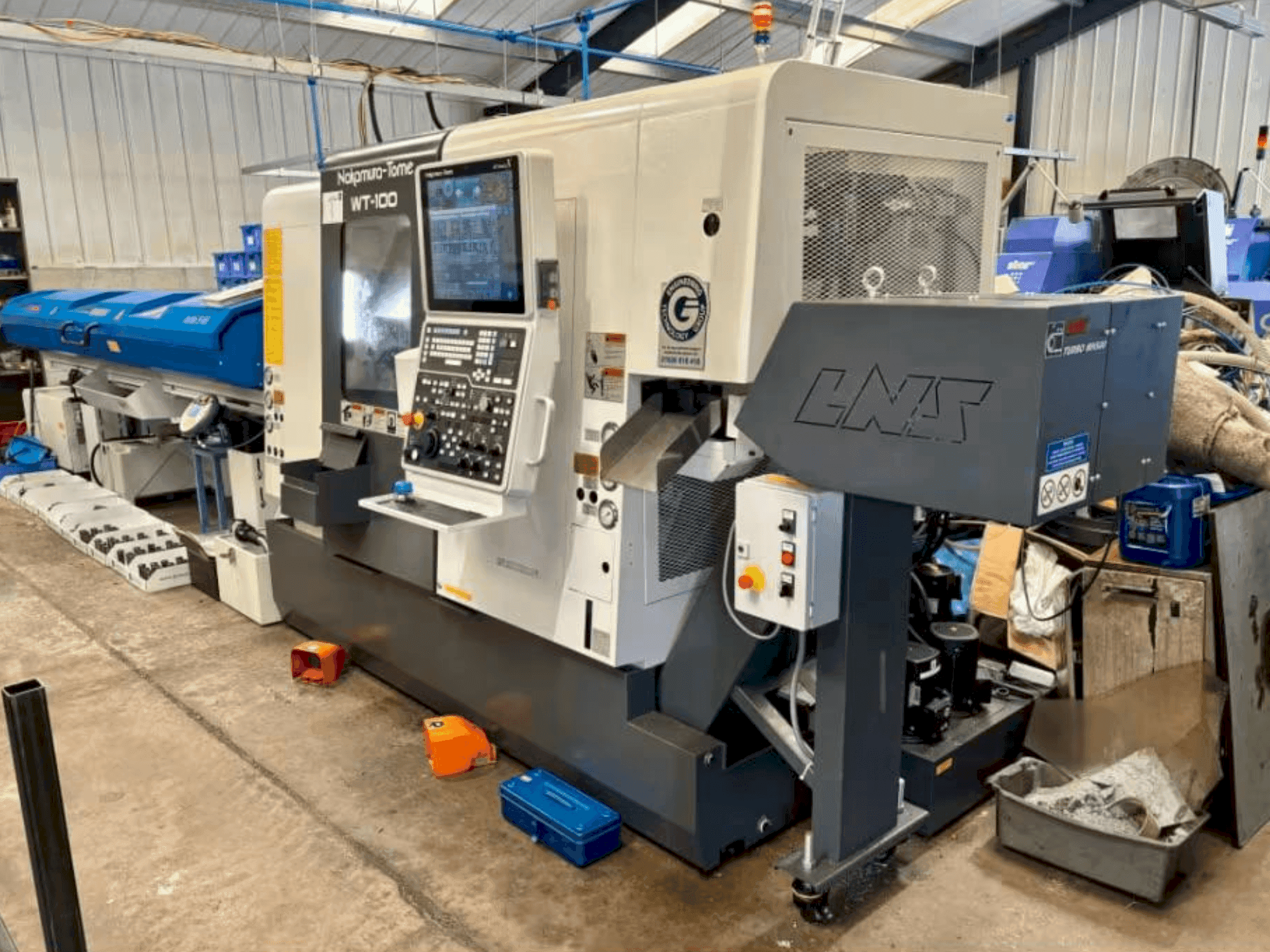

This 6-axis NAKAMURA WT-100 was manufactured in 2019 and features dual spindles with a speed of 6,000 rpm and a motor power of 11/7.5 kW each. It boasts a bar capacity of Ø42 mm and a maximum turning diameter of Ø190 mm. The machine includes a dodecagonal drum turret with 24 indexing positions and rapid traverse rates up to 40 m/min. If you are looking to get high-quality turning capabilities, consider the NAKAMURA WT-100 machine we have for sale. Contact us for more information.
Overview
- brand: NAKAMURA
- year: 2019
- MODEL: WT-100
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
Technical Information - NAKAMURA WT-100
Movement
- Number of Axes: 6
- Y-axis Travel: 31 mm
Technical Specification
- Spindle Speed: 6000 RPM
Additional Information
Main spindle:
Spindle nose: A2-5
Through bore: Ø56 mm
Sub spindle:
Speed: 6,000 rpm
Spindle nose: A2-5
Through bore: Ø56 mm
Distance between spindle noses: 735–210 mm
Bar capacity (main/sub): Ø42 mm
Turrets:
Type: Dodecagonal drum (12 stations)
Indexing positions: 24
Standard turning diameter: Ø170 mm
Maximum turning diameter: Ø190 mm
Maximum turning length: 503 mm
Tooling:
Collet chucks: Hardinge A2-5 65DL
Turning tool shank: 20 × 20 mm
Boring bar diameter: Ø25 mm
Driven tooling speed: 6,000 rpm (7.1 / 2.2 kW motor)
Axis travels:
X1 / X2: 135 mm
Z1 / Z2: 503 mm
C-axis: 0.001° increment
Rapid traverse rates:
X1 / X2: 16 m/min
Z1 / Z2: 40 m/min
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
