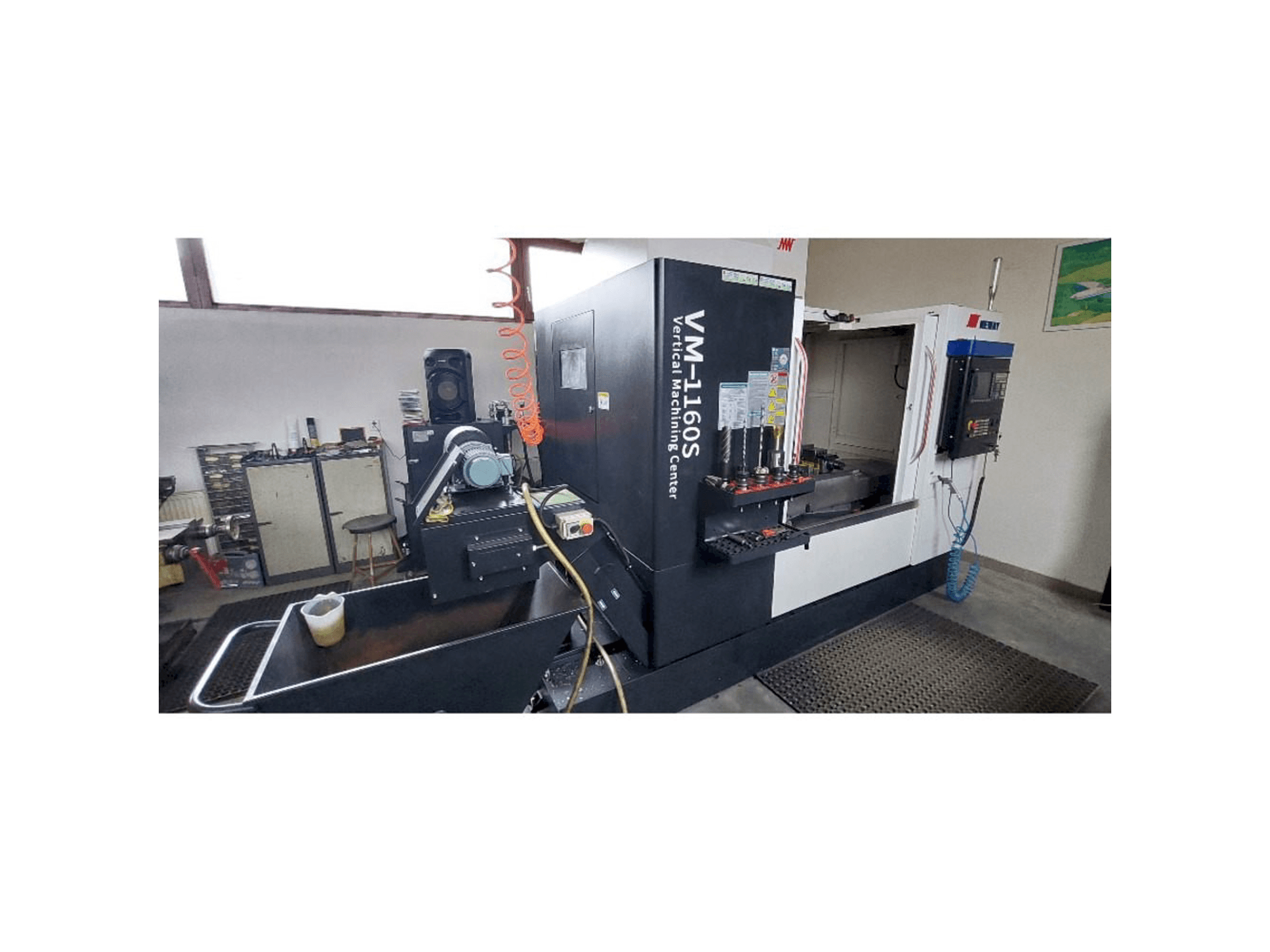

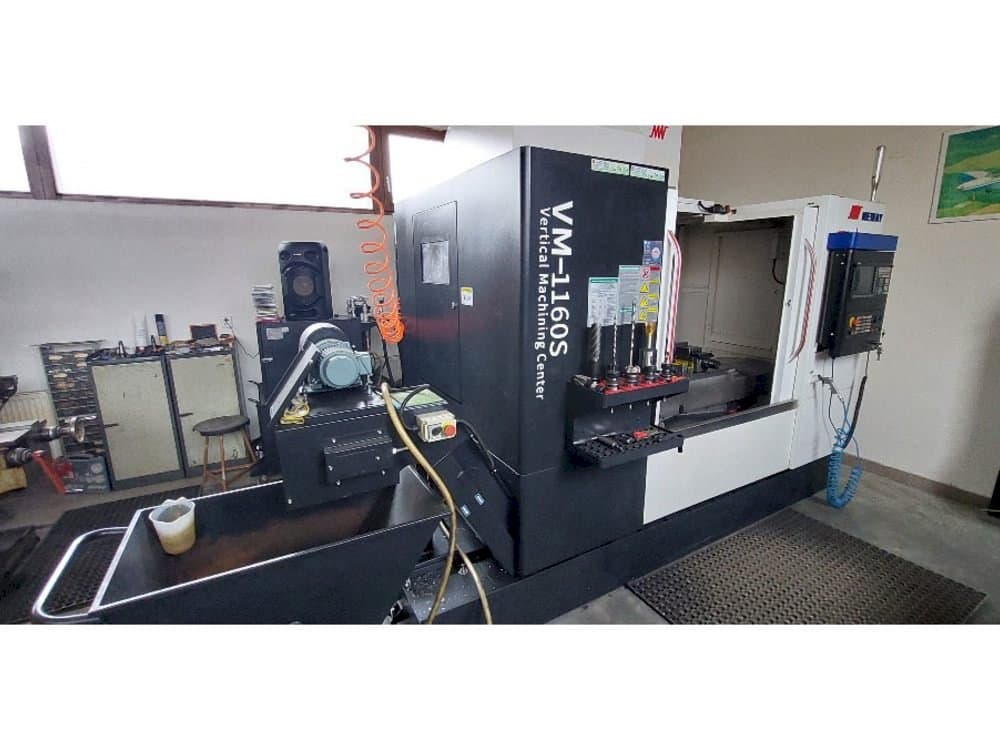

Neway VM 1160 Vertical Machining center

This Neway VM 1160 Vertical Machining center was manufactured in the year 2021. It is equipped with a Siemens 828D control unit and has 3 axis. The machine has a spindle speed of 10000 rpm, is in excellent condition and only used of 6 months.

Overview

brand: Neway
year: 2021
MODEL: VM 1160
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold

Technical Information - Neway VM 1160

General Data

Measurements width: 2820 mm
Measurements depth: 2500 mm
Measurements height: 2830 mm
Machine weight: 7000 kg

Controller

Brand: Siemens
Model: 828D

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 580 mm

Workpiece

Workpiece weight: 750 kg

Table

Outer length: 1100 mm
Outer width: 600 mm

Tools

Slots in storage: 24
Max weight: 8 kg
Max tool diameter: 78 mm
Max tool length: 300 mm
Type of tool holder: BT40

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- 2 pcs hydraulic clamps

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance spindle-table 150-710 mm
- - Rapid feedrate (x/y/z) 36/36/30 m/min.
- - Spindle motor power 10 kw, 140 nm
- - High pressure through spindle cooling 20 bar
- - Remote hand wheel, usb port
- - Washgun, airgun
- - Blum probes tc52+zx speed
Qualitative Machine Benefits:
- - Very good condition, only used for 6 months!
- - Warranty until 12/2023

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
