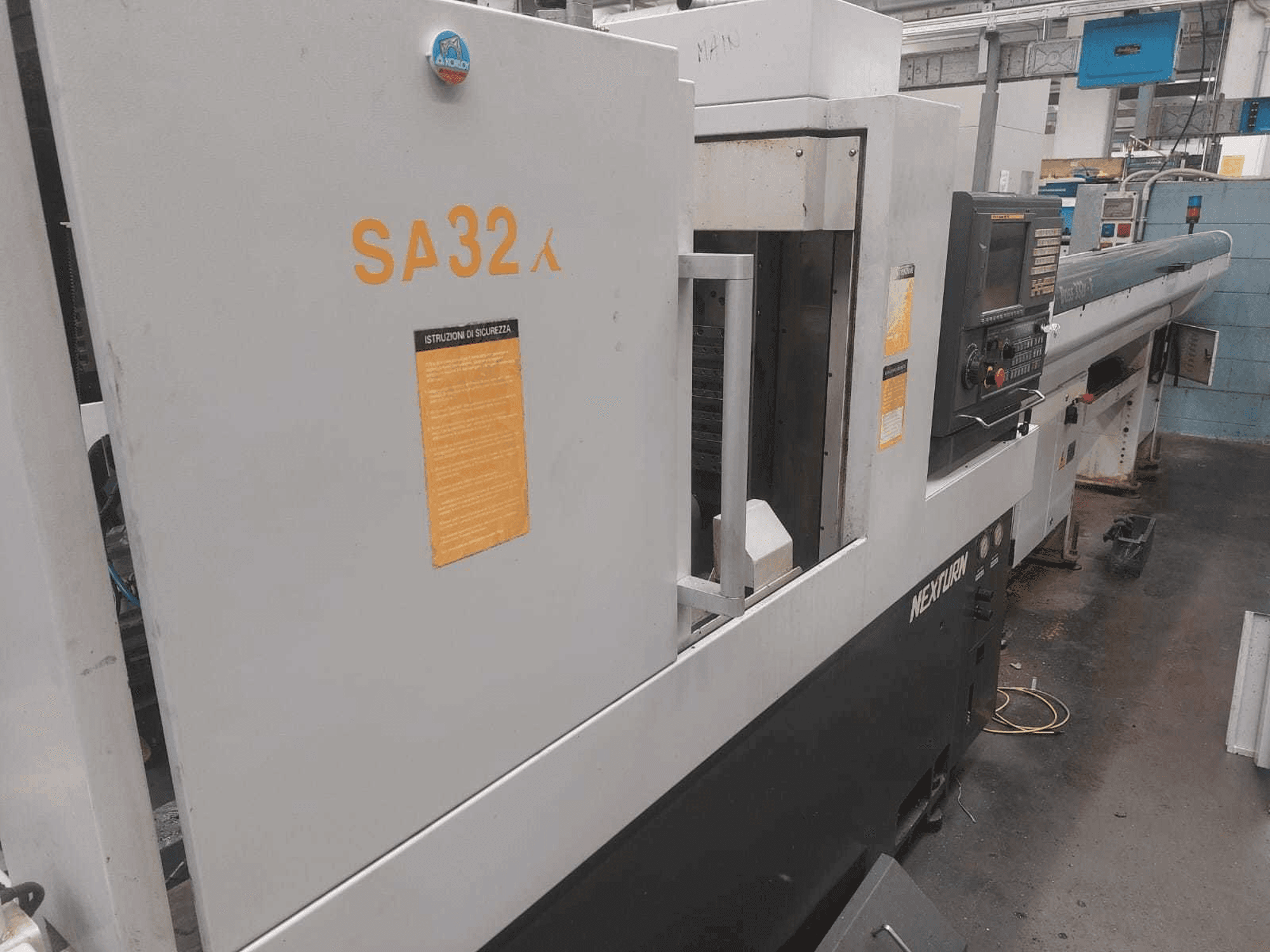

Left side view of Nexturn SA 32X machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Nexturn SA 32X

Photo Gallery

Nexturn - SA 32XIT-TUR-NEX-2008-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Nexturn SA 32X Swiss Type Turning machine

This Nexturn SA 32X Swiss Type Turning machine was manufactured in the year 2008. It is equipped with a Fanuc Series 18i-TB control unit and has 8 controlled axis. The machine has a spindle speed of 8000 rpm.

Overview

brand: Nexturn
year: 2008
MODEL: SA 32X
application type: Turning
Location: Italy
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - Nexturn SA 32X

Control Unit

Control Brand: FANUC
Control Model: Series 18i-tb

Dimensions

Machine Depth: 1460 mm
Machine Height: 1750 mm
Machine Weight: 3500 kg

Movement

Number of Axes: 8

Technical Specification

Spindle Speed: 8000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Total number of teams 24(26)
External diameter/vertical live tools/internal diameter tools od 5/cross2-4/id 5
Pre-face sets, take-back sets 7,
Tool size 16x120mm, fast idle motion 24mm/min
Controlled axis 8
Main mirror positioning cs+1/1000゜, opposite mirror positioning cs+1/1000゜
Main mirror motor 7. 5/5. 5kw, counter mirror motor 3. 7/2. 2kw, vertical live tool engine 1. 0kw, back live teams engine 1. 0kw, cooling pump motor 0. 9kw, central lubrication pump motor 0. 04kw
Cooling tank capacity 195l
Center height 1000mm

Technical Machine Benefits

Max. Bar turning diameter. (mm) 32mm
Max. Turning length (mm) 70mm
Max. Main mirror drilling/guiding 12mm/m10
Max. Counter mirror mounting diameter 26mm
Max. Back tools drilling/tapping 10mm/m8
Max. Drilling/tapping vertical tools 10mm/m8
Max. Modular live tool disc-mill diameter
Max. Main mirror revolution 8,000rpm
Max. Opposite mirror revolution 8,000rpm
Max. Era of vertical sets 6,000rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
