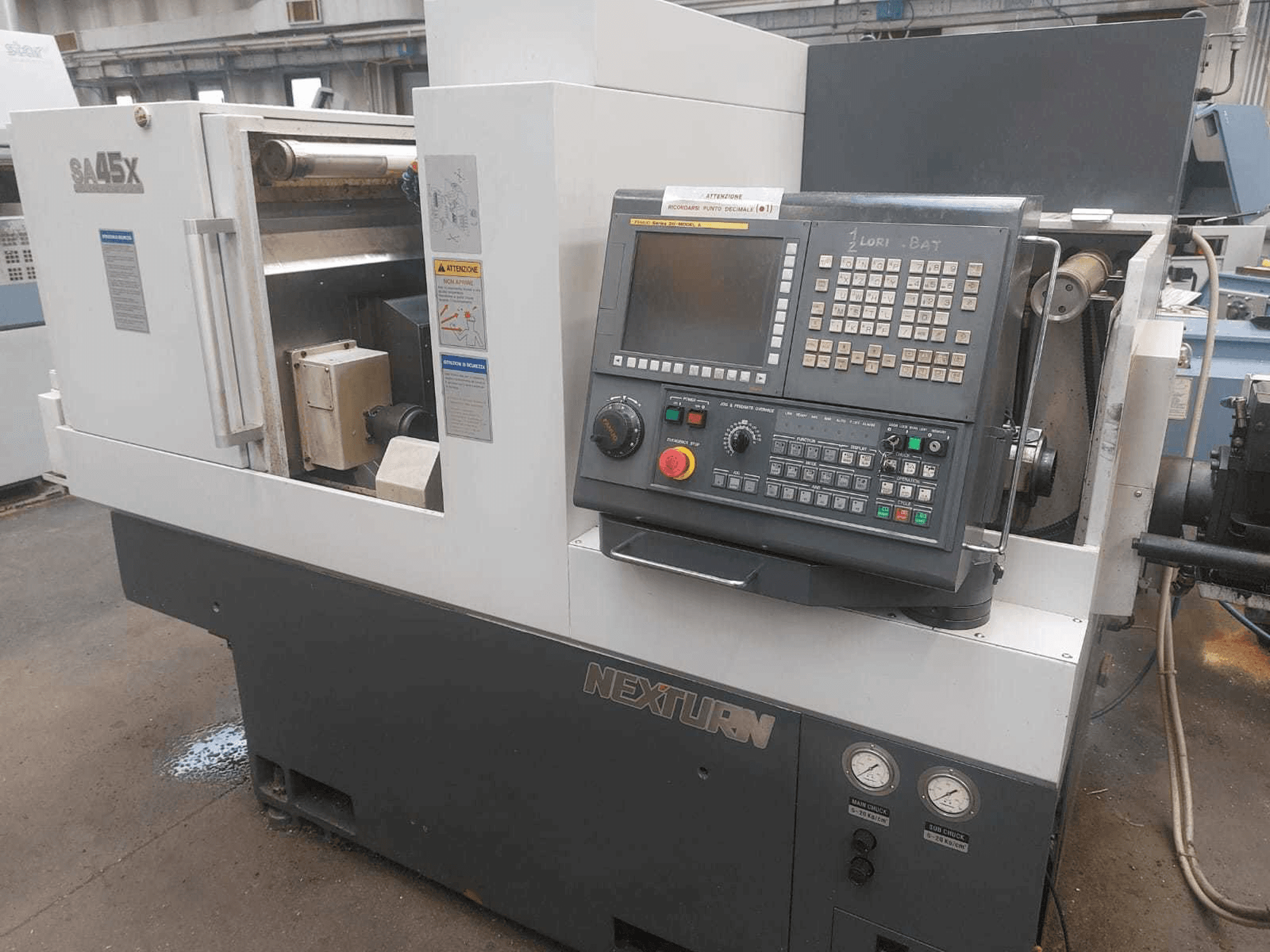

Front view of Nexturn SA 45X  machine

Nexturn SA 45X

Nexturn - SA 45X

2013

68,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Nexturn SA 45X Swiss Type Turning machine was built in 2013. It is equipped with a Fanuc Series 31i-modelA control unit and has 6 linear axes. The machine has a spindle speed of 6000 rpm. It includes a Bar feeder Iemca Boss 545.

Overview

  • brand: Nexturn
  • year: 2013
  • MODEL: SA 45X
  • application type: Turning
  • Location: Italy
  • machine type: Swiss Type Turning
  • availability: Immediately
  • control unit brand: Fanuc
  • GINDUMAC ID: IT-TUR-NEX-2013-00002

Technical Information

General Data

  • Measurements width: 2200 mm
  • Measurements depth: 1460 mm
  • Measurements height: 1750 mm
  • Machine weight: 3800 kg

Control Unit

  • Brand: Fanuc
  • Model: Series 31i-modelA

Main drive

  • Spindle speed range: 6000 1/MIN
  • Spindle motor power: 11 Kw
  • Number of axis: 6

Movement

  • X-AXIS Movement: 135 mm
  • Y-AXIS Movement: 260 mm

    Additional Equipment

    • - Bar feeder Iemca Boss 545

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Main spindle bar diameter 45 mm
        • - Sliding headstock travel (z1) 80 mm
        • - Fixed sliding headstock yes
        • - Number of linear axes 6
        • - Number of fixed tools tool holder plate 10
        • - Number of driven tools tool holder plate 5
        • - High coolant pressure yes
        • - Sub spindle rpm 6000, bar diameter 45 mm, x-axis travel sub spindle 180 mm, z-axis travel sub spindle 228 mm, number of back driven tool posts 4, y-axis travel 220
        • - Coolant used whole oil
        • - Chip conveyor hinged belt

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
