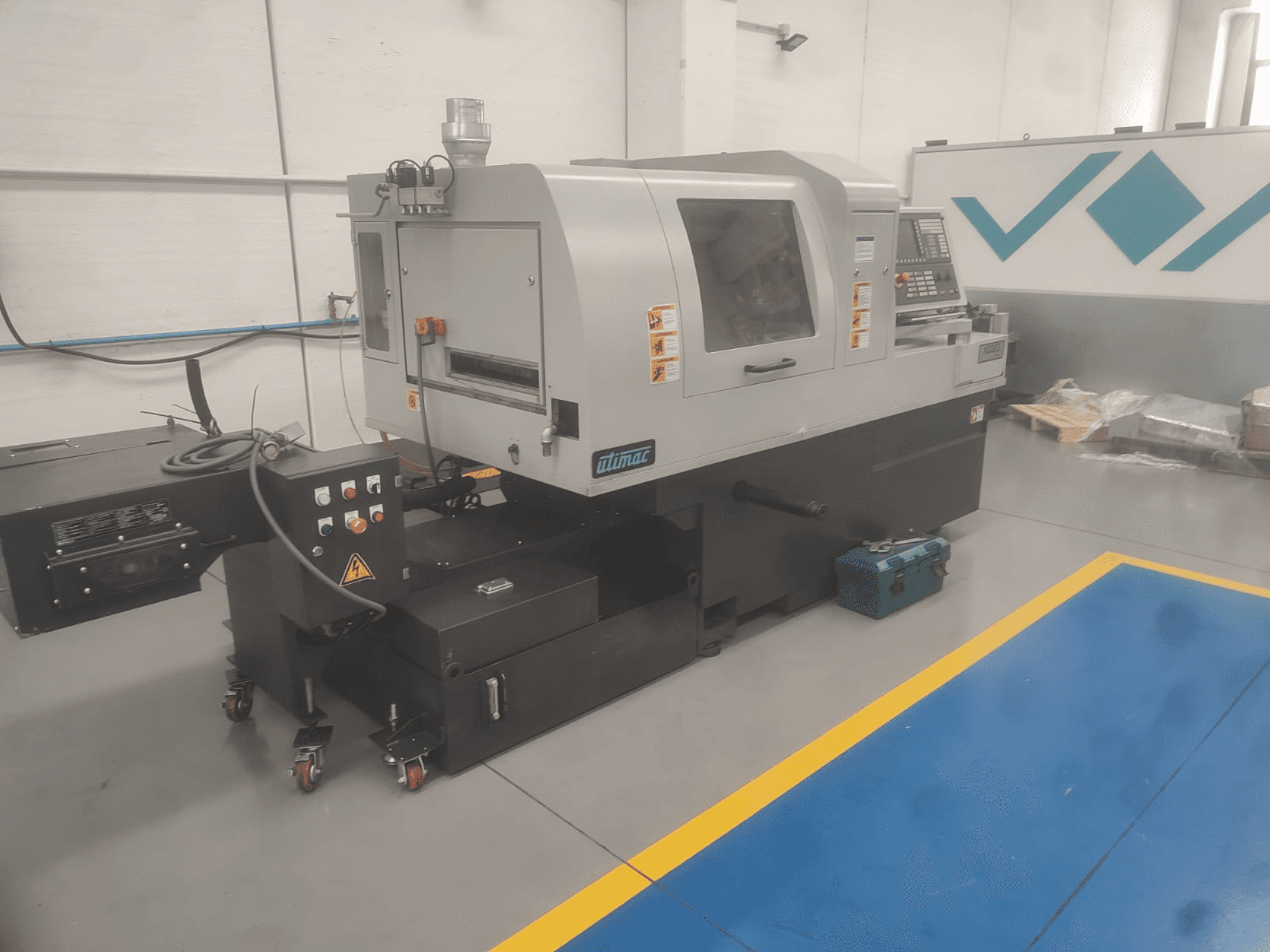

UTIMAC ISOLA XD 38 II Swiss type turning machine, front view, featuring control panel and wheeled base for mobility.
UTIMAC ISOLA XD 38 II Swiss type turning machine, front view, featuring control panel and wheeled base for mobility.

UTIMAC - ISOLA XD 38 II Siemens IT-TUR-UTI-2016-00001

94,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 8-axis UTIMAC ISOLA XD 38 II Siemens was manufactured in 2016. It features a maximum bar capacity of Ø38 mm and a spindle speed of 8,000 rpm. The machine includes a counter spindle with a speed of 7,000 rpm and a rapid traverse of 32 m/min. If you are looking to get high-quality turning capabilities, consider the UTIMAC ISOLA XD 38 II Siemens swiss type turning machine we have for sale. Contact us for further details.

Overview

  • brand: UTIMAC
  • year: 2016
  • MODEL: ISOLA XD 38 II Siemens
  • application type: Turning
  • Location: Italy
  • machine type: Swiss Type Turning Machine

Technical Information - UTIMAC ISOLA XD 38 II Siemens

Dimensions

  • Machine Height: 1745 mm
  • Machine Length: 3020 mm
  • Machine Weight: 3900 kg
  • Machine Width: 1390 mm

Movement

  • Number of Axes: 8

Technical Specification

  • Counter Spindle: Yes
  • Driven Tools: Yes
  • Max. Bar Diameter: 38 mm
  • Spindle Power: 11 kW
  • Spindle Speed: 8000 RPM

Additional Information

  • Main spindle:

    • Max. bar capacity: 38 mm (42 mm optional)

    • Stroke (versions): H = 320 mm; N = 90 mm; NH = 90 / 160 mm

    • Rapid traverse: 32 m/min

  • Counter spindle:

    • Max. bar capacity: 38 mm

    • Stroke: 280 mm

    • Speed: 7,000 rpm

    • Motor power: 11 kW

  • Vertical tool plate axes X1–Y1:

    • Turning tools: 5 (16x16)

    • Standard rotating tools: 5

    • Rotating tools for B-axis: 4

    • Fixed spindle stations: 5

    • Motorized tool power: 2.6 kW

    • Motorized tool speed: 6,000 rpm

    • Rapid traverse: 32 m/min

  • B-axis:

    • Angular adjustment: 145° (+90° / -55°)

    • Number of tools: 6 (3 ER16 + 3 ER11)

    • Motorized tool speed: 6,000 rpm

    • Motor power: 1.9 kW

  • HY2 version:

    • Tool stations: 8 (4 fixed + 4 motorized)

  • Coolant tank capacity: 230 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
