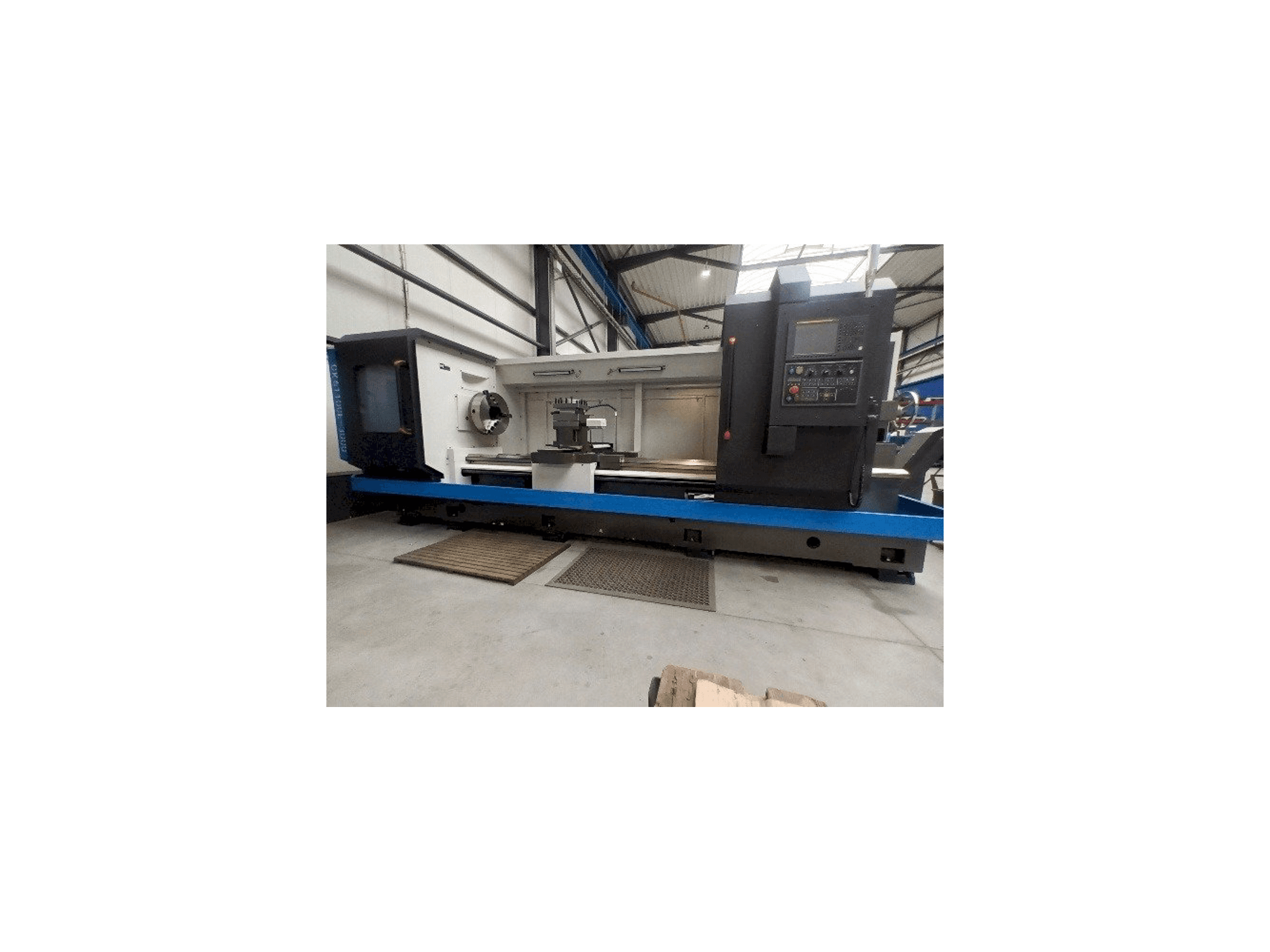

Front view of Ningbo Oturn CK61100E-3000  machine

Ningbo Oturn - CK61100E-3000CZ-TUR-NIN-2023-00001

165,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

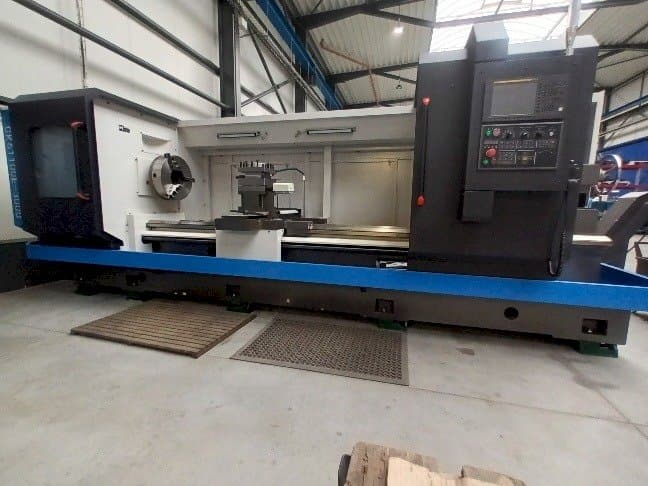

This Ningbo Oturn CK61100E-3000 Lathe was manufactured in the year 2023. It is equipped with a Fanuc Oi-FT plus control unit and has 2 axis. The machine has a spindle speed of 25-850 rpm and spindle torque of 25-100 rpm 1095 Nm, 70-250 rpm 770Nm, 220-850rpm 500Nm.

Overview

  • brand: Ningbo Oturn
  • year: 2023
  • MODEL: CK61100E-3000
  • application type: Turning
  • Location: Czech Republic
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: Fanuc

Technical Information - Ningbo Oturn CK61100E-3000

General Data

  • Measurements width: 5450 mm
  • Measurements depth: 2000 mm
  • Measurements height: 2000 mm
  • Machine weight: 7000 kg

Control Unit

  • Brand: Fanuc
  • Model: Oi-FT plus

Main drive

  • Number of spindles: 1
  • Spindle speed range: 25-850 1/MIN
  • Number of axis: 2

Media

  • Main electronic connection: 380 V

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Spindle with gearbox
      • - Swing over cross slide 650 mm
      • - Maximum cutting diameter 1000 mm
      • - Maximum cutting length 2850 mm
      • - Spinlde through hole 105 mm
      • - Spindle motor power 15kw
      • - No. Of tool posts 4
      • - 500 mm 3-jaw chuck, 600 mm 4 jaw chuck
      • - Tailstock, rest 350-650 mm
      • - Spindle torque: 25-100 rpm 1095 nm, 70-250 rpm 770nm, 220-850rpm 500nm
    • Qualitative Machine Benefits:
      • - Like new

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
