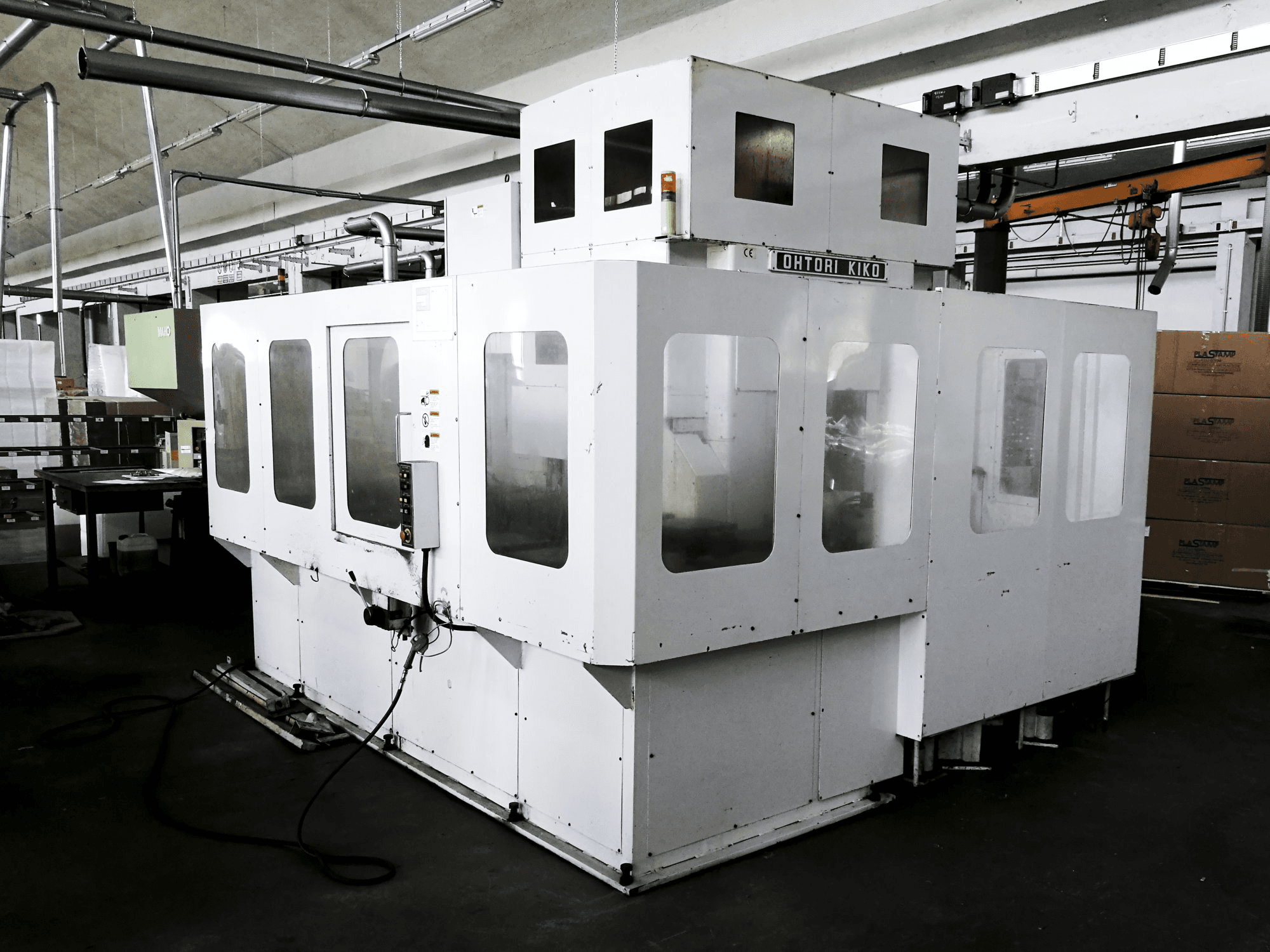

Right view of OHTORI KIKO OSU 545 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

OHTORI KIKO OSU 545

Photo Gallery

OHTORI KIKO - OSU 545IT-MIL-OHT-2000-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
OHTORI KIKO OSU 545 Machining Center

This OHTORI KIKO OSU 545 Machining Center manufactured in the year 2000 has a production history of 70720 working hours. This well-equipped machine comes with a FANUC Series 15-M control unit with remote control, a 14x pallet changer and a 60x tool changer that allows high automation tasks. In the past, this OSU 545 has been working mostly with steel for textile machinery parts.

Overview

brand: OHTORI KIKO
year: 2000
MODEL: OSU 545
production hours: 70720
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - OHTORI KIKO OSU 545

General Data

Measurements width: 3915 mm
Measurements depth: 3835 mm
Measurements height: 3145 mm
Machine weight: 12300 kg

Control Unit

Brand: FANUC
Model: Series 15-M
Remote control: Yes

Main drive

Number of spindles: 1
Spindle speed range: 60-6000 1/min
Tool taper: ISO 40

Movement

X-AXIS Movement: 460 mm
X-AXIS Working Feed: 4000 mm/min
X-AXIS Rapid traverse: 20 m/min
Y-AXIS Movement: 400 mm
Y-AXIS Working Feed: 4000 mm/min
Y-AXIS Rapid traverse: 20 m/min
Z-AXIS Movement: 400 mm
Z-AXIS Working Feed: 4000 mm/min
Z-AXIS Rapid traverse: 16 m/min
A-AXIS Movement: -90° - +120° MM
A-AXIS Working Feed: 6.5 rpm
A-AXIS Rapid traverse: 15 rpm
C-AXIS Movement: 360 ° MM
C-AXIS Working Feed: 10 rpm
C-AXIS Rapid traverse: 25 rpm

Workpiece

Workpiece weight: 80 kg

Table

Outer length: 315 mm
Outer width: 315 mm

Tools

Slots in storage: 180
Max weight: 6 kg
Max tool diameter: 110 mm
Max tool length: 240 mm

Media

Main electronic connection: 200 V / 50 Hz
Power consumption: 46 kVA
Air pressure: 6 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
