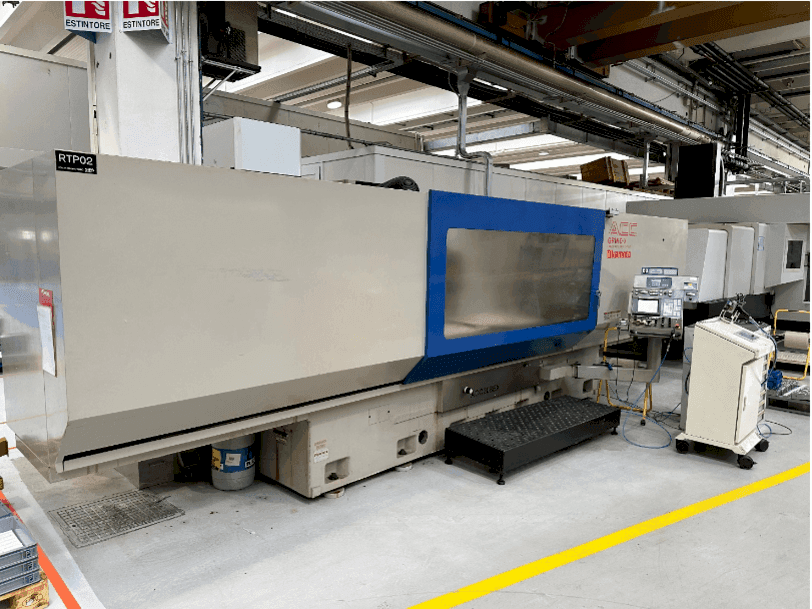

Front view of OKAMOTO ACC 208ex  machine

OKAMOTO ACC 208ex

OKAMOTO - ACC 208ex

2008

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This OKAMOTO ACC 208ex Grinding machine was manufactured in the year 2008. The machine has a spindle speed of 1400 rpm.

Overview

  • brand: OKAMOTO
  • year: 2008
  • MODEL: ACC 208ex
  • application type: Grinding
  • Location: Italy
  • machine type: Grinding machines
  • availability: Sold
  • GINDUMAC ID: IT-GRI-OKA-2008-00001

Technical Information

General Data

  • Measurements width: 5900 mm
  • Measurements depth: 3920 mm
  • Measurements height: 2550 mm
  • Machine weight: 11500 kg

Main drive

  • Spindle speed range: 1400 1/MIN

Table

  • Outer length: 2000 mm
  • Outer width: 800 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Max distance to the table surface under the wheel 400 mm. 685 mm.
      • - Average weight of the vise: 1152 kg
      • - Load capacity of the table (weight of the vice included): 2000 kg
      • - T-slots (width x n. ) 20x3 mm.
      • - Longitudinal advance
      • - Max stroke 2150 mm.
      • - Longitudinal feed speed m/min. 3 – 30
      • - Max stroke 760 mm.
      • - Automatic advance stroke 760 mm.
      • - Rapid feeding speed: 4000mm/min.
    • Qualitative Machine Benefits:
      • - Hand feed per turn (x1/x10/x50) mm. 0. 1/1/5
      • - Graduations from handwheel (x1/x10/x50) mm. 0. 001/0. 01/0. 05
      • - Intermittent feeding: 0. 5 – 40 mm.
      • - Continuous feeding speed:. 0 – 1000 mm/min
      • - Hand feed per revolution:(x1/x10/x10). 0. 01/0. 1/1 mm
      • - Graduations from handwheel : x1/x10/x10). 0. 0001/0. 001/0. 01 mm
      • - Coarse pass depth. 0-0. 5 (16 steps) mm
      • - Fine pass depth. 0-0. 04 mm (11 steps)
      • - Fine grinding tolerance. 0-0. 05 mm (9 steps)
      • - Feeding with air cutting ((coarse/fine) mm. 0-9999. 9, hydraulic oil pump (for the sharpener) kw 0. 2/4, vertical feeding (ac servomotor) kw 0. 9, transversal feed kw 0. 9, 380/400/415. 3p 50hz, 31kva, grinding holder flange with hole dia. 127 mm.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
