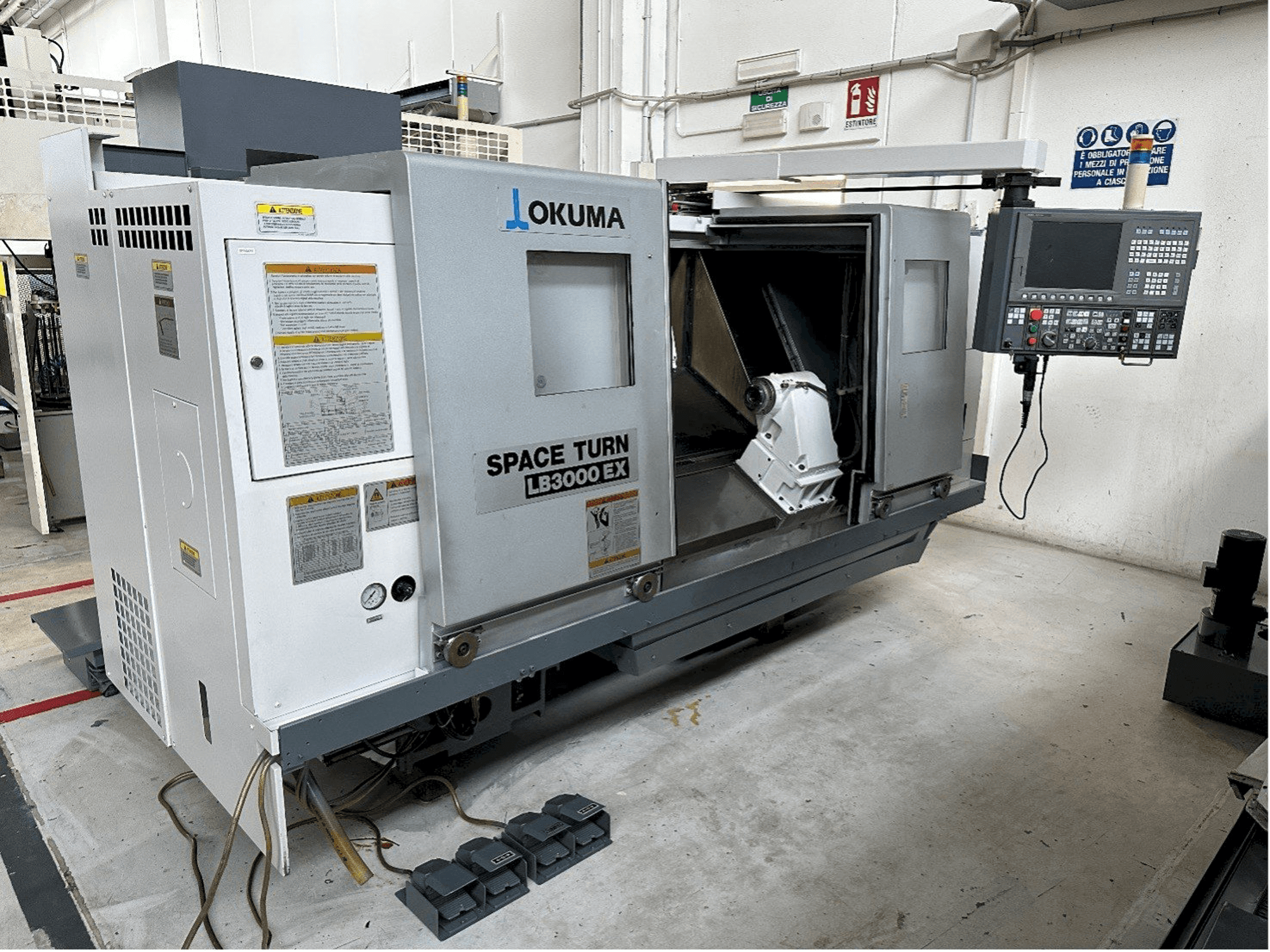

This OKUMA LB 3000 EX Lathe was manufactured in the year 2008 and has 37498 production hours, of which 9646 are spindle hours. It is equipped with an Okuma OSP-P200L control unit. The machine has a spindle speed of 4200 rpm.
- brand: Okuma
- year: 2008
- MODEL: LB 3000 EX
- production hours: 37498
- application type: Turning
- Location: Italy
- machine type: Lathe
- availability: Immediately
- control unit brand: Okuma
- GINDUMAC ID: IT-TUR-OKU-2008-00002
- Measurements width: 3310 mm
- Measurements depth: 1900 mm
- Measurements height: 1970 mm
- Machine weight: 6100 kg
- Brand: Okuma
- Model: OSP-P200L
- Spindle speed range: 4200 1/MIN
- Spindle motor power: 30 KW
- X-AXIS Movement: 260 MM
- Z-AXIS Movement: 1065 MM
- Technical Machine Benefits:
- - Distance between centers 1020 mm.
- - Dia. Max rotating on the guards 580 mm.
- - Dia. Rotary between the centers 470 mm.
- - Dia. Max turning with std. Tools motorized 340 mm
- - Spindle attachment asa-a2
- - Dia. Front bearing 140 mm.
- - Dia. Spindle hole 91 mm.
- - Dia. Useful bar passage (with p/clipper) 80 mm.
- - Continuously variable rpm ranges 2
- - Maximum torque available nm 700
- Qualitative Machine Benefits:
- - Rapid feed for x-z axes m/min. 25-30
- - Motor power x-z axis drive kw bl 2,8/bl 3,5
- - X axis push kgf 780, z axis push kgf 560, automatic doors, ready for robot, i blow air
- - X-z axis activation screws dia. /pitch mm. 30-40/16, x-z axis positioning precision mm. 0,01/100 – 0,015/300
- - Positioning repeatability x-z axis +/- mm. 0,001-0,002, stations p/tools n. 12
- - Okuma original tool attachment, index time (1 position) sec. 0,14, index time (6 position) sec. 0,40
- - Power stations / tools n. 12, maximum torque available nm 40. 4, maximum power available kw 7,1/4,1
- - Rpm range g/min. 45-6000, tailstock slide stroke 1015 mm
- - Attachment cone cm n. 5 (4), maximum admitted push kn 5 (7. 5)
- - Self-centering dia. 250 autoblok, static tools kit, n. 2 p/axial motorized tools, n. 2 p/radial motorized tools
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
