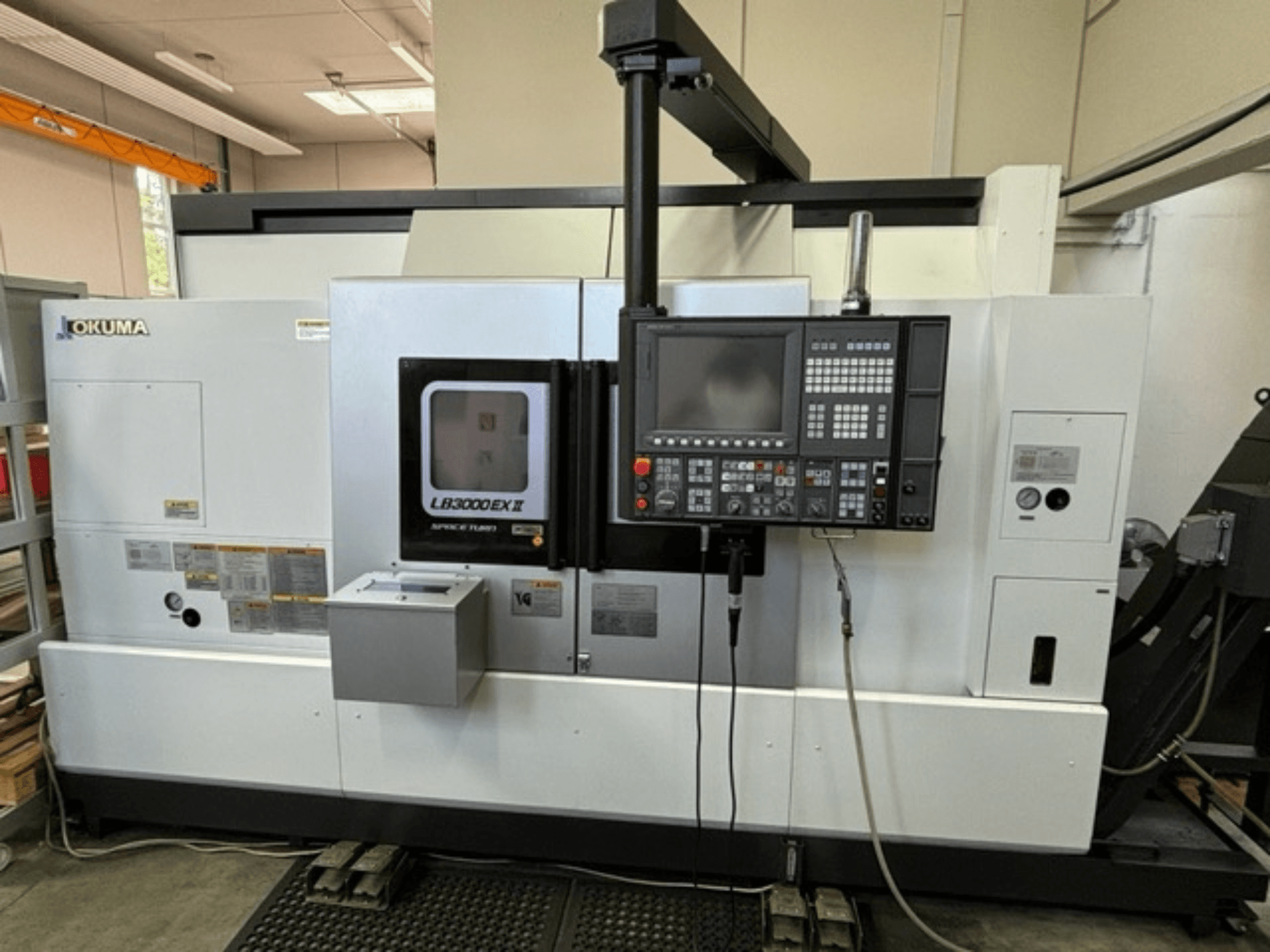

This 4-axis Okuma LB 3000 EXII was manufactured in 2022. It features a spindle speed of 5,000 rpm and a bar capacity of 52 mm. The machine includes a 12-position motorized turret and a Y-axis travel of 120 mm. If you are looking to get high-quality turning capabilities, consider the Okuma LB 3000 EXII horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: Okuma
- year: 2022
- MODEL: LB 3000 EXII
- production hours: 215
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
Technical Information - Okuma LB 3000 EXII
Movement
- Number of Axes: 4
- X-axis Travel: 260 mm
- Y-axis Travel: 120 mm
- Z-axis Travel: 510 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Spindle Power: 22 kW
- Spindle Speed: 5000 RPM
Additional Information
- Control: OSP-P300LA
- Spindle Speed: 5,000 rpm
- Spindle Power: 22 kW
- Spindle Nose: ASA 6" (80 mm bore, without drawbar)
- Bar Capacity: 52 mm (Kitagawa SR1453 cylinder)
- Spindle Orientation: Electric
- Y-Axis Travel: 120 mm
- C-Axis Rotation: 360° (0.001° increments)
- Turret: 12-position radial, motorized
- Turret Motor Speed: 6,000 rpm
- Turret Motor Power: 7.1 kW
- Tailstock: CM5 (500 kgf thrust, rotating center)
- Tool Holders: Eppinger live/static tool holders
- High-Pressure Coolant Pump: 0.8 kW, 6 bar, 20 l/min
- Tool Presetting: Manual
- Programming: Plain text dialog IGF
- Chip Conveyor: Enomoto hinged belt type chip conveyor with external control box
- Voltage: 400 V
- Number of Phases: 3 P
- Frequency: 50 Hz
- Max Power Consumption: 33.1 kVA
- Total Current Consumption: 47.8 A
- Max Motor Current: 154 A
- Control Cabinet Short Circuit Strength: 2.5 kA
- Machine is a Showroom machine
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
