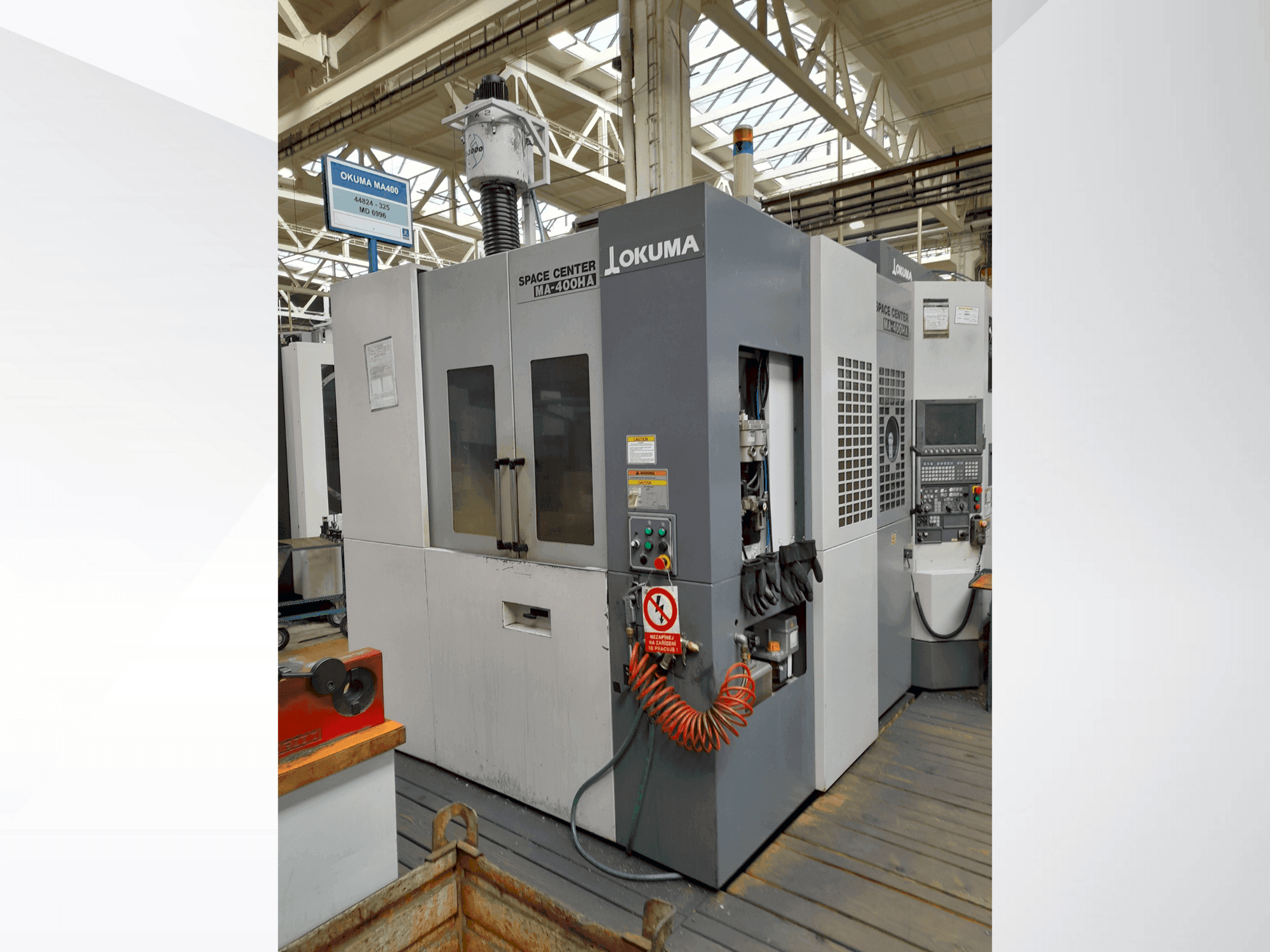

This 4-axis Okuma MA-400HA horizontal machining center was manufactured in 2008. It offers robust construction and precision for demanding machining tasks. If you are looking to get high-quality milling capabilities, consider the Okuma MA-400HA machine we have for sale. Contact us for more information.
Overview
- brand: Okuma
- year: 2008
- MODEL: MA-400HA
- application type: Milling
- Location: Czech Republic
- machine type: Horizontal Machining Centre
- control unit brand: OKUMA
Technical Information - Okuma MA-400HA
Control Unit
- Control Brand: OKUMA
Movement
- Number of Axes: 4
- X-axis Travel: 560 mm
- Y-axis Travel: 560 mm
- Z-axis Travel: 600 mm
Technical Specification
- Spindle Speed: 8000 RPM
Additional Information
Additional equipment
Tool change gearbox has a defect
Machine Benefits
Technical Machine Benefits
Pallet size: 400x400 mm / 2 pallets
B-axis rotary table (indexable)
The following repairs were made:
12/2022 – replacement of the control unit (U2319-0006-004-10)
07/2022 – Replacement of the ATC gearbox
05/2022 – Replacement of the X-axis telescopic cover (H1090-0025-98-2)
Replacement of small parts took place regularly (hoses, sensors, bulbs, etc.).
The condition of the spindle is fine, without major damage. Until the last moment, the machine produced accurately and within tolerance.
Regarding the non-functional tool change gearbox – there is increased clearance in the gearbox, so when changing the tool, when entering the spindle, it is not in the optimal spindle axis. The bearing/cam/ is probably damaged in the gearbox.
Service work is performed by an authorized service for OKUMA machines.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
