➤ Used Okuma MB 5000H For Sale | gindumac.com

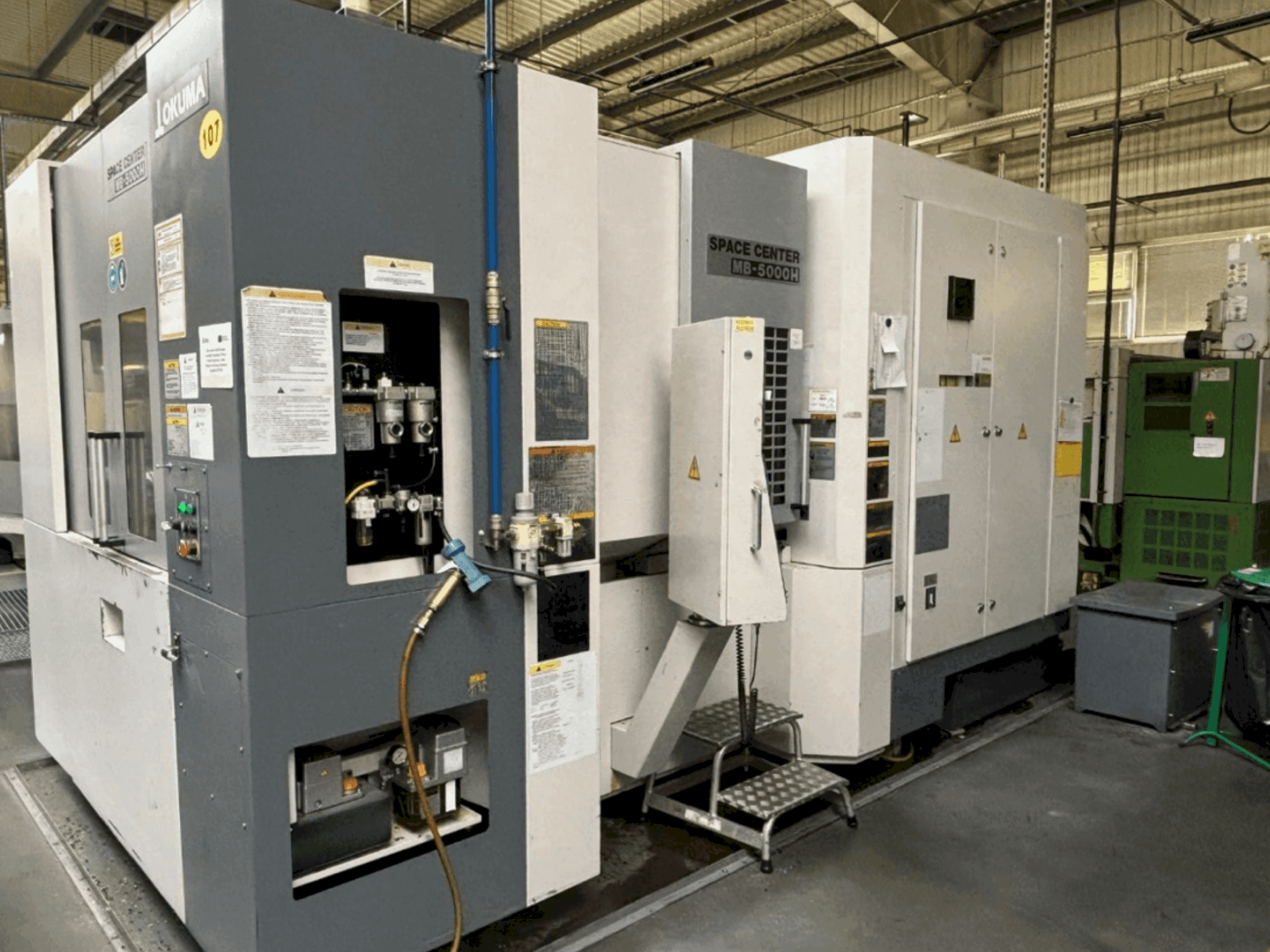

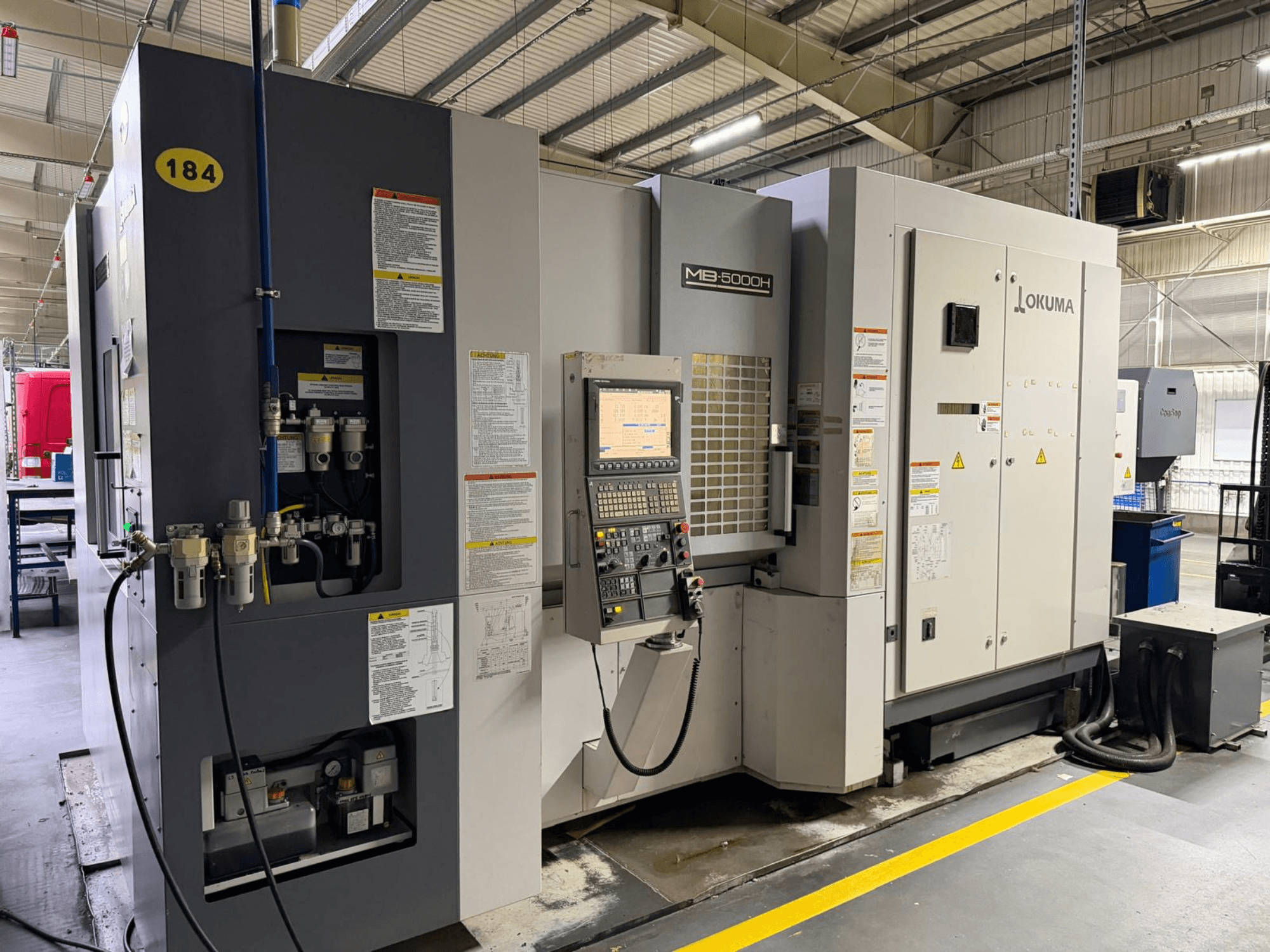

This 4-axis Okuma MB 5000H was manufactured in 2011. It features a robust horizontal machining center design with a 500 × 500 mm pallet size, capable of handling a maximum load of 500 kg. The spindle supports speeds from 50 to 15,000 min⁻¹ with a SK40 taper, enhancing its versatility. Additional features include a chip conveyor, shower system, and provision for a Renishaw probe. If you are looking to get high-quality milling capabilities consider the Okuma MB 5000H machine we have for sale. Contact us for more information.

Overview

brand: Okuma
year: 2011
MODEL: MB 5000H
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre

Technical Information - Okuma MB 5000H

General Data

Measurements width: 4710 mm
Measurements depth: 2700 mm
Measurements height: 2864 mm
Machine weight: 11500 kg

Main drive

Spindle speed range: 50 to 15000 1/MIN
Tool taper: SK40
Number of axis: 4

Movement

X-AXIS Movement: 760 mm
X-AXIS Rapid traverse: 60 m/min
Y-AXIS Movement: 760 mm
Y-AXIS Rapid traverse: 60 m/min
Z-AXIS Movement: 760 mm
Z-AXIS Rapid traverse: 60 m/min

Table

Table load: 500 kg

Tools

Max weight: 10 kg
Max tool diameter: 70 / 150 mm
Max tool length: 300–450 mm

Additional Information

Spindle center to pallet top: 50–810 mm
Spindle nose to pallet center: 135–895 mm

Table/Pallet:
- Pallet size: 500 × 500 mm
- Indexing: 1°
Workpiece capacity:
- Max workpiece: Ø800 × 1,000 mm
Spindle:
- Bearing diameter: Ø70 mm
- Power (10 min / continuous): 26 / 18.5 kW
- Through-spindle cooling: Yes
Feed / rapid rates:
- Cutting feedrate: 1–60,000 mm/min
- Axes feed motor power X/Y/Z: 4.6 kW
- Table indexing motor power: 3.0 kW
Tooling / ATC:
- Tool shank: MAS403 / BT40
- Pull stud: MAS 2
- Magazine capacity: 64 tools
- Tool selection: Random

Floor space: 2,700 × 4,710 mm

Features:
- Shower system: Yes
- Provision for Renishaw probe: Yes
- Presetting at table edge: Yes

Additional equipment

Chip conveyor: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
