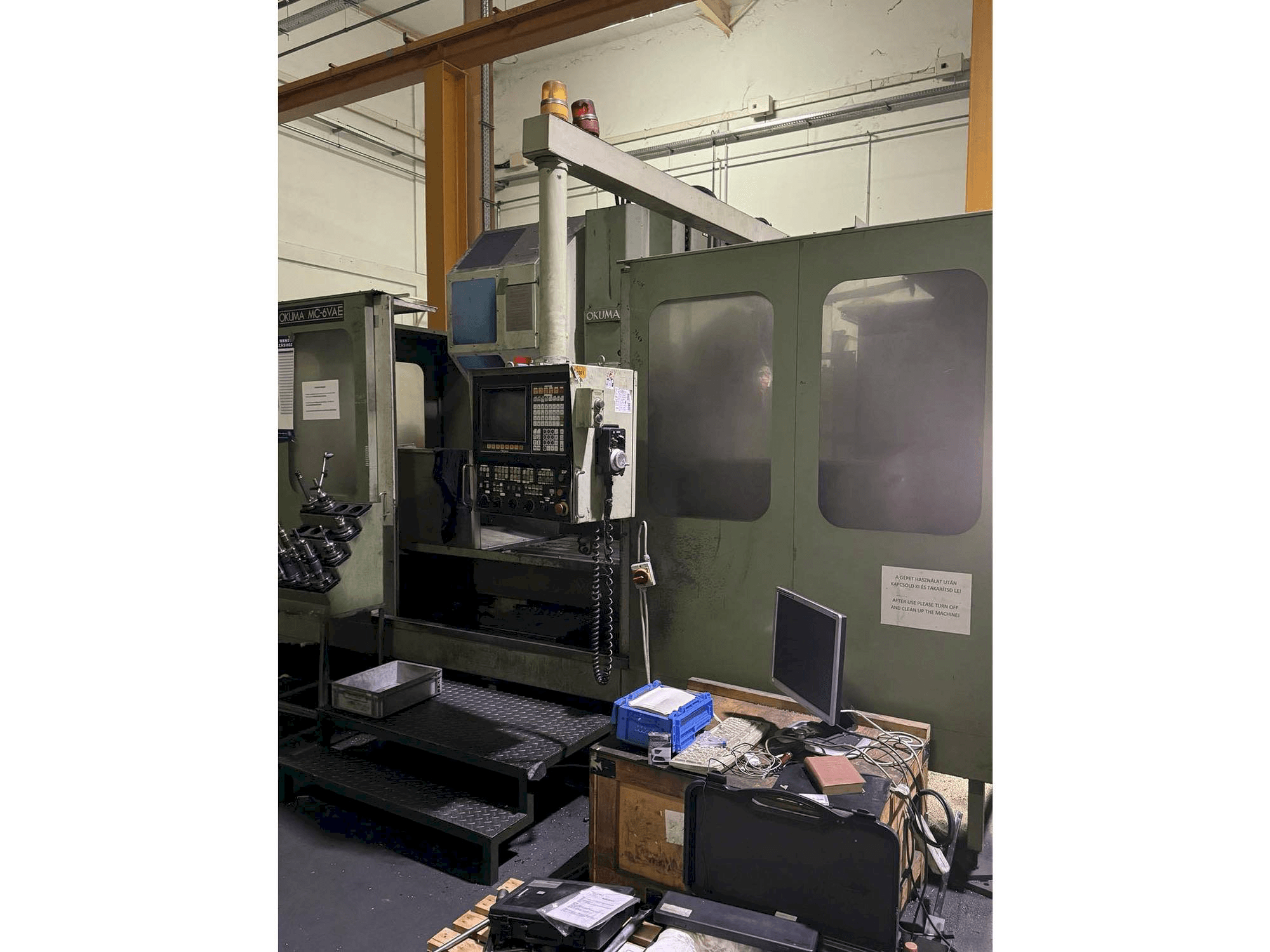

Front view of Okuma MC - 6VAE  machine

Okuma MC - 6VAE

Okuma - MC - 6VAE

1985

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This OKUMA MC - 6VAE Vertical Machining center was made in the year 1985. The machine has a spindle speed of 30-4000 rpm.

Overview

  • brand: Okuma
  • year: 1985
  • MODEL: MC - 6VAE
  • application type: Milling
  • Location: Hungary
  • machine type: Machining centers (vertical)
  • availability: Sold
  • GINDUMAC ID: HU-MIL-OKU-1985-00001

Technical Information

Main drive

  • Spindle speed range: 30-4000 1/MIN
  • Tool taper: BT.50

Movement

  • X-AXIS Movement: 630 mm
  • Y-AXIS Movement: 610 mm
  • Z-AXIS Movement: 230-840 mm

Table

  • Outer length: 1800 mm
  • Outer width: 780 mm
  • Height adjustment: 830 mm
  • Table load: 1500 kg

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Spindle distance for the table: 730 mm
      • - Spindle diameter: 100 mm
      • - X-y axes: 15. 000 mm/sec z axes: 13. 000 mm/sec
      • - Feed rate: 1 - 4. 000 mm/sec
      • - Feed forward
      • - Automatic tool change store: 20 db
      • - Quick march
      • - Usable table size 1. 530 x 630 mm
      • - Free distance between the columns

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
