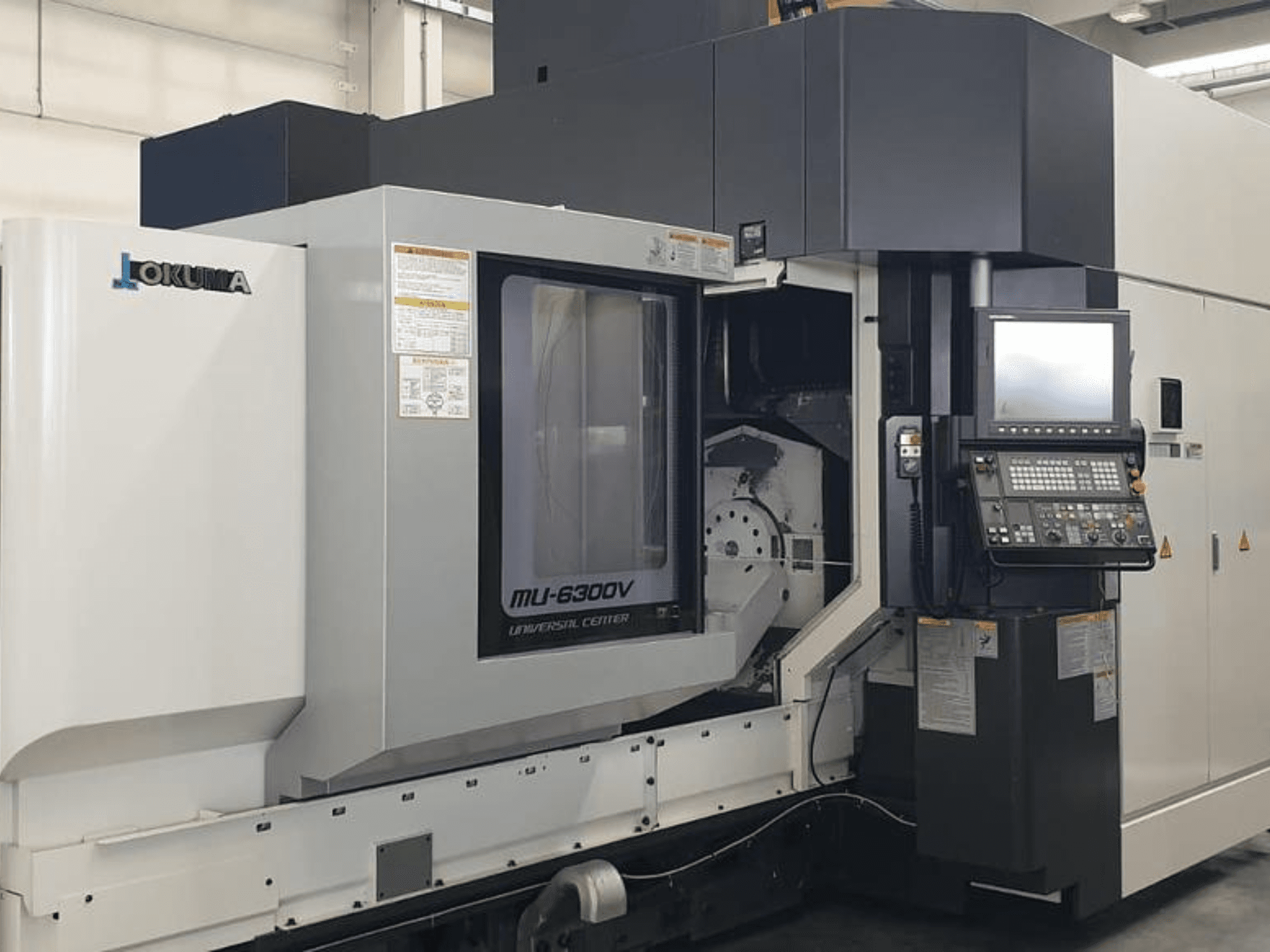

Okuma - MU 6300 VIT-MIL-OKU-2016-00003

• Table/C-axis diameter: 630 mm

• Max machinable dimensions: Ø 830 x 550 mm

• C-axis rotation: 360,000 positions / 360° continuous

• A-axis rotation: +90° to -120°

• Table–spindle distance: 60 – 660 mm

• Rapid feed (X/Y/Z): 50 m/min

• Max working feed: 50,000 mm/min

• Positioning accuracy (X/Y/Z): 0.004 mm (Std JIS)

• Repeatability (X/Y/Z): 0.0015/100 mm (Std JIS)

• Spindle taper: BT50 Big Plus

• Tool magazine: Matrix, 98 positions (expandable to 166)

• Axis feedback: X–Y–Z optical scales

• Operational hours: Power on 25,683 h; Operating 10,364 h; Cutting 9,209 h

• Included control/software options: 5-axis continuous Super-NURBS kit, Center tool programming, Tool length compensation, DNC-DT connection, Tool orientation command

Additional equipment

• Mayfran MT10 chip conveyor

• Renishaw TS27R tool setter

• Renishaw RMP60 workpiece probe

• 5-axis calibration kit

• Shower wash

• Pallet changer ready (preparation)

• Industry 4.0 kit (registered 2026)
