- ➤ Used Wele CV-1060 For Sale | gindumac.com

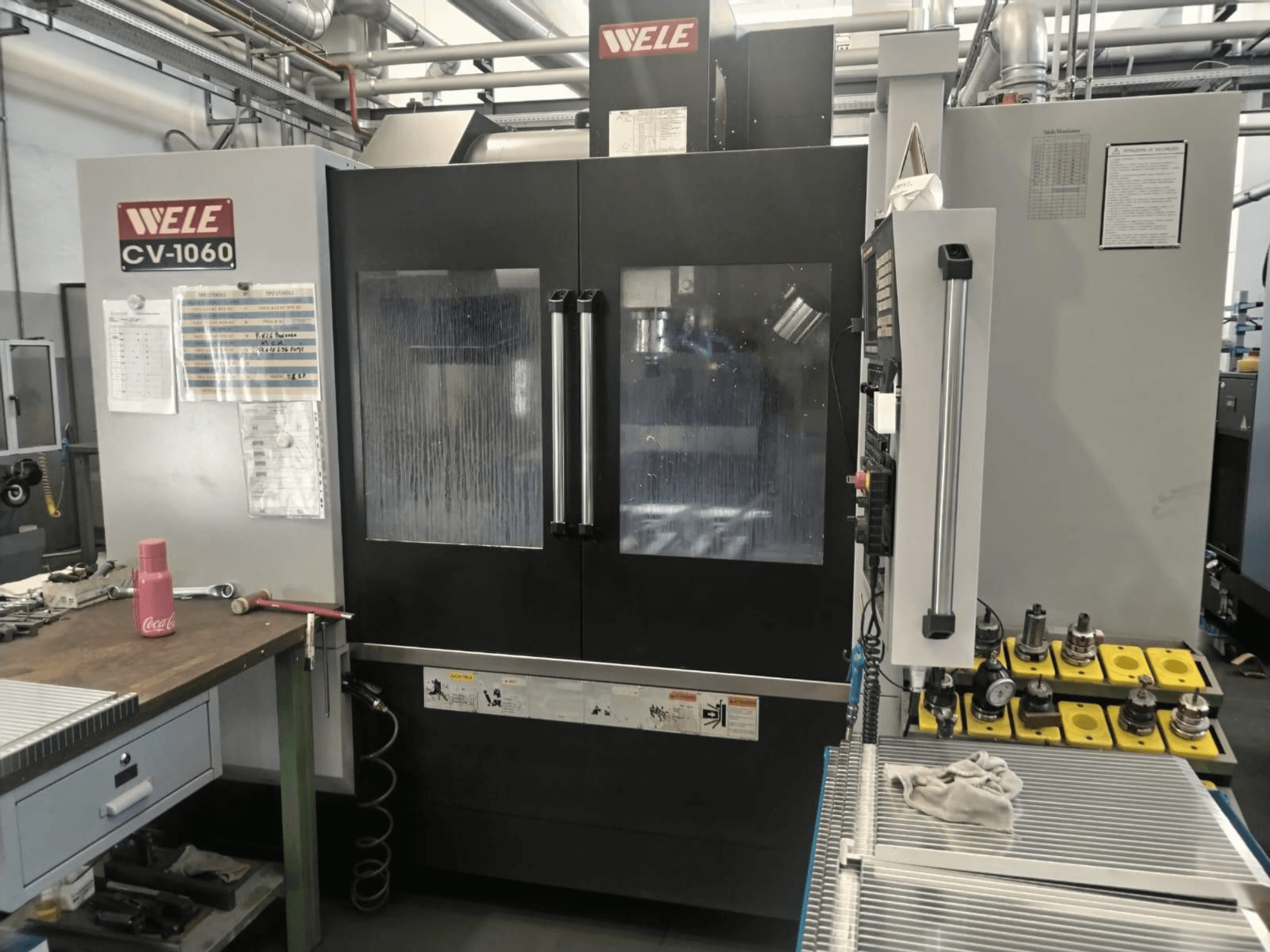

This 3-axis Wele CV-1060 was manufactured in 2016. It features a table size of 1150 x 600 mm and impressive X, Y, and Z-axis travels of 1020 mm, 600 mm, and 600 mm, respectively. The machine is equipped with a 24-tool ATC magazine and a maximum spindle speed of 10,000 rpm. If you are looking to get high-quality machining capabilities, consider the Wele CV-1060 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Wele
- year: 2016
- MODEL: CV-1060
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
Technical Information - Wele CV-1060
Dimensions
- Machine Height: 2230 mm
- Machine Length: 3550 mm
- Machine Weight: 5500 kg
- Machine Width: 2200 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1020 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 600 mm
Technical Specification
- Spindle Power: 11 kW
- Spindle Speed: 10000 RPM
- Taper Size: BT 40
- Tool Stations: 24
Additional Information
Table size: 1150 x 600 mm
Rapid traverse (X/Y/Z): 36,000 / 36,000 / 36,000 mm/min
Electrical: 400 V, 30 kVA, 3-phase, 50/60 Hz, power line 22 mm²
Additional equipment
Chip conveyor: screw type (coclea)
High-pressure coolant through spindle: 15 bar
Tool presetter: automatic contact type
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
