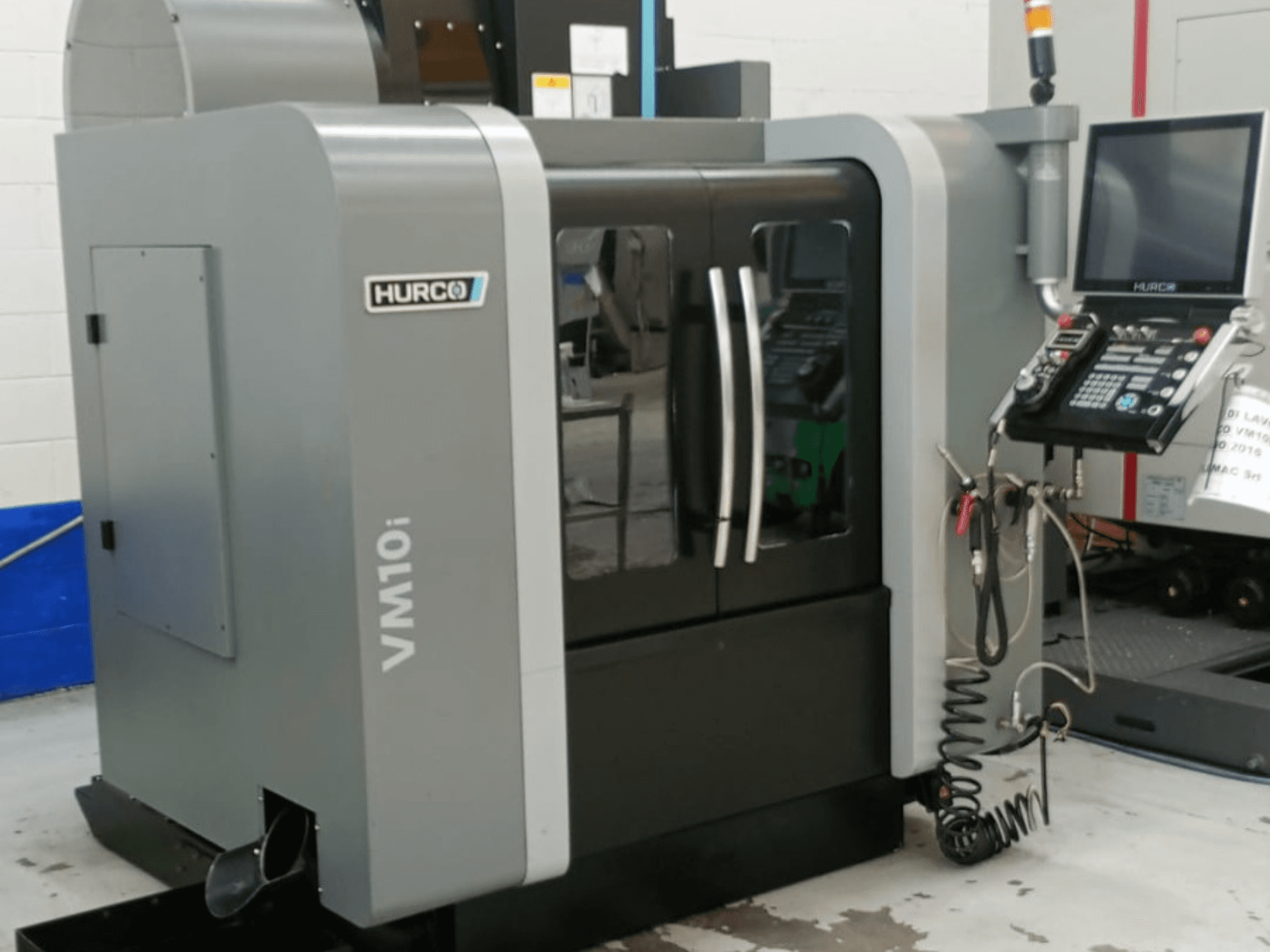

Hurco VM10i vertical machining center in side view, featuring dual doors, control panel, and visible cables for operation.
Hurco VM10i vertical machining center in side view, featuring dual doors, control panel, and visible cables for operation.

Hurco - VM10iIT-MIL-HUR-2016-00003

33,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis Hurco VM10i was manufactured in 2016. It features an X-axis travel of 661 mm, Y-axis travel of 407 mm, and Z-axis travel of 508 mm. The machine includes a robust table size of 762 x 406 mm and a maximum table load of 1,500 kg. If you are looking to get high-quality machining capabilities, consider the Hurco VM10i vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: Hurco
  • year: 2016
  • MODEL: VM10i
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre

Technical Information - Hurco VM10i

Dimensions

  • Table Load: 1500 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 661 mm
  • Y-axis Travel: 407 mm
  • Z-axis Travel: 508 mm

Technical Specification

  • Max. Tool Weight: 7 kg
  • Spindle Power: 11 kW
  • Spindle Speed: 10000 RPM
  • Taper Size: ISO 40
  • Tool Stations: 24

Additional Information

  • CNC Control: HURCO MAX 5 (WinMax software version V10.01.131.12)

  • Table Dimensions: 762 x 406 mm

  • T-Slots: 3 x 18 mm

  • T-Slot Center Distance: 10 mm

  • Spindle Nose to Table Distance: 102 - 610 mm

  • Spindle Torque: 72 Nm

  • Rapid Traverse (X/Y/Z): 28,000 mm/min

  • Tool Magazine Capacity: 24 positions

  • Maximum Tool Diameter (Adjacent Occupied): 80 mm

  • Maximum Tool Diameter (Adjacent Empty): 120 mm

  • Maximum Tool Length: 250 mm

  • Machine Working Hours: 15,420 h 10 min

  • Spindle Hours: 2,727 h 59 min

  • Monitor: 19" Touch Screen

  • Hardware: 128 GB SSD, 4 GB RAM, Dual-Core 2.7 GHz Processor

  • Connectivity: 2x USB 2.0 (console), 2x USB (electrical cabinet), 1x Ethernet LAN

Additional equipment

  • Remote electronic handwheel

  • Auger-type chip conveyor

  • Wash gun (water/air)

  • Status tower lamp

  • Retention knobs

  • Leveling pads


*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
