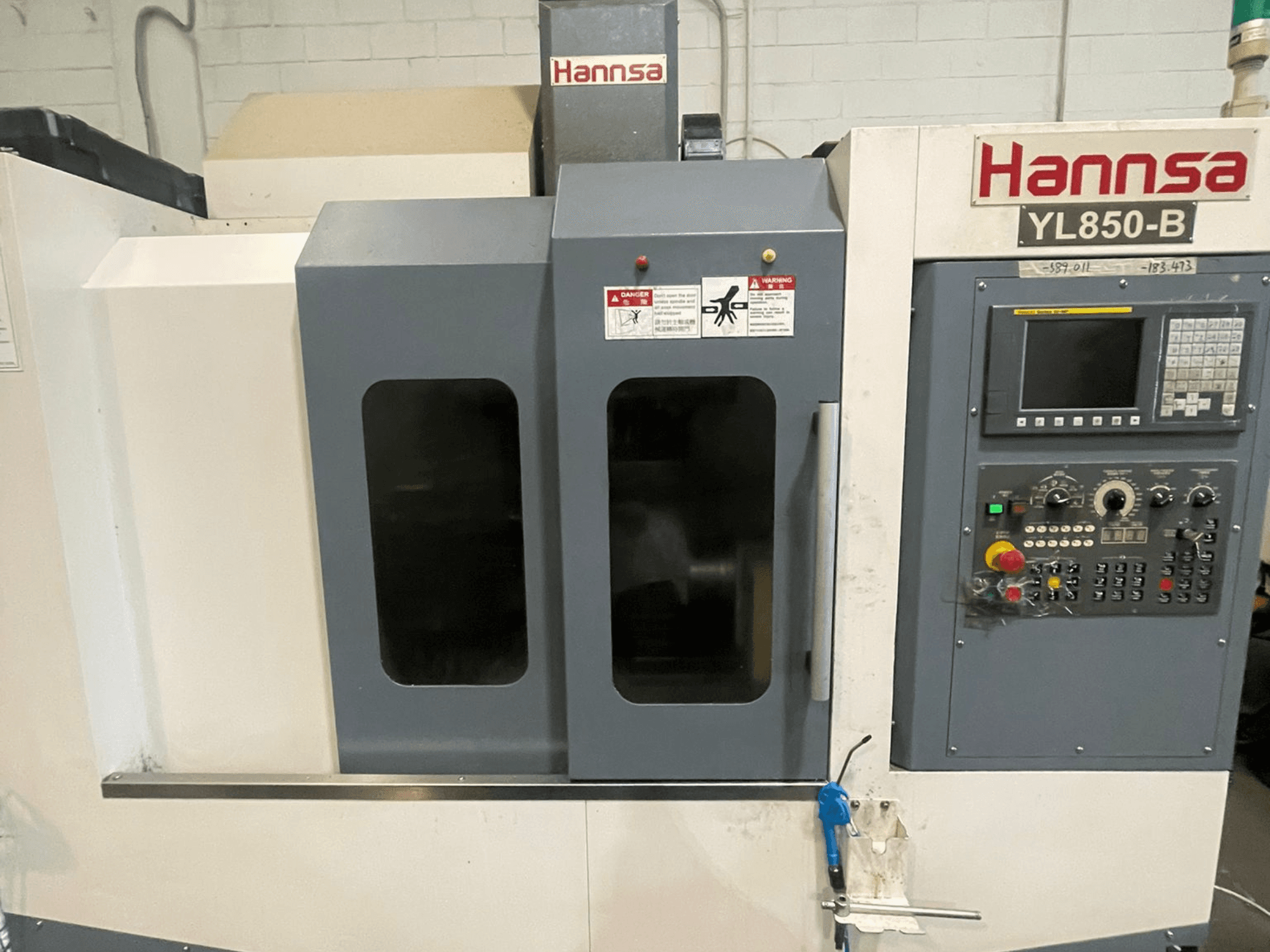

This 4-axis HANNSA YL 850 B was manufactured in 2016. It features an X-axis travel of 850 mm, Y-axis travel of 500 mm, and Z-axis travel of 500 mm. The machine is equipped with a FANUC 0I-MF CNC, a spindle speed of 10,000 rpm, and a maximum table load of 500 kg. If you are looking to get high-quality machining capabilities, consider the HANNSA YL 850 B vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: HANNSA
- year: 2016
- MODEL: YL 850 B
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - HANNSA YL 850 B
Control Unit
- Control Brand: FANUC
- Control Model: 0I-MF
Dimensions
- Table Load: 500 kg
Movement
- Number of Axes: 4
- X-axis Travel: 850 mm
- Y-axis Travel: 500 mm
- Z-axis Travel: 500 mm
Technical Specification
- Number of Tools: 24
- Spindle Power: 11 kW
- Spindle Speed: 10000 RPM
- Taper Size: BT 40
Additional Information
Internal spindle coolant: 20 bar
Internal cooling
Additional equipment
4th axis table, 200 mm platter (continuous 4th axis)
Screw-type chip conveyor
Tool presetting on table edge
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
