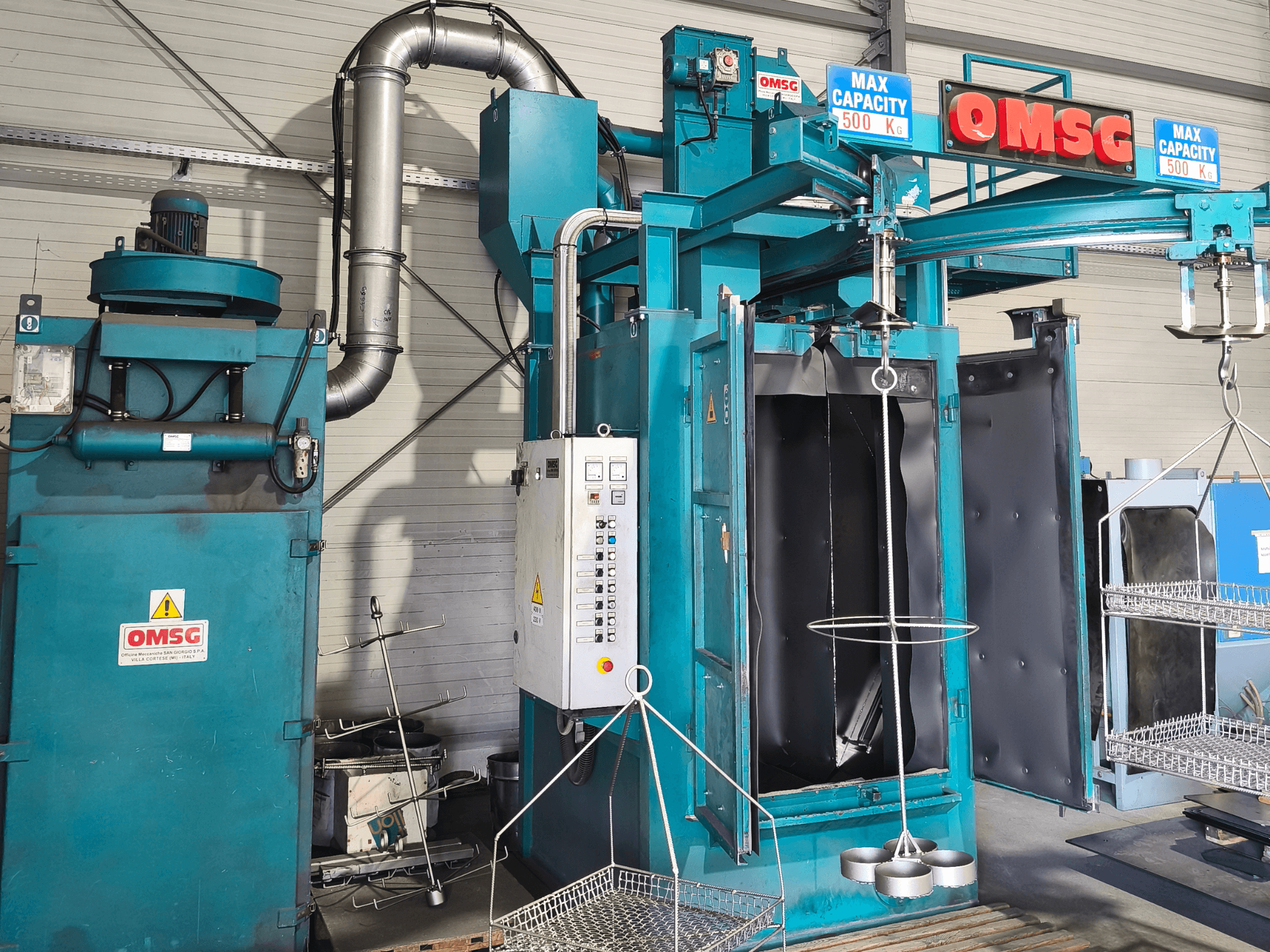

OMSG - CAPRI 9/13 M HU-OTH-OMS-2008-00001

• Operating hours: 3,575 (continuously changing)

• Suspension load capacity: max. 2 × 500 kg

• Turbines/spray wheels: 2 × SG 350; diameter 350 mm; rotational speed 2,850 rpm; power 2 × 5.5 kW

• Replaceable blasting area armor

• Screw-driven blasting material (abrasive) collection system

• Elevator

• Grain/abrasive cleaning system with cascade fine cleaning

• Control cabinet-operated suspension movement

• Blasting material storage silo

• Recommended blasting media: steel shot/steel grit 0.4–1.0 mm; 47–51 HRC

• Electrical switch cabinet with cabling: system operation; built-in locking system; safety functions

Additional equipment

• FAC 4/3 EX1 filter cartridge dust collector for explosive dust extraction

  • Air flow rate: 3,000 m³/h

  • Number of cartridges: 4 (polyester, grounded)

  • Electrical power: 4 kW

  • Dust emission: typically 2 mg/m³

  • Dry cartridge dust separator with JET cleaning system

  • Air duct between the device and the dust separator

  • ATEX: explosion class ST1 (steel parts with steel particles); permissible parameters: MZE > 10 mJ; KST < 200 bar·m/s; Pmax < 4.5 bar

  • Differential pressure controller (on-demand cartridge cleaning)

  • All metal parts grounded

  • Temperature sensor probe with high-temperature shutdown

  • Complies with VDI 2263 specifications
