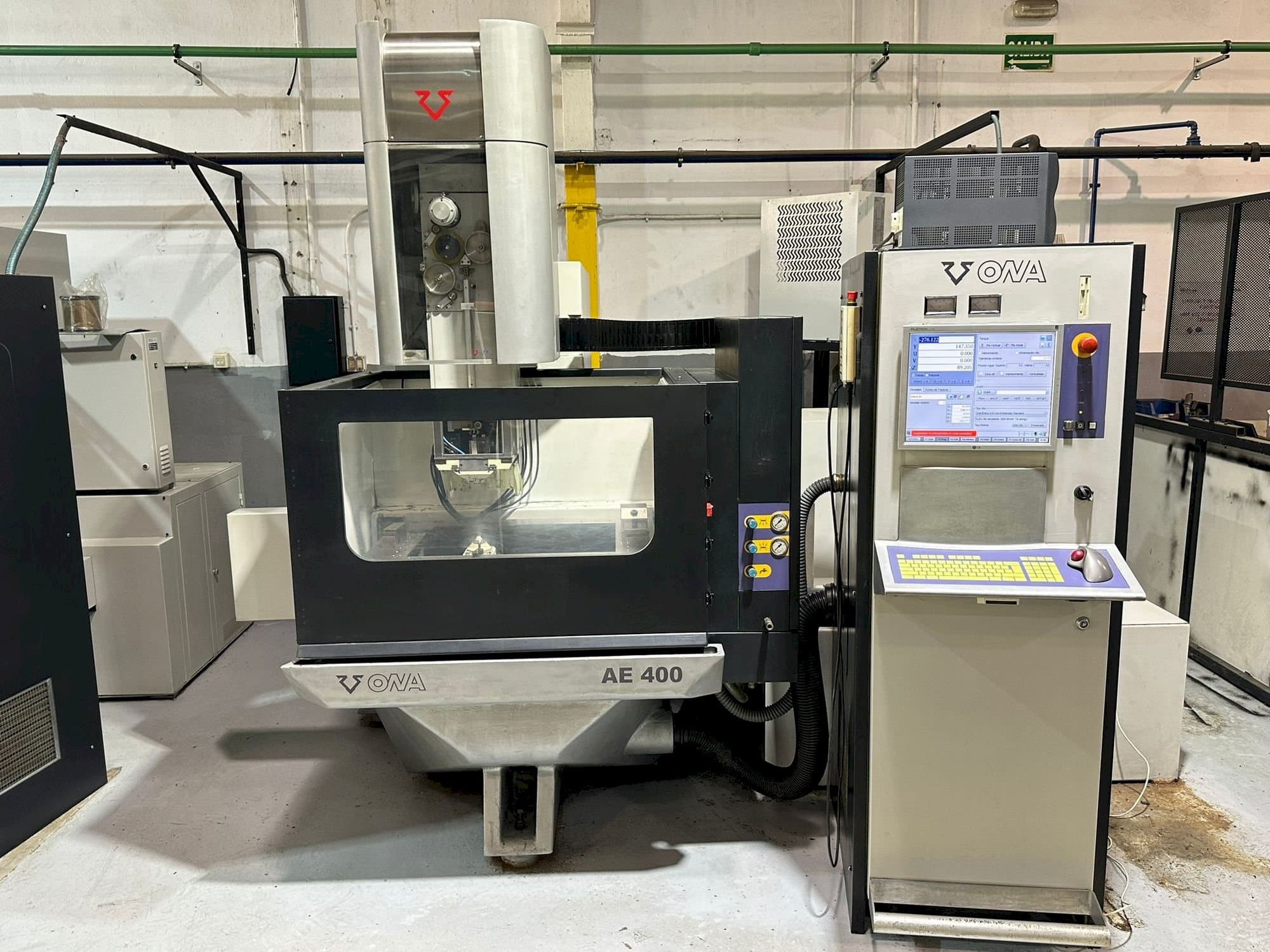

Front view of ONA AE400  machine

ONA - AE400ES-EDM-ONA-2006-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This ONA AE400 Erosion machine was manufactured in the year 2006. The machine has a wire diameter of 0,10-0,30 mm.

Overview

  • brand: ONA
  • year: 2006
  • MODEL: AE400
  • application type: EDM
  • Location: Spain
  • machine type: Die-Sinking EDM Machine
  • availability: Sold
  • control unit brand: FANUC

Technical Information - ONA AE400

General Data

  • Machine weight: 3900 kg

Control Unit

  • Brand: FANUC

Movement

  • X-AXIS Movement: 600 mm
  • Y-AXIS Movement: 400 mm
  • Z-AXIS Movement: 400 mm
  • U/V Movement: 80 mm

Workpiece

  • Workpiece x: 1000 mm
  • Workpiece y: 810 mm
  • Workpiece z: 400 mm
  • Workpiece weight: 3000 kg

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Max speed axis: 2. 000 mm/min.
      • - Angle of comical cut: ±9º / 400 mm
      • - Max. Angle of conical cut: ±30º / 95 mm
      • - Wire diameter: 0,10-0,30 mm
      • - Min hole diameter: 0. 5 mm.
      • - Position resolution (x/y/z/u/v): 0. 001 mm.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
