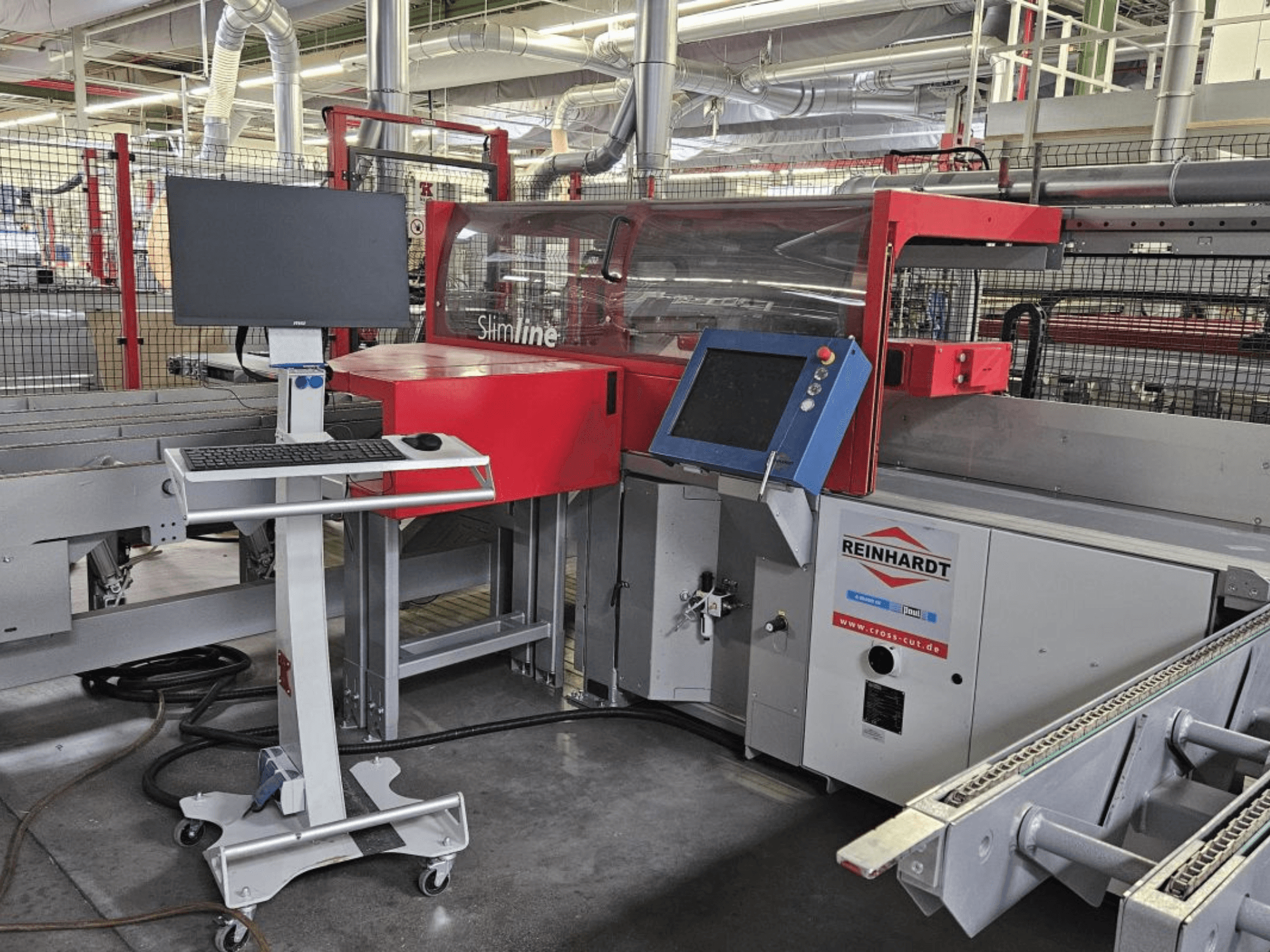

Optimizing Cross-Cut Saw manufactured in 2021. This Paul Reinhardt SlimLine 110 features automatic cutting capabilities, accommodating wood lengths from 300 to 3000 mm and widths from 30 to 350 mm. It is designed for various wood types, including MDF and solid wood, with a maximum cross-section of 58 x 125 mm. If you are looking to get high-quality cutting capabilities, consider the Paul Reinhardt SlimLine 110 machine we have for sale. Contact us for further details.
Overview
- brand: Paul Reinhardt
- year: 2021
- MODEL: SlimLine 110
- application type: Sawing (Wood)
- Location: Germany
- machine type: Optimizing Cross-Cut Saw
Technical Information - Paul Reinhardt SlimLine 110
Technical Specification
- Max. Cutting Length: 2700 mm
- Workpiece Thickness: 110 mm
Additional Information
Condition: Not rebuilt – sold without warranty
Cutting direction: right to left
Wood types: MDF, particleboard, solid wood, Kerto, plywood
Workpiece dimensions:
Length: 300–3000 mm
Width: 30–350 mm
Minimum cross-section: 15 x 30 mm
Maximum cross-section: 58 x 125 mm
Processing: automatic cutting
Working height: 900 mm
Electrical supply: 400 V / 50 Hz / 3 Ph
Main motor: 5.5 kW (400 VΔ / 690 VY, 50 Hz)
Control: Electronic control with Windows 10 and Beckhoff TwinCAT
Optimization: Full optimization without error cutting
Additional equipment
Feeding with 3 buffer stations (infeed buffering/automation)
Software/add-ons:
Backlog monitoring
PALETTI Process Viewer
PALETTI Office
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
