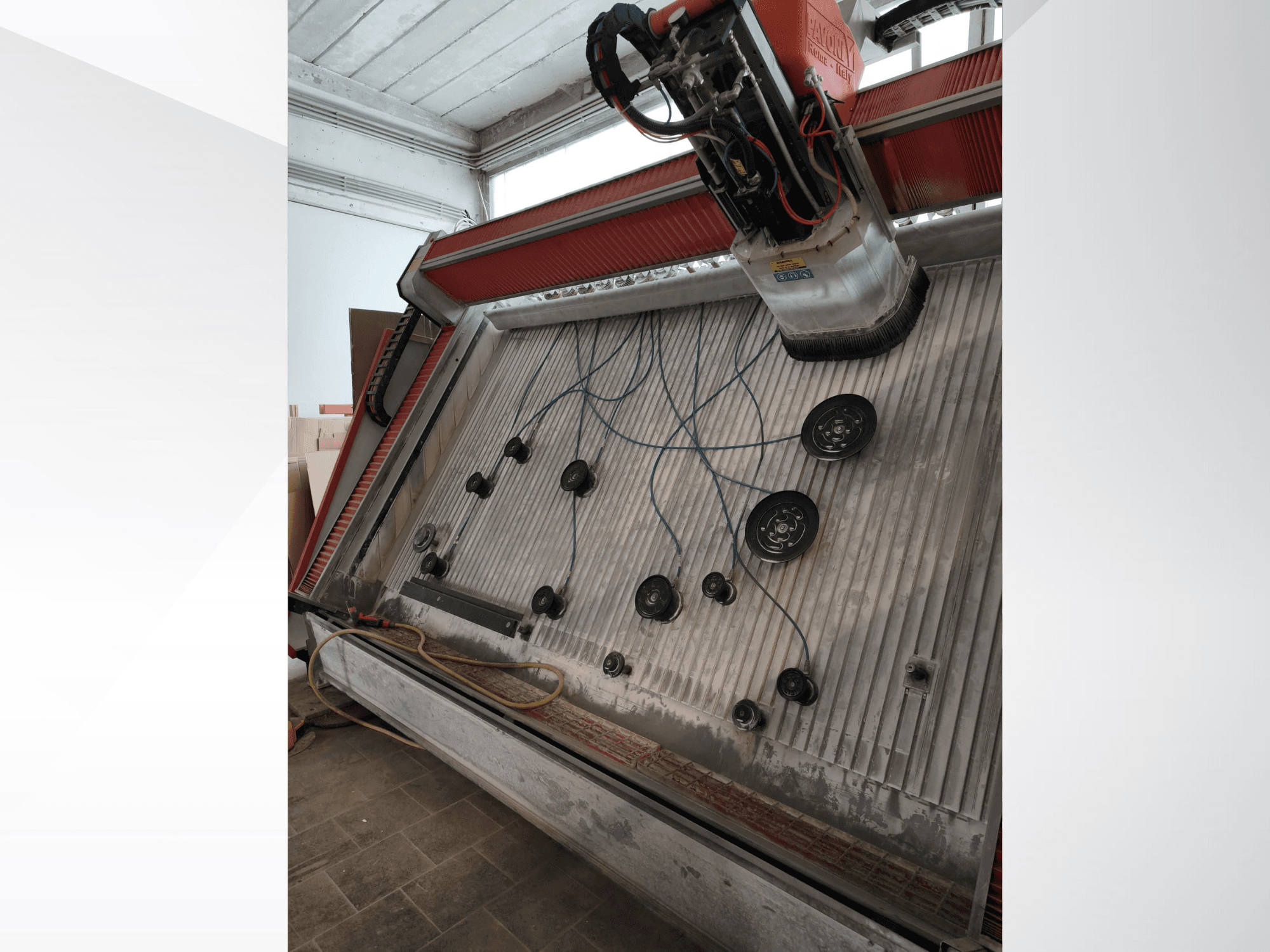

This 3-axis PAVONI V2400 Open Top was manufactured in 2009. It features an X-axis travel of 2360 mm, Y-axis travel of 1800 mm, and Z-axis travel of 300 mm. The machine is equipped with a powerful 7.5 HP spindle and operates at speeds ranging from 1000 to 12000 RPM. If you are looking to get high-quality machining capabilities, consider the PAVONI V2400 Open Top vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: PAVONI
- year: 2009
- MODEL: V2400 Open Top
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - PAVONI V2400 Open Top
Dimensions
- Machine Height: 2914 mm
- Machine Length: 3679 mm
- Machine Weight: 3800 kg
- Machine Width: 2457 mm
Movement
- Number of Axes: 3
- X-axis Travel: 2360 mm
- Y-axis Travel: 1800 mm
- Z-axis Travel: 300 mm
Technical Specification
- Spindle Power: 7.5 kW
- Spindle Speed: 12000 RPM
- Taper Size: ISO 40
Additional Information
- Working Hours: very low, used for only a few hours
- Control Console: TexComputer control console
- Spindle Power: HP 7.5
- Spindle Speed Range: 1000 - 12000 RPM
- Control Console Dimensions (LxWxH): 400 x 600 x 1600 mm
- Standard Equipment Included:
- Tool holders, milling, grinding, and polishing tools
- Vacuum units / suction cups
- Rollaway pneumatic supports
- Supports with eccentric rollers for sliding glass plates
- Laser crosshair aiming system for zero-points
- Anti-splinter drilling support
- Separate Data Input Computer: Included but never properly configured (not fully functional)
- Operational Status: Powered on and fully functional; needs maintenance checks since it hasn't been serviced in a long time
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
