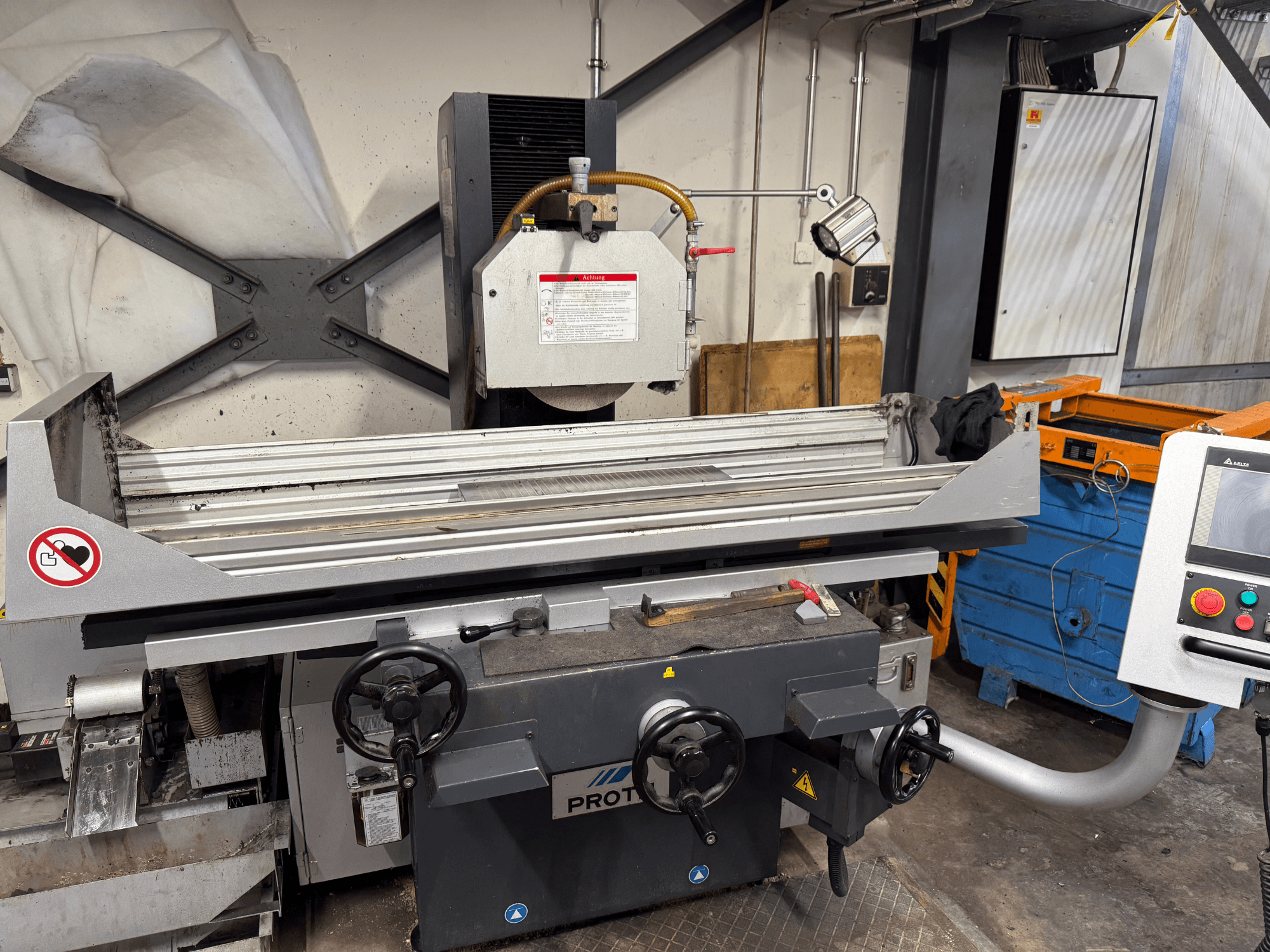

This 3-axis Proth PSGS 3060 BH / S1 surface grinding machine was manufactured in 2018. It features a table size of 300 × 600 mm and an electromagnetic chuck of the same dimensions. The grinding wheel measures 355 × 38 × 127 mm. Powered by a 3.7 kW spindle motor, this robust machine weighs approximately 1,900 kg. Consider the opportunity to buy this Proth PSGS 3060 BH / S1 surface grinding machine. Contact us for more information.
Overview
- brand: Proth
- year: 2018
- MODEL: PSGS 3060 BH / S1
- application type: Grinding
- Location: Luxembourg
- machine type: Surface Grinding Machine
Technical Information - Proth PSGS 3060 BH / S1
Dimensions
- Machine Height: 1900 mm
- Machine Length: 1950 mm
- Machine Weight: 1900 kg
Movement
- Number of Axes: 3
Technical Specification
- Spindle Power: 3.7 kW
Additional Information
Table size (L × W): 300 × 600 mm
Electromagnetic chuck size (L × W × H): 300 × 600 × 74 mm
Grinding wheel size (Ø × width × bore): 355 × 38 × 127 mm
Additional equipment
Optional: Tools
Optional: Clamping devices
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
