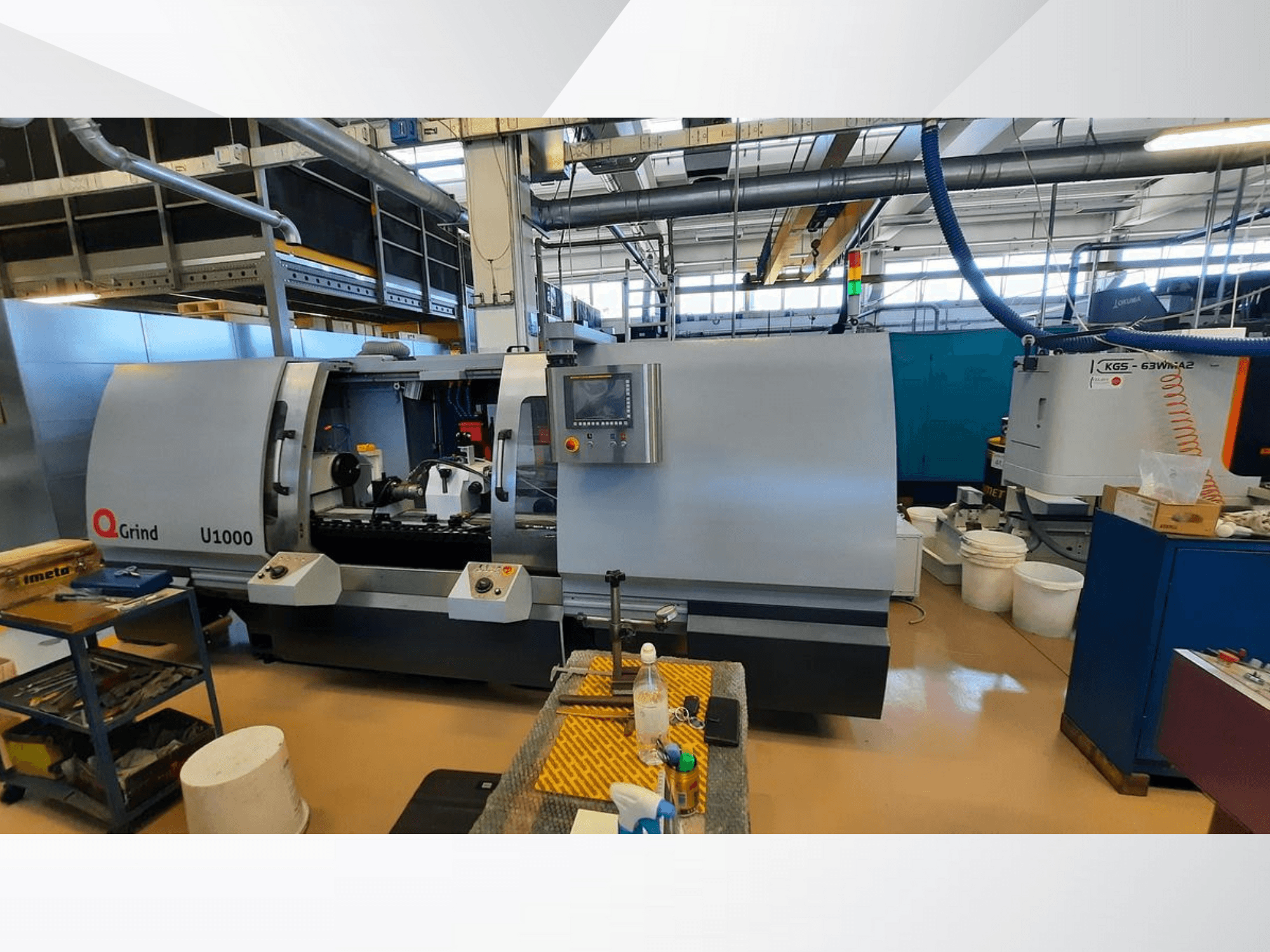

Q-Grind U1000 machine in a workshop, showcasing a front view with control panel and open cutting area, surrounded by equipment.
Q-Grind U1000 machine in a workshop, showcasing a front view with control panel and open cutting area, surrounded by equipment.

QGrind - QGRIND U1000IT-GRI-QGR-2012-00001

88,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis QGrind QGRIND U1000 cylindrical grinding machine was manufactured in 2021. It features a max workpiece diameter of 450 mm, a distance between centers of 1000 mm, and a grinding length of 800 mm. Equipped with a Fanuc 0i-TF control unit and a 15" touchscreen, it offers precise control and ease of use. Consider the opportunity to buy this QGrind QGRIND U1000 cylindrical grinding machine. Contact us for more information.

Overview

  • brand: QGrind
  • year: 2021
  • MODEL: QGRIND U1000
  • production hours: 3008
  • application type: Grinding
  • Location: Italy
  • machine type: Cylindrical Grinding Machine

Technical Information - QGrind QGRIND U1000

Dimensions

  • Machine Depth: 2200 mm
  • Machine Height: 1900 mm
  • Machine Length: 4400 mm
  • Machine Weight: 6500 kg

Movement

  • X-axis Travel: 260 mm
  • Z-axis Travel: 1115 mm

Additional Information

  • Max X-axis speed: 6 m/min

  • Max Z-axis speed: 10 m/min

  • Min incremental movement X/Z: 0.001 mm

  • Encoder resolution X/Z: 0.0001 mm

  • X-axis linear scale: Heidenhain

  • Z-axis guide type: V + scraped flat

  • X-axis guide type: Linear

  • B-axis servo controlled: Yes

  • Max workpiece diameter: 450 mm

  • Distance between centers: 1000 mm

  • Max grinding length between centers: 800 mm

  • Max workpiece weight between centers: 150 kg

  • Workpiece spindle taper: MT5

  • Table tilt: 2° clockwise / 7.5° counterclockwise

  • Wheel peripheral speed: 35–45 m/s

  • Left wheel dimensions: Ø455 × 50 × Ø127 mm

  • Right wheel dimensions: Ø355 × 38 × Ø127 mm

  • Tailstock taper: MT5

  • Tailstock quill travel: 50 mm

  • Tailstock actuation: Hydraulic

  • Grinding wheel motor power: 4.5 kW

  • Workhead speed: 5–400 RPM

  • Wheel orientation range: 35–190°

  • Max spindle speed for internal grinding: 30000 RPM


*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
