➤ Used Quick-Tech XTS-42 For Sale | gindumac.com

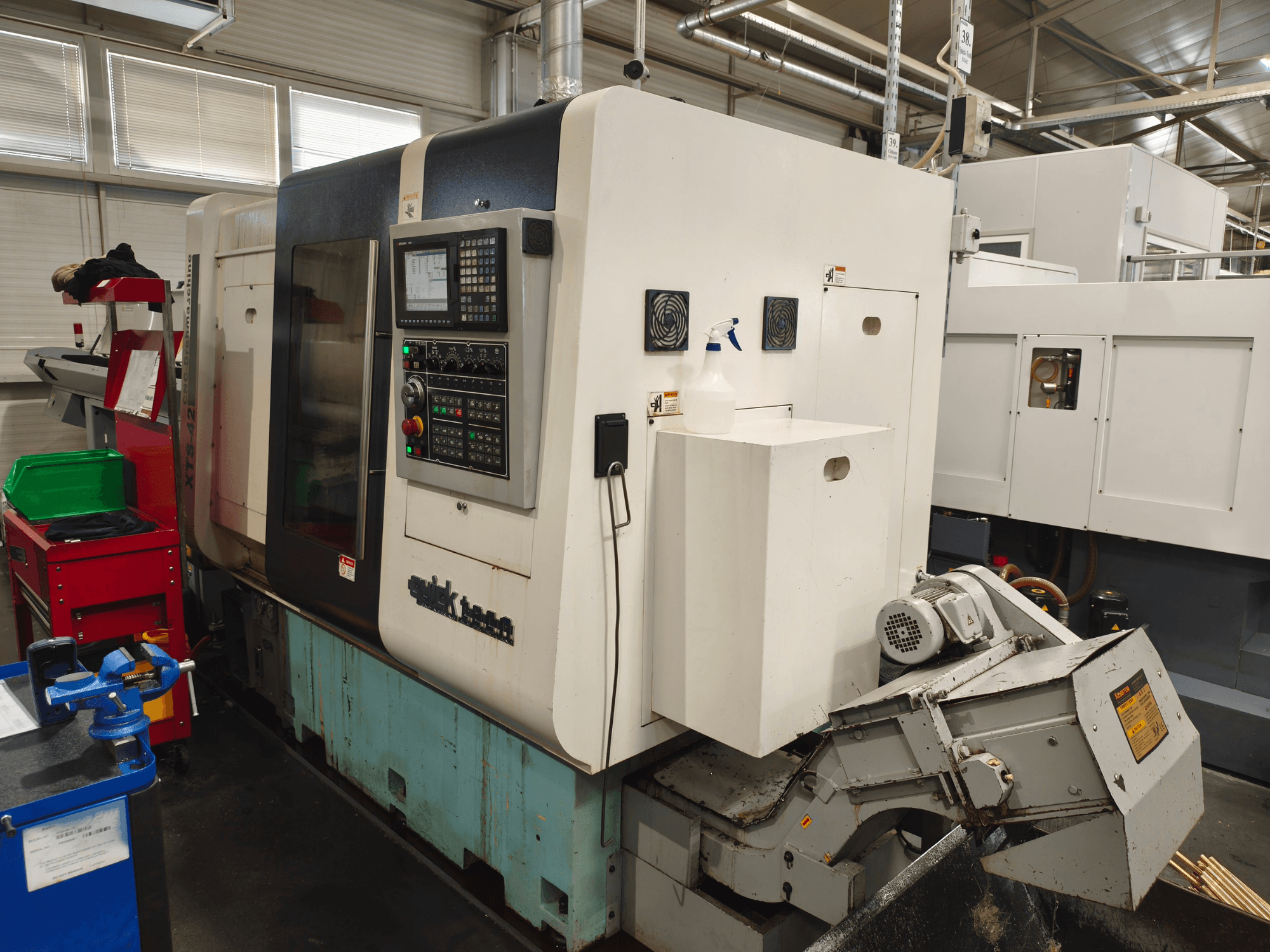

This 4-axis Quick-Tech XTS-42 CNC Lathe was manufactured in 2013. It features a twin-spindle configuration with a maximum machining length of 350 mm on the main spindle and a turning diameter of 100 mm on the sub-spindle. The machine is equipped with a Mitsubishi M70 control and has a bar capacity of 42 mm. If you are looking to get high-quality turning capabilities, consider the Quick-Tech XTS-42 machine we have for sale. Contact us for further details.

Overview

brand: Quick-Tech
year: 2013
MODEL: XTS-42
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine

Technical Information - Quick-Tech XTS-42

Movement

Number of Axes: 4
X-axis Travel: 250 mm
Y-axis Travel: 380 mm
Z-axis Travel: 350 mm

Technical Specification

Counter Spindle: Yes
Driven Tools: Yes
Spindle Power: 7.5 kW
Spindle Speed: 4000 RPM

Additional Information

Number of spindles: 2
Spindle motor power: Main spindle: 7.5 kW; Sub-spindle: 3.7 kW
Spindle bore: Main spindle: 44 mm; Sub-spindle: 30 mm

Movement

B-Axis: Present, according to seller description
Others: Z1-axis: 470 mm

Extra Information

Bar capacity: 42 mm
Main spindle max. machining length: 350 mm
Main spindle chuck: Patron KK5-173E/42B
Main spindle nose: ISO A2-5
Sub-spindle bar capacity: 42 mm
Sub-spindle max. machining length: 155 mm
Sub-spindle max. turning diameter: 100 mm
Sub-spindle chuck: Patron KK5-173E/42B
Sub-spindle nose: ISO A2-5
X / Y / Z / Z1 servo motors: Mitsubishi, 1 kW
Technical specification available as attachment
Preliminary evaluation requested
Still missing / useful to request before publication: Serial number
Still missing / useful to request before publication: Exact machine location
Still missing / useful to request before publication: Operating hours / spindle hours
Still missing / useful to request before publication: Confirmation machine is fully operational
Still missing / useful to request before publication: Whether machine is under power and can be demonstrated
Still missing / useful to request before publication: Number of axes / exact B-axis configuration
Still missing / useful to request before publication: Driven tools / live tooling
Still missing / useful to request before publication: Tooling configuration / number of tool stations
Still missing / useful to request before publication: Bar feeder included or not
Still missing / useful to request before publication: Chip conveyor
Still missing / useful to request before publication: Additional accessories
Still missing / useful to request before publication: Recent photos
Still missing / useful to request before publication: Nameplate photo
Still missing / useful to request before publication: Video under power
Still missing / useful to request before publication: Maintenance / repair history
Still missing / useful to request before publication: Any active alarms or known technical issues

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
