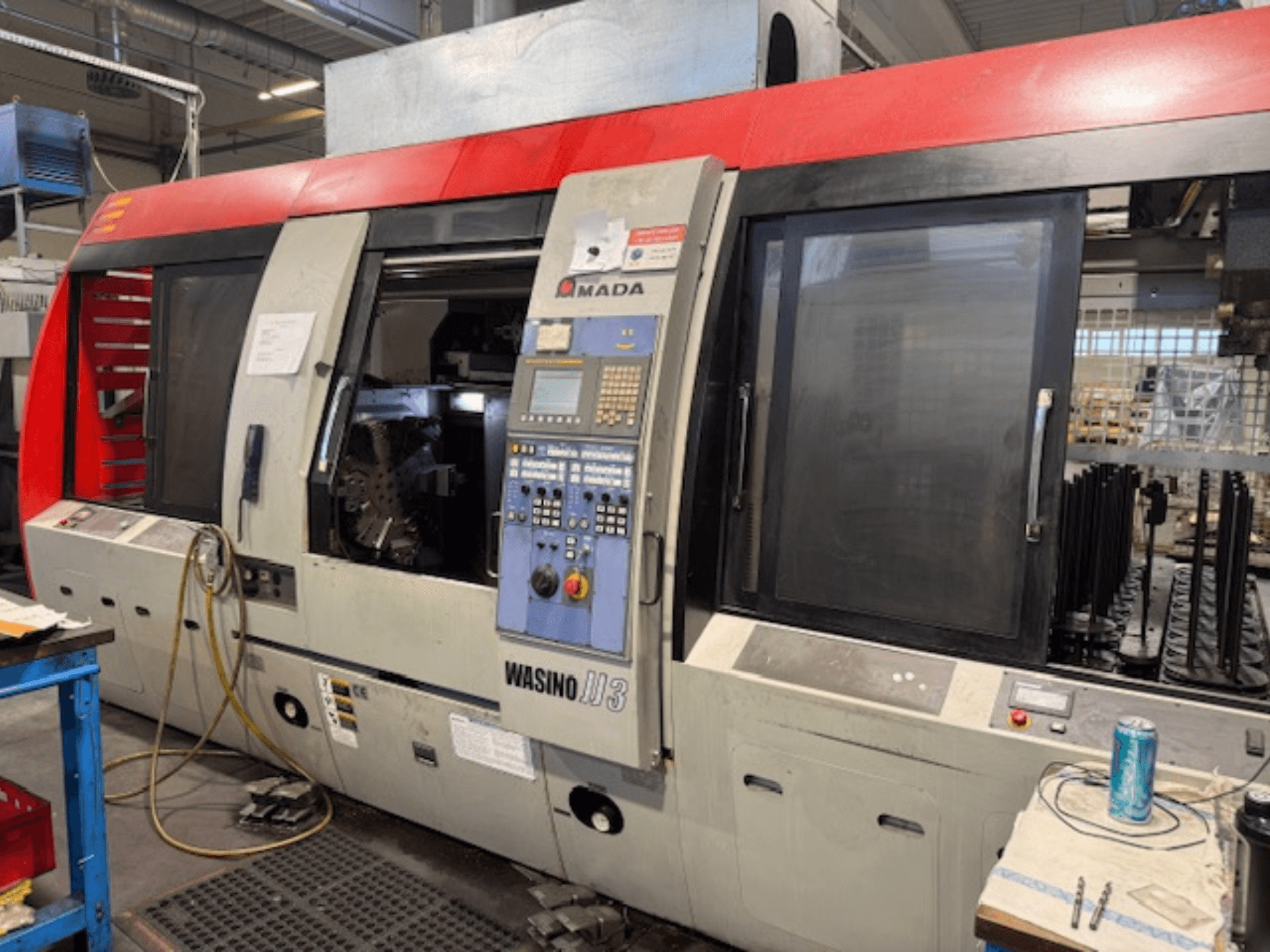

This 6-axis AMADA Wasino JJ3 was manufactured in 2007. It features a twin spindle, twin turret turning cell with a maximum spindle speed of 4000 rpm and a chuck size of 8”. The machine is designed for high-volume production with automatic loading and unloading capabilities. If you are looking to get high-quality turning capabilities, consider the AMADA Wasino JJ3 horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: AMADA
- year: 2007
- MODEL: Wasino JJ3
- application type: Turning
- Location: Hungary
- machine type: Horizontal Turning Machine
- control unit brand:
Technical Information - AMADA Wasino JJ3
Movement
- Number of Axes: 6
- X-axis Travel: 245 mm
- Z-axis Travel: 210 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: No
- Spindle Power: 7.5 kW
- Spindle Speed: 4000 RPM
Additional Information
Axes: X1, Z1, C1, X2, Z2, C2
Travels: X1/X2 245 mm; Z1/Z2 210 mm
Spindles: 2 (double front spindle), max speed 4000 rpm, power 7.5 kW (option 11 kW), high-acceleration spindle
Turrets: 2 × 12 stations
Chuck size: 8" (3-jaw, both spindles)
Bed: High rigidity monoblock design
Cutting performance:
Turning (S45C): depth of cut 1.6 mm; feed 0.22 mm/rev; cutting speed 160 m/min
Drilling: Ø22 mm; feed 0.56 mm/rev
Tapping: M16
Grooving: up to 8 mm
Precision: positioning accuracy ±2 µm; repeatability ±2 µm
Coolant/system: 290 L tank; filtration; high-pressure coolant pump
Cell concept/capability: automatic loading/unloading; fully automated; designed for unmanned, high-volume production
Driven tools: No
Condition: Good, properly working; regular maintenance since 2008
Additional equipment
Gantry loader with reverse turn unit
Work stocker: 2 units (expandable to 4)
Chip conveyor
Transformer
Integrated measuring unit (optional concept)
Cleaning unit (optional concept)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
