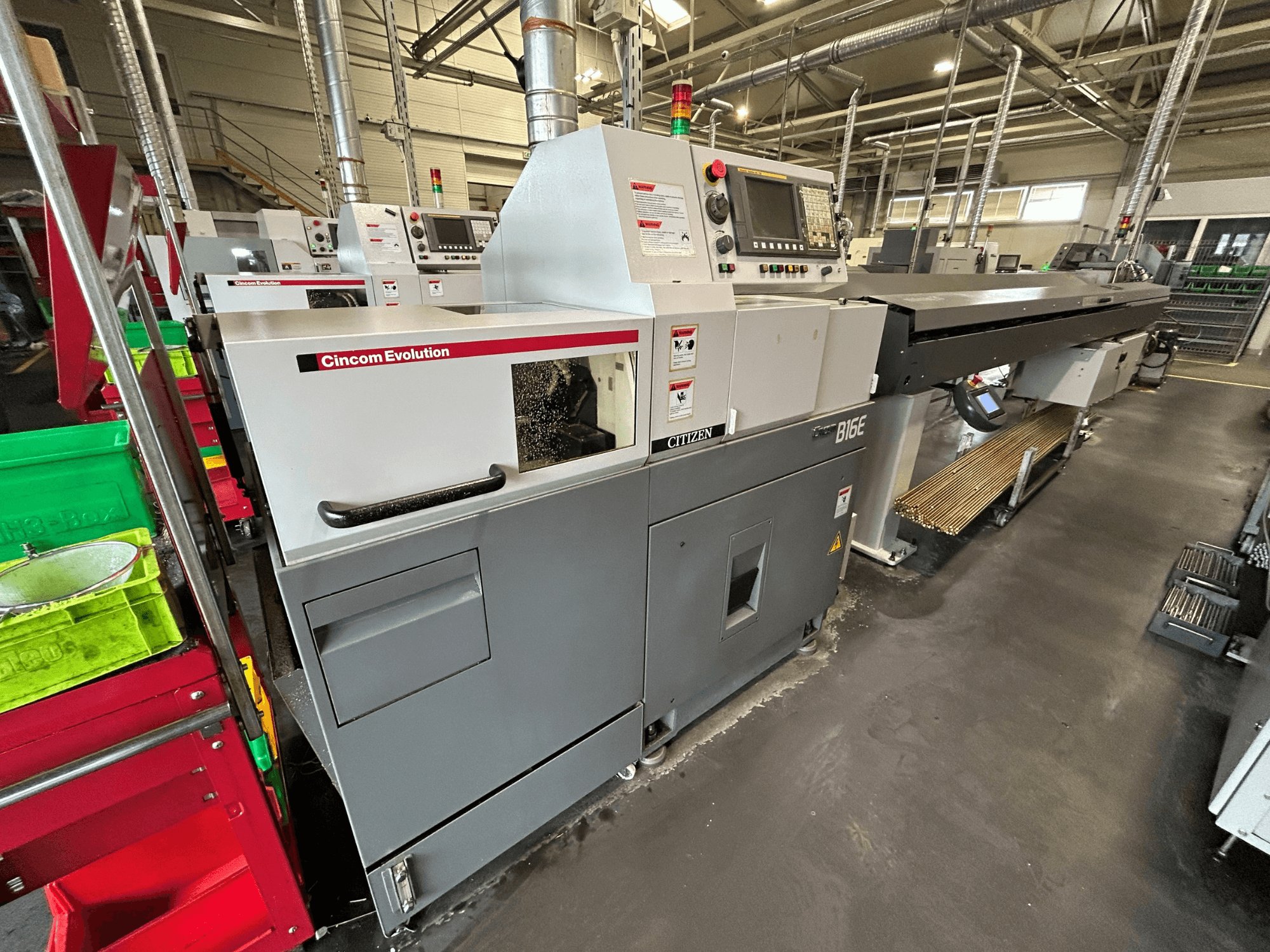

Citizen - B16 HU-TUR-CIT-2013-00001

Machining capacity

• Maximum machining diameter: Ø16 mm

• Maximum machining length: 135 mm

• Main spindle through-hole diameter: Ø20 mm

• Maximum front drilling diameter: Ø6 mm

• Maximum front tapping: M6

Travels

• A2/back-spindle axis travel: 200 mm

Rapid feeds

• X-axis: 21 m/min

• Y-axis: 21 m/min

• Z-axis: 15 m/min

• A2-axis: 15 m/min

Main spindle

• Speed range: 200–10,000 rpm

• Maximum speed with rotary guide bushing: 8,000 rpm

• Motor: 2.2 / 3.7 kW

Counter spindle (back spindle)

• Maximum chucking diameter: Ø16 mm

• Speed range: 100–6,000 rpm

• Maximum drilling diameter: Ø5 mm

• Maximum tapping: M3

• Motor power: 1.0 kW

Driven tooling

• Maximum drilling diameter: Ø5 mm

• Maximum tapping: M4

• Tool spindle speed: 100–4,500 rpm

• Drive motor: 0.5 kW

Tooling

• Total mountable tools: 15

• Cutting tools: 5

• Secondary machining tools: 2

• Front drilling tools: 4

• Back drilling tools: 4

General

• Input power capacity: 5.2 kVA

Units available and hours

• Unit 1

  • Manufacture date: 05/2013

  • Power On: approx. 82,600 h

  • Run Time: approx. 31,847 h

  • Cutting Time: approx. 22,613 h

• Unit 2

  • Manufacture date: 06/2013

  • Power On: approx. 81,474 h

  • Run Time: approx. 31,403 h

  • Cutting Time: approx. 20,127 h

Additional equipment

• Bar feeder: FMB Minimag 20 / 3200 C

  • Unit 1 bar feeder year: 2014

  • Unit 2 bar feeder year: 2013
