Used Lathe RAIS T 5000 (2015) for sale | GINDUMAC.COM

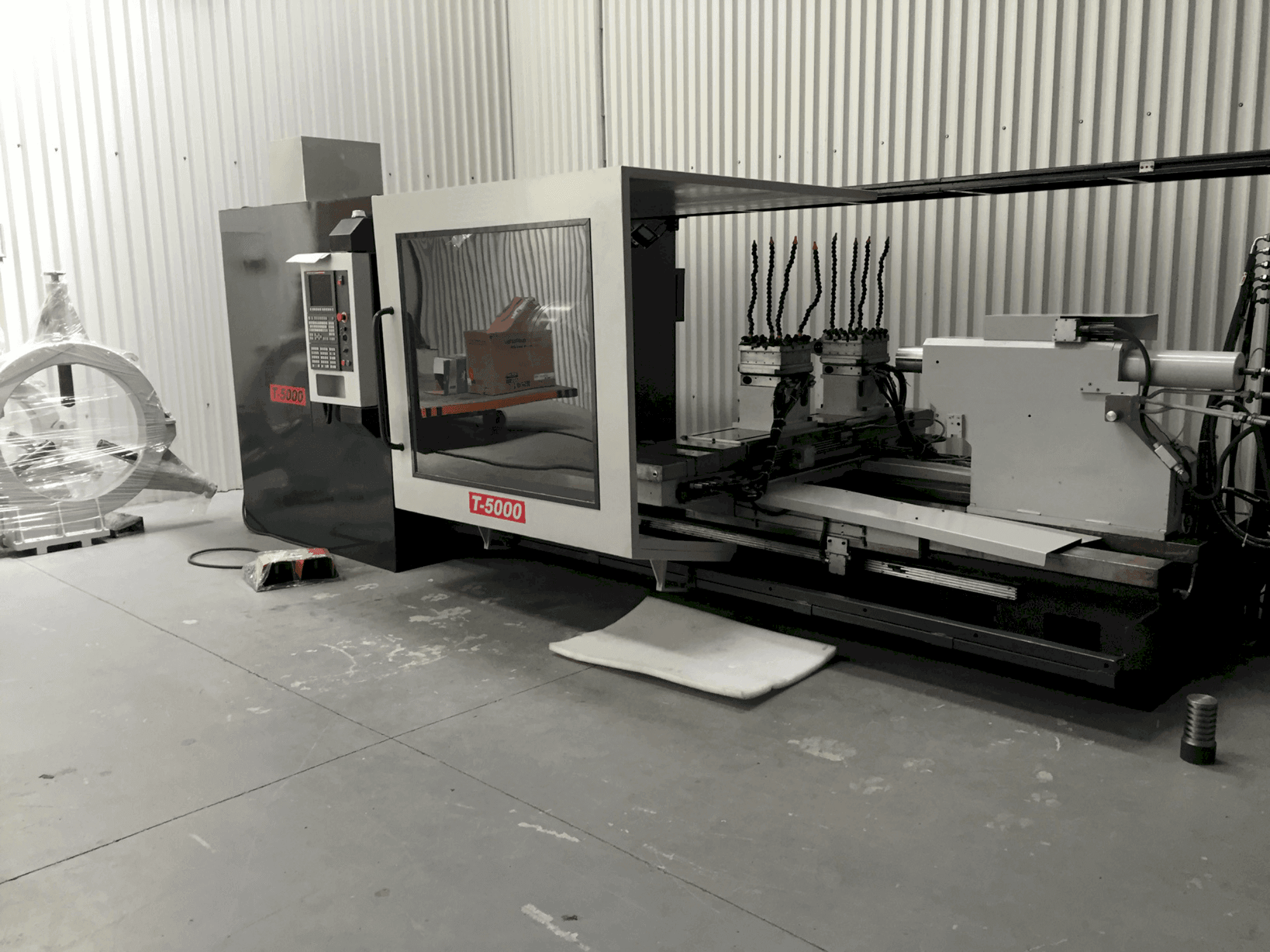

This RAIS T 5000 Lathe was manufactured in the year 2015. It is equipped with a Fanuc 0i- TD controller with 10.4”LCD monitor. The machine disposes of a main spindle and 2 tool turrets. It is included with a chip conveyor and a standard equipment. Contact us anytime for further questions.

Overview

brand: RAIS
year: 2015
MODEL: T 5000
application type: Turning
Location: Greece
machine type: Lathe
availability: Immediately
GINDUMAC ID: GR-TUR-RAI-2015-00001

Technical Information

General Data

Measurements width: 1810 mm (with electrical cabinet)
Measurements depth: 4500 mm
Measurements height: 1900 mm
Machine weight: 14800 kg

Controller

Brand: Fanuc
Model: Series oi-TD

Main drive

Number of spindles: 1
Spindle speed range: 160-1000 1/MIN
Spindle motor power: 50ΗΡ
Spindle bore: 250 mm
Number of axis: 2

Movement

X-AXIS Movement: 350 MM
Z-AXIS Movement: 1000 MM

Turret

Number of turrets: 2

Media

Chip conveyor: Yes

Additional Equipment

- Hydraulic station.
- Programmable hydraulic tailstock.
- Programmable hydraulic tailstock.
- Automatic lubrication system
- Coolant system.
- Cooler for electric cabinet.
- RS232 and Flash Card port.
- Transformer 380/220V.
- Machine maintenance tool kit.
- Set of manuals with CD.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tailstock travel (programmable) 380mm
- - Length with chip conveyor 5. 230mm
- - Distance between centers 2. 200mm
- - Max. Swing over bed Ø860mm // swing over cross slide Ø600mm
- - Axial power of the cross axis (x) 1. 196dan // axial power of the longitudinal axis (z) 1. 196dan
- - Spindle nose asa 20’’ // speed ranges (automatic) 14
- - Maximum cross travel 370mm //max. Longitudinal travel 1. 000mm
- - Feed speed of work and threading 0 - 8. 000mm/1’ // rapid feed speed 9. 000mm/1’
- - Ø of ball screws - x axis 40x10mm Ø // of ball screws - y axis 40x10mm
- - Tool size 32x32mm // tool holders - standard with rules vdi 3425 sheet 3 // time taking of releasing lock and lift 0,5sec // time taken for one revolution 5sec
Qualitative Machine Benefits:
- - Installed power approx. 29kw
- - 10. 4”lcd controller monitor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
