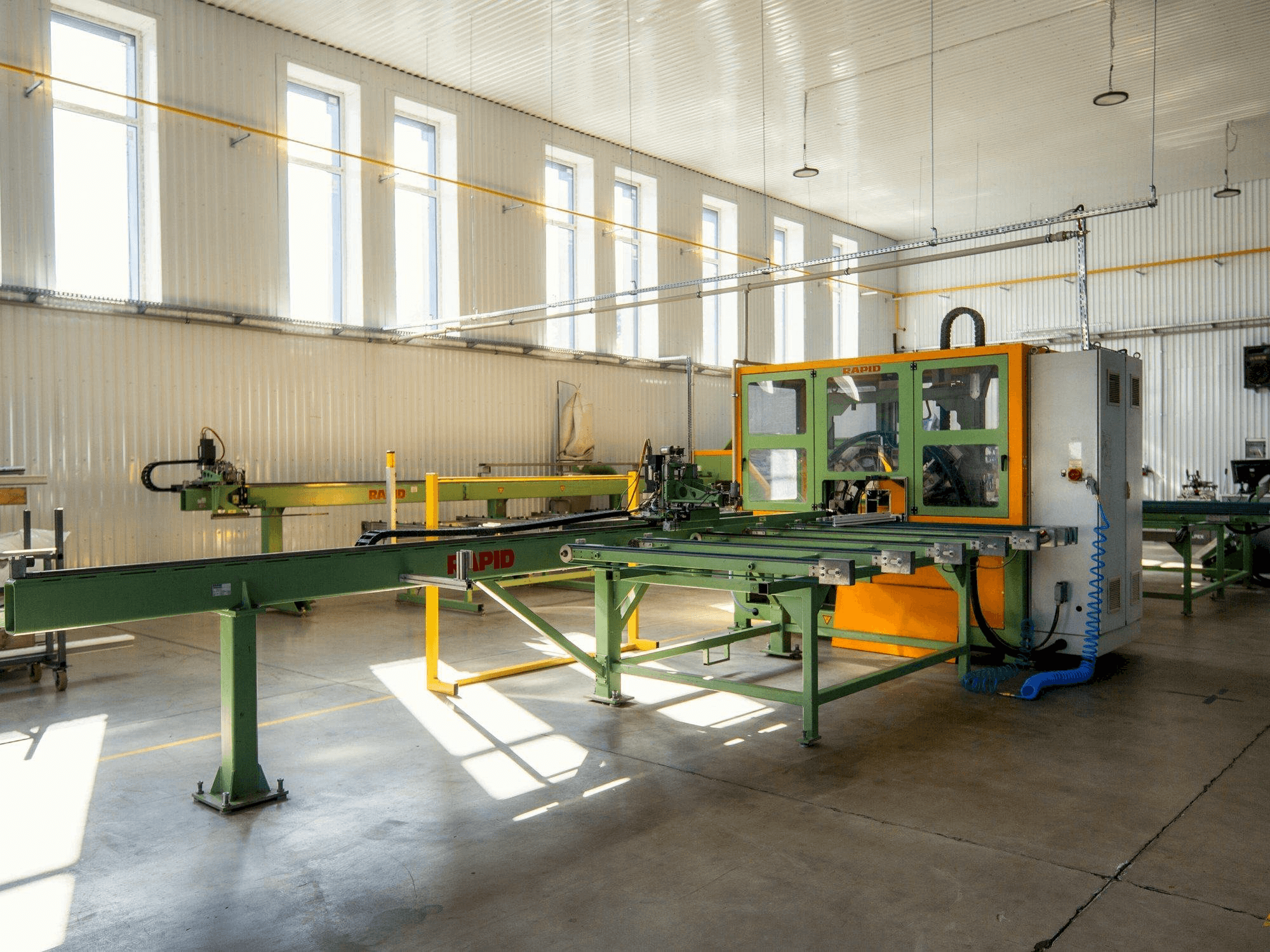

RAPID - MFC EVOLUTION IIPL-MIL-RAP-2009-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- RAPID MFC EVOLUTION II Universal Machining center
This RAPID MFC EVOLUTION II Universal Machining center was manufactured in the year 2009. It is equipped with a PC-controlled control unit. The machine has a spindle speed of 18000 rpm.
Overview
- brand: RAPID
- year: 2009
- MODEL: MFC EVOLUTION II
- application type: Milling
- Location: Poland
- machine type: Universal Machining Centre
- availability: Sold
Technical Information - RAPID MFC EVOLUTION II
Main drive
- Spindle speed range: 18000 1/MIN
Additional Information
- Technical Machine Benefits:
- - Milling cutter motor capacity: 0. 5 kw, milling cutter motor frequency: 300 hz, milling cutter motor speed max. : 18000 min⁻¹, milling cutter motor collet ø max. : 8 mm
- - Drilling motor capacity: 0. 75 kw , drilling motor speed max. : 1500 min⁻¹ ,drilling motor collet ø max. : 16 mm
- - Electric operating voltage: 400 v, 50 hz required mains connection voltage: 20 kw
- - Switch cabinet working height: 1050 mm , switch cabinet connection: lockable master switch
- - Cable connections: 400v npe
- - Pneumatic working pressure (manufacturer) min/max: 6 - 7 , bar maintenance pressure consumption per cycle approx. : 3500 ni
- - Load limit of the pneumatic pipes at 70° c: approx. 15 bar
- - Max. Profile measurement length: 3500 mm, max. Profile measurement width: 130 mm ,max. Profile measurement height: 120 mm
- - Magazine length: 3600 mm ,magazine width: 2707 mm ,magazine height: 1050 mm, magazine weight: 650 kg
- - External screw feed length: 3000 mm, external screw feed width: 1500 mm, external screw feed height: 1800 mm, external screw feed weight: 90 kg
- Qualitative Machine Benefits:
- - Mfc evolution unfixed length: 1600 mm, mfc evolution unfixed width: 650 mm, mfc evolution unfixed height: 1400 mm , mfc evolution unfixed weight: 90 kg
- - Off loader magazine length: 3753 mm, off loader magazine width: 2187 mm, off loader magazine height: 1078 mm, off loader magazine weight: 400 kg
- - Transport axis length: 5882 mm, transport axis width: 1085 mm, transport axis height: 1624 mm, transport axis weight: 400 kg
- - Screwdriver for reinforcements: with an automatic screw feeder aggregates arrangement: on a wheel, allowing for processing at various angles number of milling and drilling aggregates: 7
- - Operation: in continuous use.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
