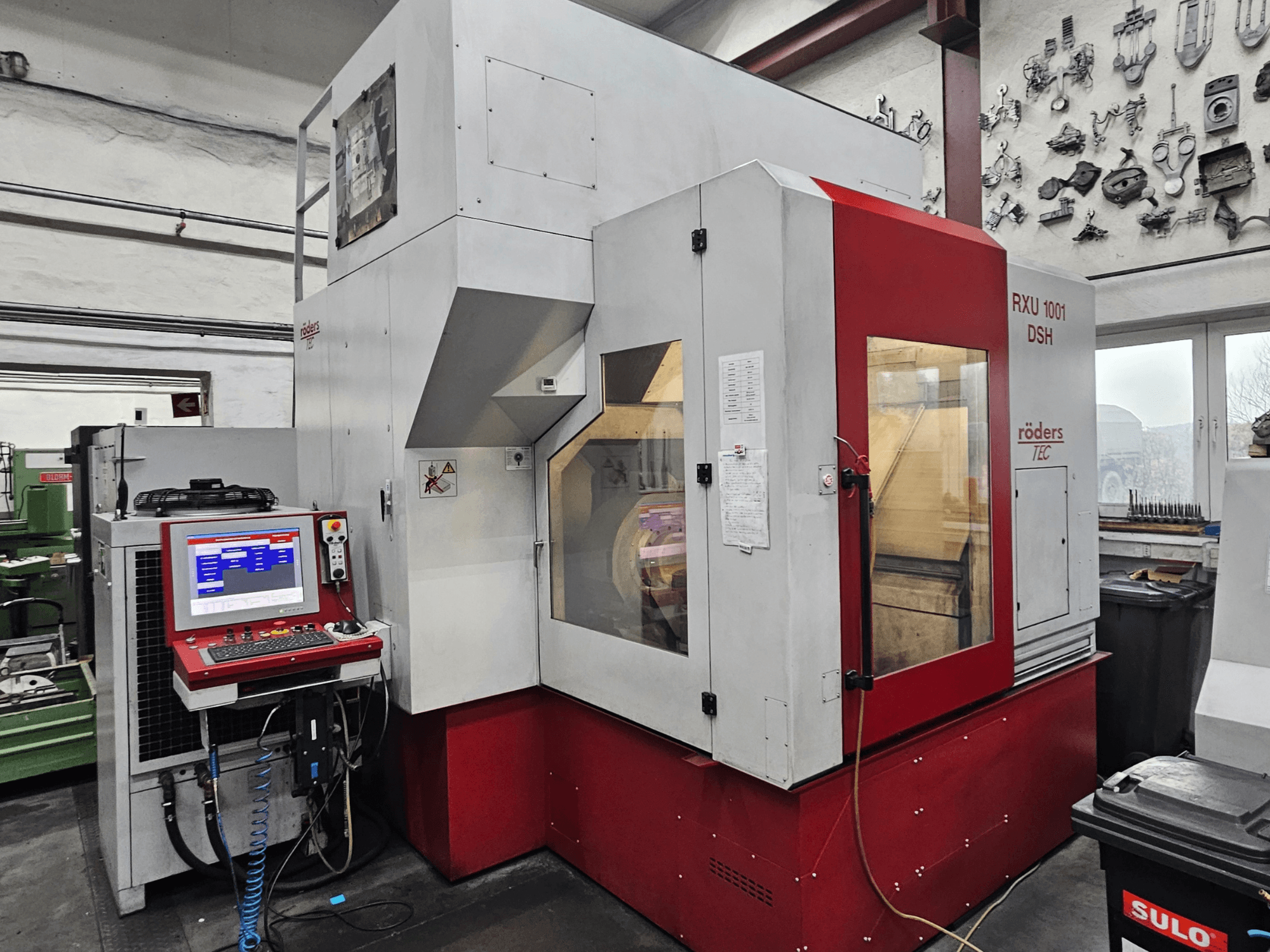

This 5-axis RÖDERS RXU 1001 DSH was manufactured in 2016. It features a machining range of 800 mm × 855 mm × 500 mm and a maximum workpiece weight of 800 kg. The machine is equipped with a milling spindle that operates at 24,000 rpm and includes a tool changer for 24 tools. If you are looking to get high-quality machining capabilities, consider the RÖDERS RXU 1001 DSH vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: RÖDERS
- year: 2016
- MODEL: RXU 1001 DSH
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - RÖDERS RXU 1001 DSH
Dimensions
- Machine Height: 3600 mm
- Machine Length: 4814 mm
- Machine Weight: 21500 kg
Movement
- Number of Axes: 5
Technical Specification
- Spindle Speed: 24000 RPM
Additional Information
Machining range: 800 mm × 855 mm × 500 mm
Swivelling range (A-axis): ±115°
Rotation range (C-axis): almost unlimited
Table size: 400 mm round or 400 mm square, 600 mm round with two flattened sides
Max. workpiece weight: 800 kg
Feed rate: 0–60,000 mm/min
Milling spindle (standard): 67 Nm (S1), HSK A63, max. tool diameter 35 mm
Tool changer (standard): 24 tools (rotary – can be loaded during machining)
Tool changer (optional, integrated): 40+ tools (chain changer – can be loaded during machining)
Integrated measuring laser
Chip disposal (standard): 2 screws into chip box behind the machine
Additional equipment
Optional chip conveyor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
