- ➤ Used SACHMAN TRT10 HS - For Sale | gindumac.com

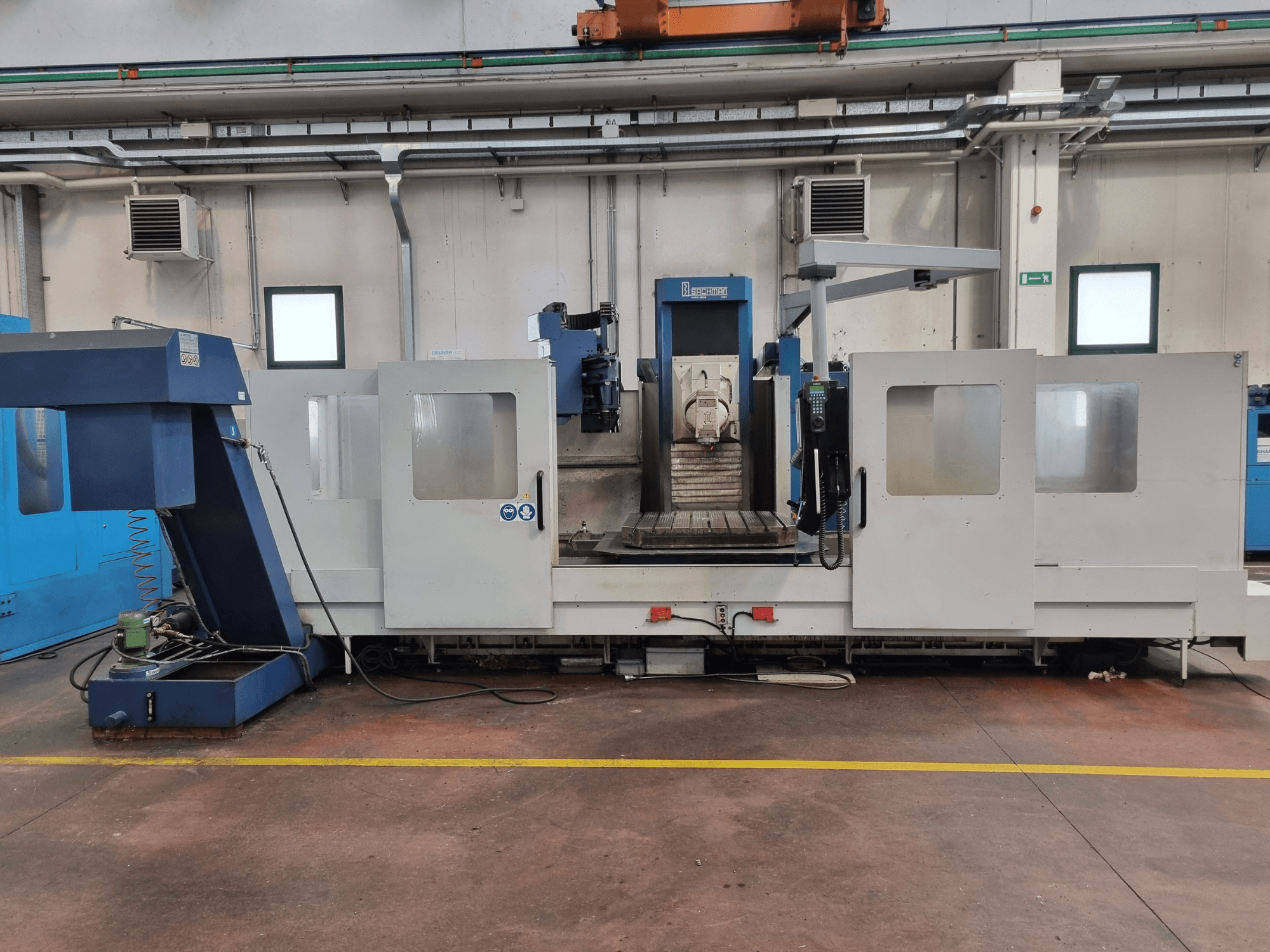

This 4-axis SACHMAN TRT10 HS was manufactured in 2002. It features a rotary-translating table, CNC control by Selca 4045, and a robust tool system with a 40-position magazine. The spindle reaches up to 5000 rpm with a power of 18 kW. It supports a maximum table load of 5000 kg. Consider the opportunity to buy this SACHMAN TRT10 HS Bed Type Milling Machine. Contact us for more information about this machine.
Overview
- brand: SACHMAN
- year: 2002
- MODEL: TRT10 HS
- application type: Milling
- Location: Italy
- machine type: Bed Type Milling Machine
Technical Information - SACHMAN TRT10 HS
Dimensions
- Machine Depth: 4400 mm
- Machine Height: 3000 mm
- Machine Length: 6500 mm
- Machine Weight: 17100 kg
Movement
- X-axis Travel: 3000 mm
- Y-axis Travel: 1210 mm
- Z-axis Travel: 1000 mm
Additional Information
Rotary-Translating Table: Yes
Table Length: 1200 mm
Table Width: 1200 mm
Maximum Table Load: 5000 kg
Tool Magazine Capacity: 40 positions
Spindle Taper: DIN 69871-B40
Maximum Spindle Speed: 5000 rpm
Spindle Motor Power: 18 kW
Condition: Good
CE Compliant: Yes
Status: Connected to power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
