- SAMAG MFZ 2-2 horizontal machine center

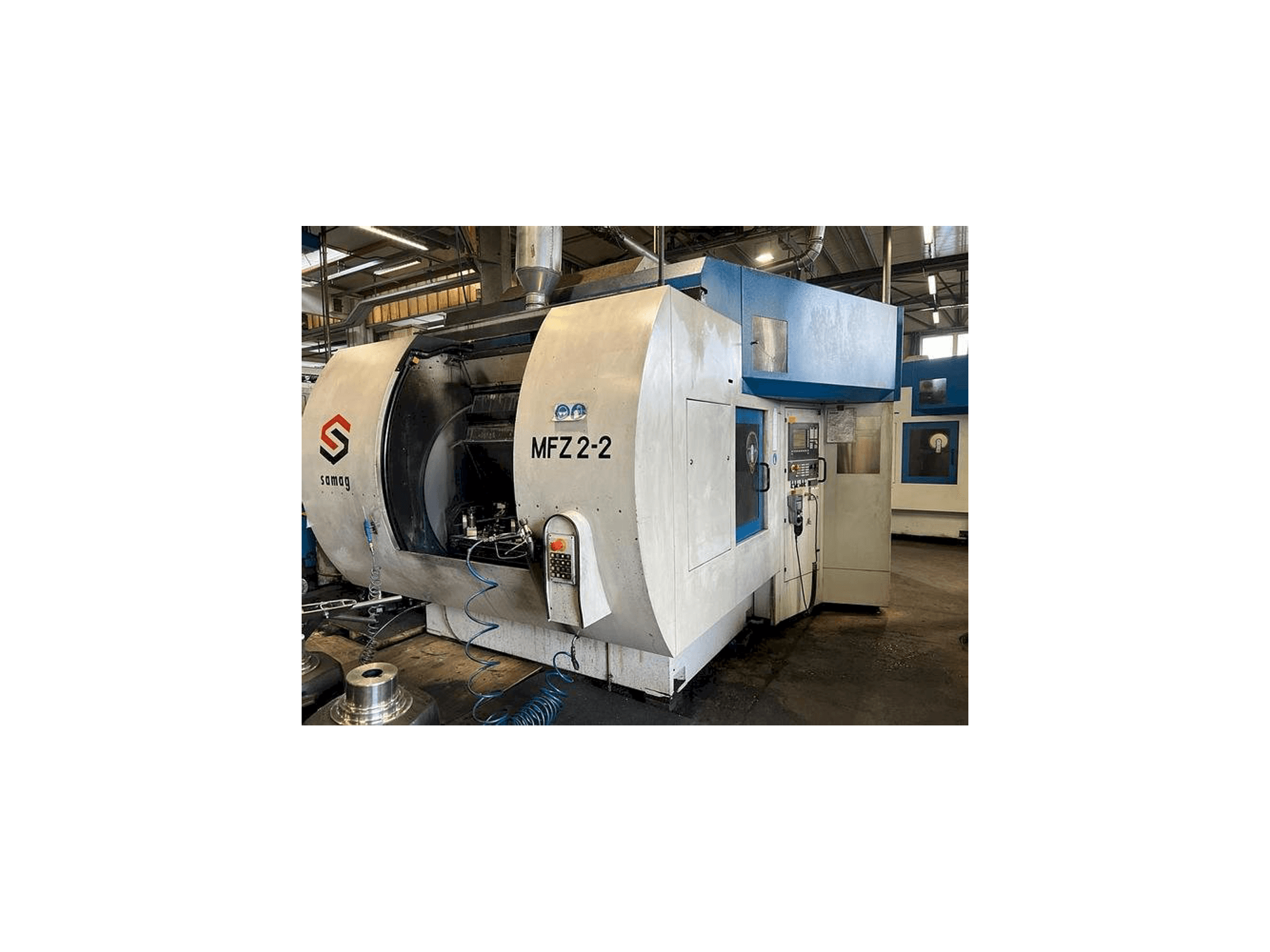

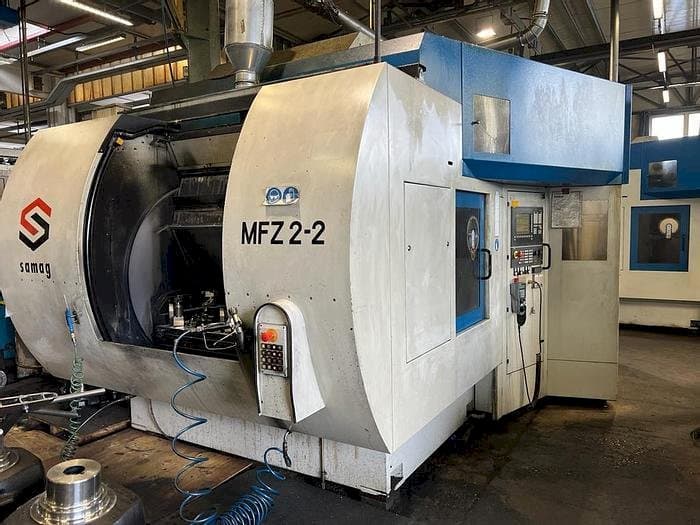

This SAMAG MFZ 2-2 horizontal machine center was made in the year 2008 in Germany. It is equipped with a Siemens Sinumerik and has 5 axis. The machine has a spindle speed of 16000 rpm.
Overview
- brand: SAMAG
- year: 2008
- MODEL: MFZ 2-2
- application type: Milling
- Location: Italy
- machine type: Machining centers (horizontal)
- availability: Sold
- control unit brand: Siemens
Technical Information - SAMAG MFZ 2-2
Control Unit
- Brand: Siemens
- Model: Sinumerik
Main drive
- Number of spindles: 2
- Spindle speed range: 16000 1/MIN
- Spindle motor power: 28 Kw
- Tool taper: HSK 63
- Number of axis: 5
Movement
- X-AXIS Movement: 450 mm
- X-AXIS Rapid traverse: 60 m/min
- Y-AXIS Movement: 500 mm
- Y-AXIS Rapid traverse: 60 m/min
- Z-AXIS Movement: 450 mm
- Z-AXIS Rapid traverse: 60 m/min
Additional Information
- Technical Machine Benefits:
- - Distance between spindles 450 mm
- - Tool magazine 2 x 50 positions
- - Chip conveyor accessories
- Qualitative Machine Benefits:
- - Good condition
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
