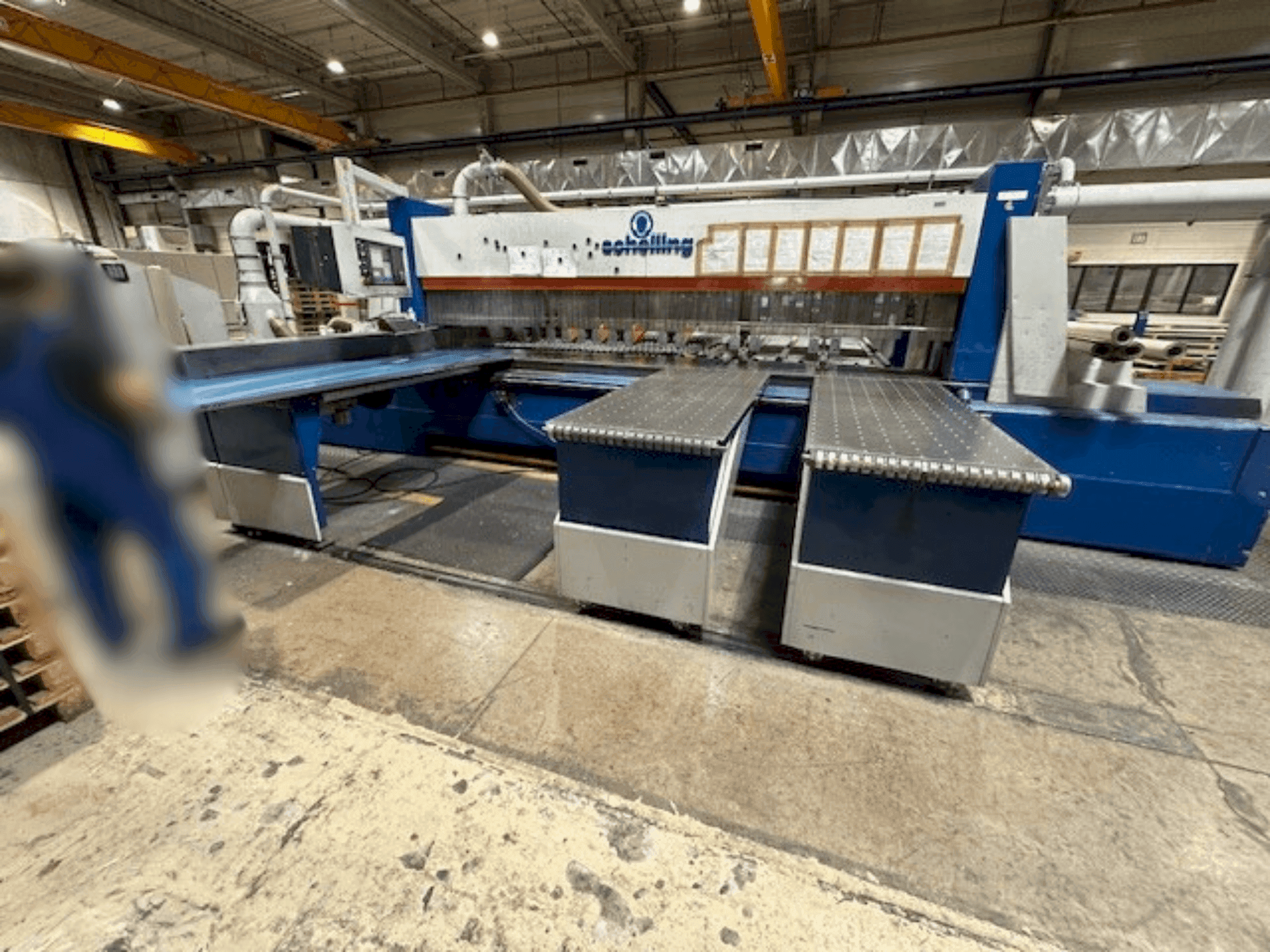

Front view of SCHELLING FSM-430  machine

SCHELLING - FSM-430DE-SAW-SCH-1994-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This SCHELLING FSM-430 panel saw was manufactured in 1994. Ideal for precise cutting, it features a robust design suitable for handling various panel sizes. If you are looking to get high-quality sawing capabilities, consider the SCHELLING FSM-430 machine we have for sale. Contact us for more information.

Overview

  • brand: SCHELLING
  • year: 1994
  • MODEL: FSM-430
  • application type: Sawing (Wood)
  • Location: Germany
  • machine type: Panel Saw
  • availability: Sold

Technical Information - SCHELLING FSM-430

Main drive

  • Number of axis: 2

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Swivelling control panel
      • - Slide-in unit with 8 clamps
      • - Compressed air requirement: approximately 800 l/min at 1 bar overpressure connection: 1’’ minimum 6 bar
      • - The electrical main connection requires approximately 50 kw, with a cable cross-section of 3×25 mm² cu, a 100 a main fuse, and operates at 380v, 50hz.
      • - The extraction system includes an angular impact extraction with a 120 mm diameter located 1030 mm above the floor, an extraction point with a 150 mm diameter 330 mm below the floor, and a pressure beam extraction with a 100 mm diameter positioned 1635-1955 mm above the floor, with an approximate airflow of 4250 m³/h at 32 m/sec, and connections of 1× 120 mm, 1× 100 mm, and 1× 150 mm diameter.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
