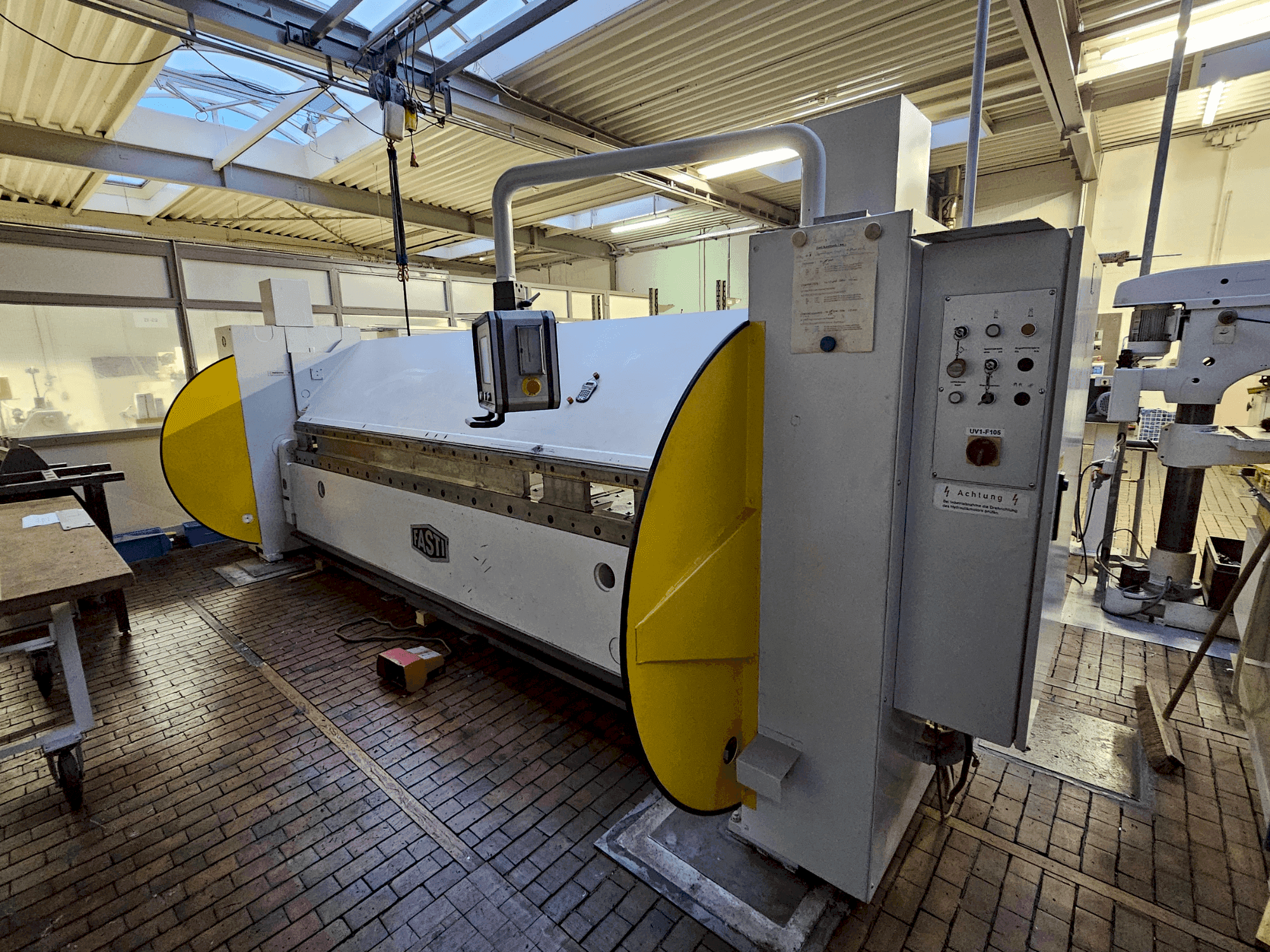

This SCHRODER-FASTI 215-40-4 was manufactured in 1994. A reliable profile bending machine, ideal for various metalworking applications. Despite its age, it remains a robust choice for precision cutting tasks. Consider the SCHRODER-FASTI 215-40-4 machine we have for sale. Contact us for more information.
Overview
- brand: SCHRODER-FASTI
- year: 1994
- MODEL: 215-40-4
- application type: Punching
- Location: Germany
- machine type: Profile Bending Machine
- availability: Sold
Technical Information - SCHRODER-FASTI 215-40-4
Main drive
- Spindle motor power: 8.6 kW
- Bending length: 4040 mm
Additional Equipment
- - Flat rail: 18 mm wide
- - Centre rail: 45°
- - Reinforcement rail: 36 mm
- - Stroke of the upper beam: 350 mm
- - Adjustability of the motorised bending beam: 80 mm
- - Adjustability of the motorised lower beam: 80 mm
- - Motor power for bending beam adjustment/lower beam adjustment: 0.75 kW
Additional Information
- Technical Machine Benefits:
- - Max sheet thickness: 4 mm at tensile strength 400 n/mm²
- - Equipped with motorized adjustments for bending and lower beams
- - High clamping pressure speed of 30%
- - Robust and adjustable bending capabilities
- - Steering: cnc-fasti-matik 4000
- - Reference dimension: 2024.7 mm largest dimension: 2000 mm smallest dimension: 16 mm smallest dimension 2: 46 mm finger size: 150 mm finger stop position: 155.9 mm dead zone: 0.5 mm AC parameters and additional calibration and speed settings provided for precision and efficiency
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
