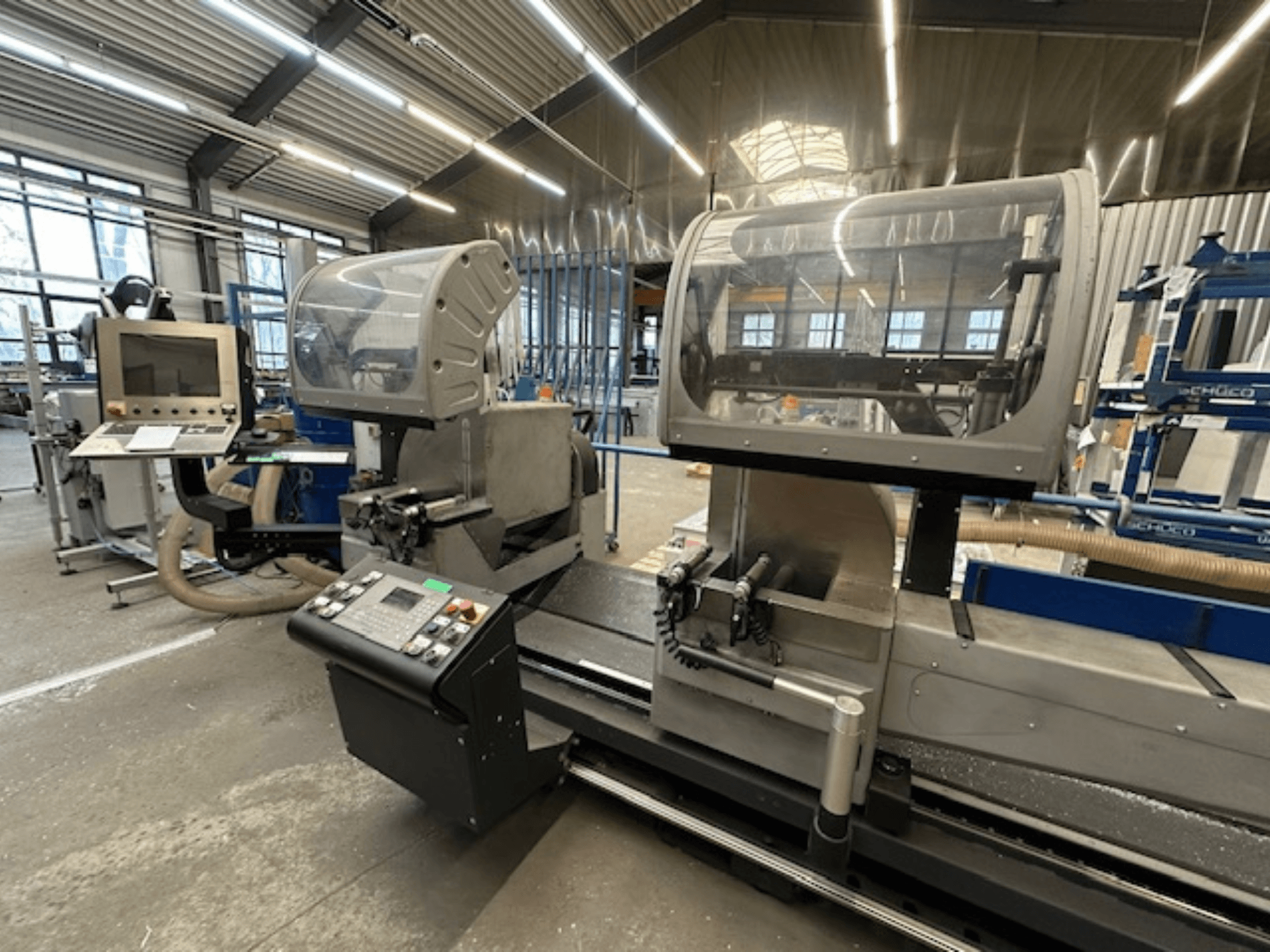

This 3-axis SCHÜCO PDG E CUT was manufactured in 2009. It features a maximum saw blade diameter of 600 mm and operates at a motor speed of 2410 min⁻¹. The machine includes a discharge conveyor belt and an extraction system for efficient operation. If you are looking to get high-quality cutting capabilities, consider the SCHÜCO PDG E CUT double mitre saw we have for sale. Contact us for further details.
Overview
- brand: SCHÜCO
- year: 2009
- MODEL: PDG E CUT
- application type: Sawing
- Location: Germany
- machine type: Circular Metal Saw
- control unit brand:
Technical Information - SCHÜCO PDG E CUT
Dimensions
- Machine Weight: 2600 kg
Additional Information
Motor speed: 2410 min⁻¹
Max saw blade diameter: 600 mm
Motor type: M 100, 4 kW
Electrical connection: 3~ 400 V / 50 Hz / 7.7 A
machinable material: Aluminium
Height [mm]: 1870
Depth [mm]: 2100
Compressed air: 7 bar
Coverage: 53
Consumption unit: NL/cycle
Locating hole: 32 mm
Control voltage type: DC
Width [mm]: 7125
Supply voltage (machine): 400 V
Voltage type (machine): AC
Frequency (machine): 50
Motor output: 2 x 2.2 kW
Control voltage: 24 V
Max. Cutting length: 5000 mm
Min. cutting length: 350 mm
Min. cutting length with software: 270 mm
Execution: 5 m
Angle setting: Via servo motors
Tilt angle (outside): up to 20°
Tilt angle (inside): up to 45°
Additional equipment
Discharge conveyor belt (Abtransportband)
Extraction system (Absauganlage), brand: Emmegi
