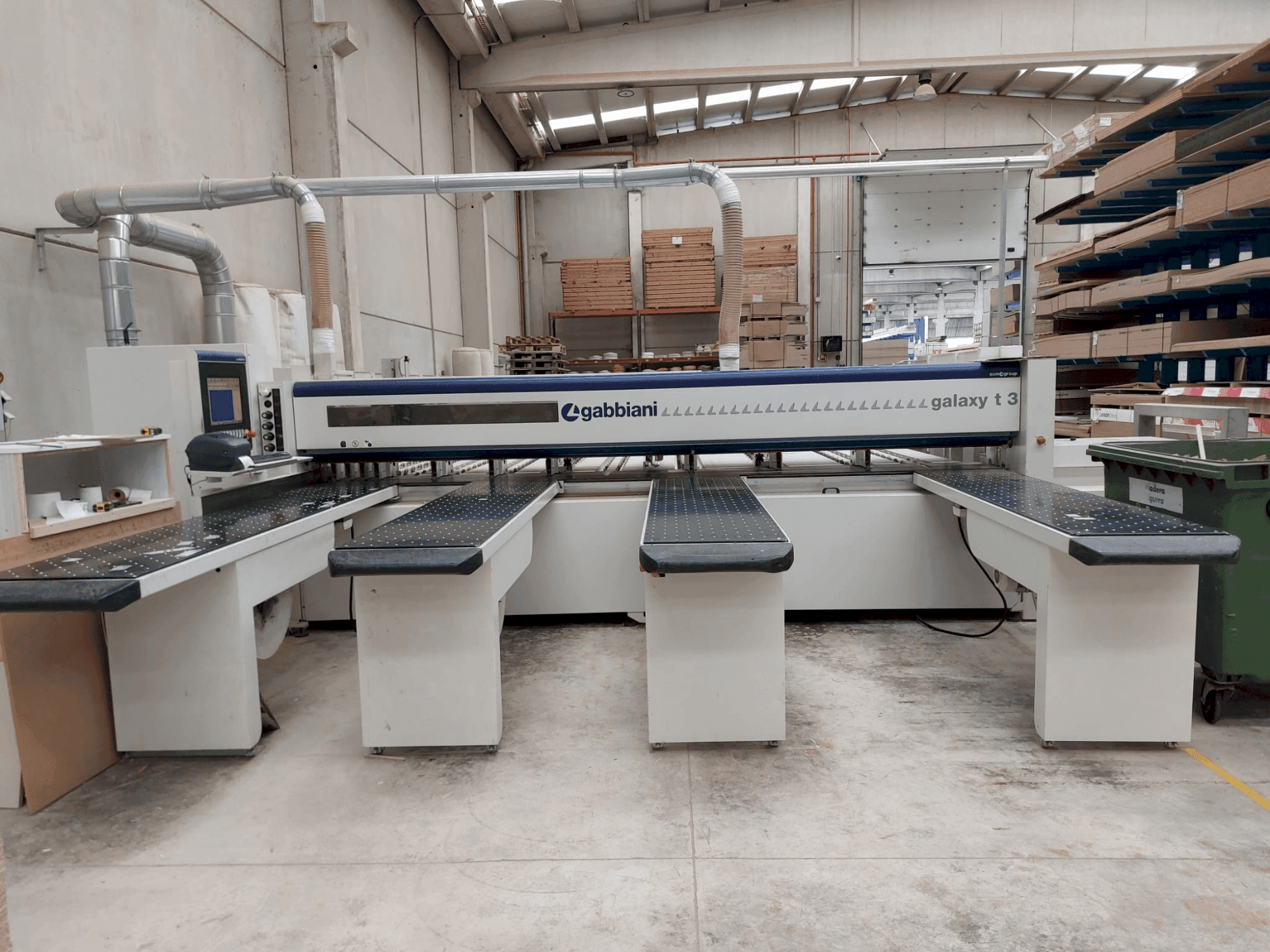

SCM - Gabbiani Galaxy T3 110AES-SAW-SCM-2015-00001

Additional Equipment

• - Highly efficient air cushion work surface
• - Automatic double motorised side stop
• - Optimised knife/pressure device with self-learning function
• - Main saw motor 15 HP at 50 Hz Av.0YD
• - Office labelling device
• - Manual or automatic panel feed with roller conveyor
• - Wincut Utility
• - Cutty Office

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Maximum projection of main saw blade: 115 mm
  • - Diameter of saw blade (with pneumatic slide) min. /max. : 300 - 400 mm // speed of saw blade (with pneumatic slide) min. /max. : 1164 / 3492 rpm
  • - Diameter of groove cutter min. /max. : 200 - 300 mm
  • - Speed of groove cutter: 4279 rpm
  • - Torque of motor for knife feed: 4. 7 nm
  • - Power of motor for feed/return of slide min. /max. : 0. 75 kw
  • - Motor power for rotation of lift table rollers min. /max. : 0. 55 / 0. 75 kw // motor power for lifting the lift table min. /max. : 2. 2 kw
  • - Fixed air cushion work surface with guide: 3000 x 600 mm
  • - Movable air cushion work surface with rollers: 2500 x 600 mm
  • - Automatic rear panel feeding: 4500 x 2440 mm with motorised roller conveyor

Extra information

• - Machine still under power
