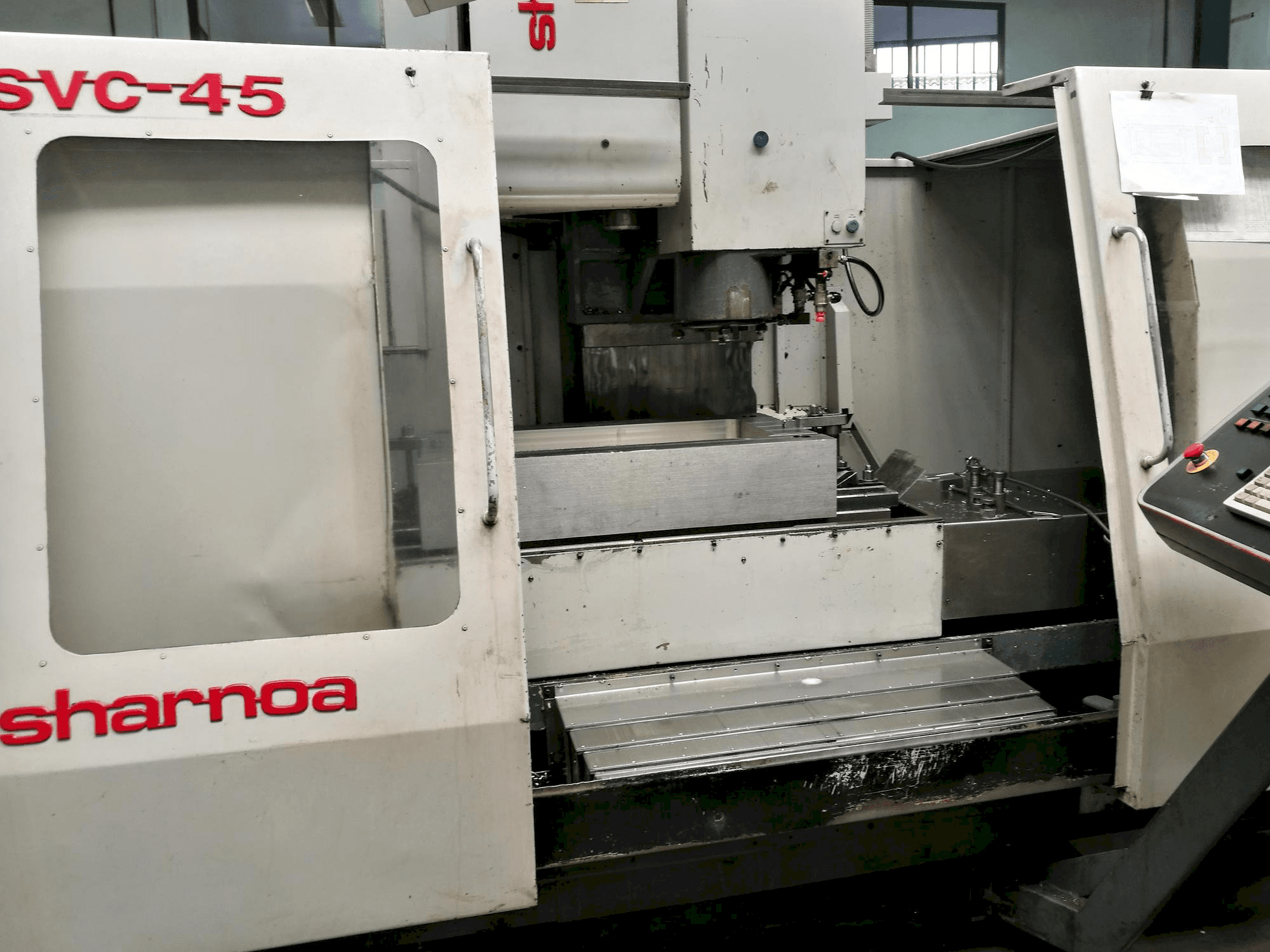

Sharnoa SVC-45 Vertical Machining Center

This Sharnoa SVC-45 Vertical Machining Center was built in 1993 in Spain and has been operative for 20000 hours. Equipped with a Sharnoa Tiger 5 Control unit, this machine can operate with a spindle speed range of 60-6540 rpm. It incorporates travels of 1130 x 560 x 670mm. It has a really good status, as in 2016 it had a complete revision and alignment of the axes.

Overview

brand: Sharnoa
year: 1993
MODEL: SVC-45
production hours: 20000
application type: Milling
Location: Spain
machine type: Vertical Machining Centre

Technical Information - Sharnoa SVC-45

Dimensions

Machine Depth: 2665 mm
Machine Height: 2848 mm
Machine Weight: 7500 kg
Table Length: 1250 mm
Table Width: 500 mm

Movement

X-axis Travel: 1130 mm
Y-axis Travel: 560 mm
Z-axis Travel: 670 mm

Technical Specification

Max. Tool Weight: 10 kg
Spindle Speed: 6540 RPM
Tool Stations: 24

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
