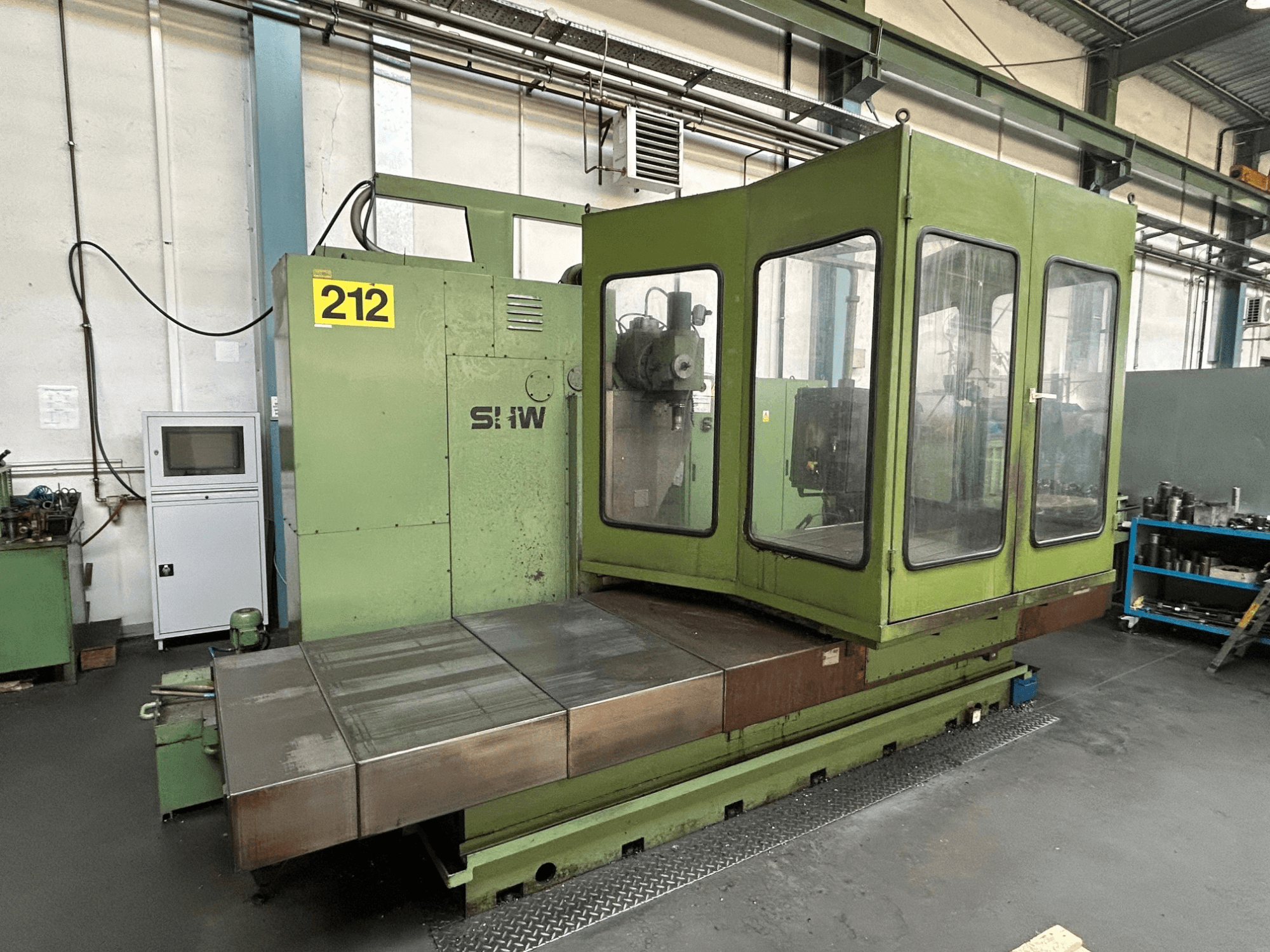

SHW - UF-5PL-MIL-SHW-1993-00001

• Quill in milling head: 115 mm

• Feed drives and feeds:

  • Individual drives (X, Y, Z)

  • Infinitely variable feeds (X, Y, Z): 2–8000 mm/min

  • Rapid traverse (X, Y, Z): 8000 mm/min

• Milling spindle drive:

  • DC motor drive power: 20 kW

  • Speed range (infinitely variable): 36–1800 rpm

  • Horizontal and vertical spindle

  • Spindle taper: ISO 50

  • Horizontal spindle diameter (front bearing): 95 mm

• Tool clamping force:

  • Horizontal spindle: 16,000 N

  • Vertical spindle: 10,000 N

Additional equipment

• Rotary table RT 5D:

  • Table plate with 7 T-slots, 1 central slot

  • Table diameter: Ø 1400 mm

  • T-slot size: 22 H7 (DIN 650)

  • Center bore: 160 mm

  • Max. rotational speed: 2.5 min⁻¹

  • Max. table load: approx. 4000 kp

  • Table weight: approx. 2800 kg
