SMEC SL 4500 L

Photo Gallery

SMEC - SL 4500 LPL-TUR-SME-2020-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used SMEC SL 4500 L For Sale | gindumac.com

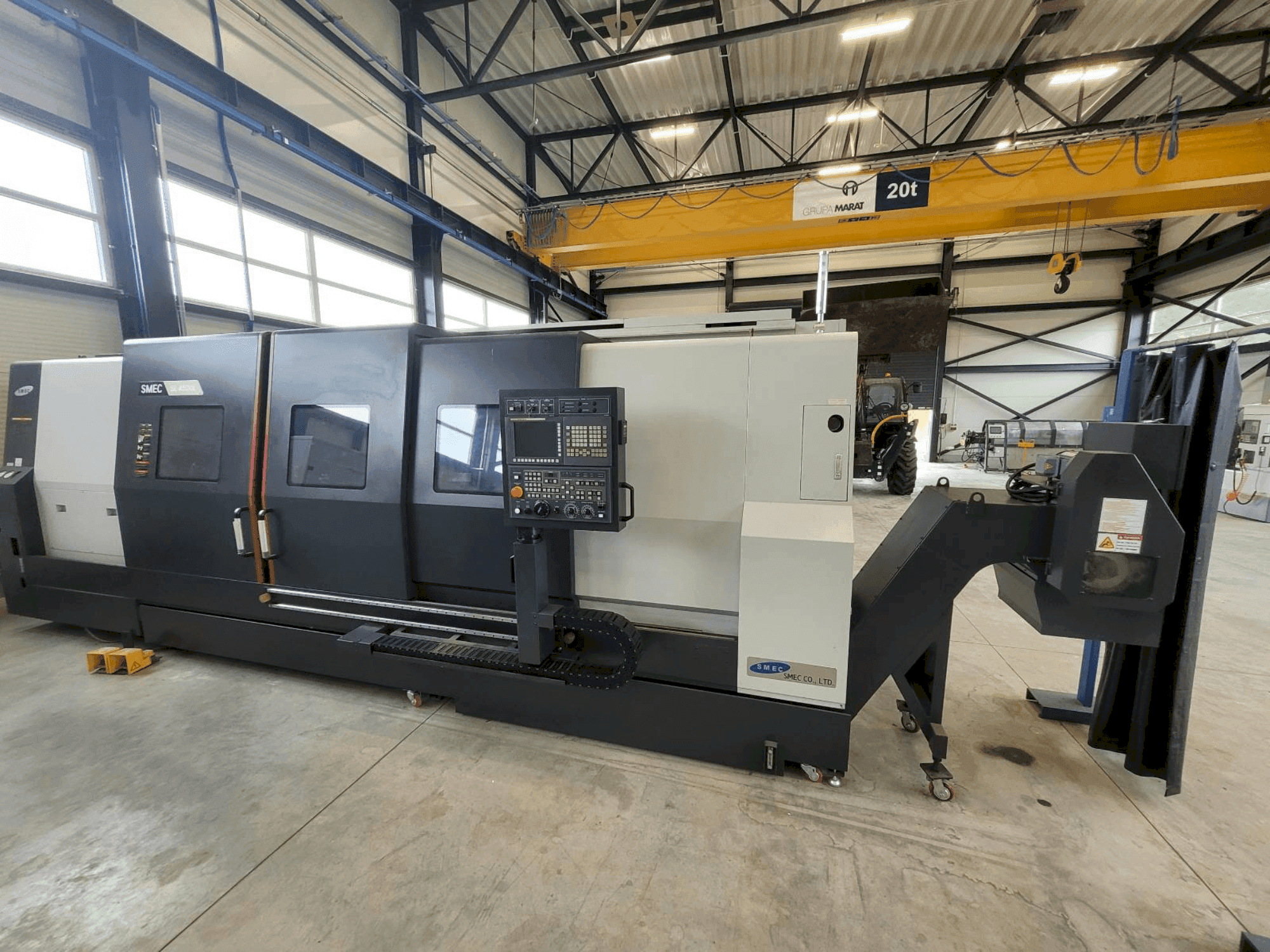

This SMEC SL 4500 L was manufactured in 2020. It features an 18" chuck, a maximum turning diameter of 690 mm, and a machining length of 3,055 mm. The spindle supports speeds up to 1,800 rpm with a motor power of 30/37 kW. It includes a 12 station turret and a tailstock with a MT5 taper. Consider the opportunity to buy this SMEC SL 4500 L horizontal turning machine. Contact us for more information about this machine.

Overview

brand: SMEC
year: 2020
MODEL: SL 4500 L
production hours: 2
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - SMEC SL 4500 L

Control Unit

Control Brand: FANUC
Control Model: Series Oi-TF

Dimensions

Machine Weight: 20000 kg

Movement

Number of Axes: 2
X-axis Travel: 350 mm
Z-axis Travel: 3130 mm

Technical Specification

Spindle Power: 30 kW
Spindle Speed: 1800 RPM

Additional Information

Additional equipment

Electric Power Supply Required: 59 / 220 kVA

Machine Benefits

Qualitative Machine Benefits

Very good technical condition

Technical Machine Benefits

Chuck size: 18 inches
Max turning diameter: 690 mm
Max machining length: 3055 mm
Turning tool shank size: 32 mm
Boring bar diameter: 60 mm
Turret index time (next station swivel): 0. 20 sec
Quill stroke: 150 mm
Spindle nose: asa a2-11
Draw tube id: 117. 5 mm
Coolant tank capacity: 600 l

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
