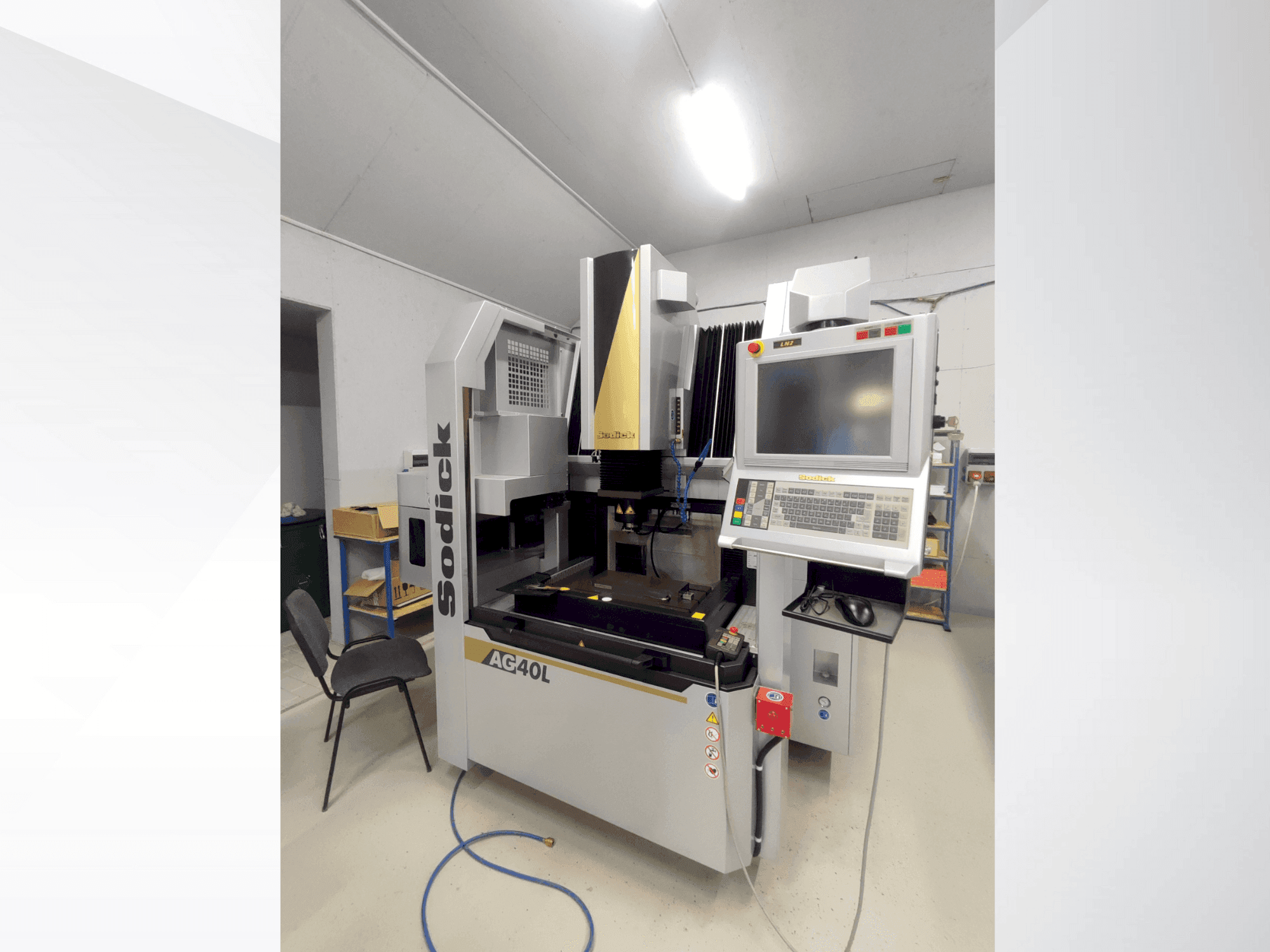

Front view of Sodick AG40L  machine

Sodick - AG40LHU-EDM-SOD-2020-00001


Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

Click to chat on WhatsApp

This SODICK AG40L erosion machine was manufactured in the year 2020 and has 355 production hours. It is equipped with a SODICK LN2 control unit. The machine disposes of a SVC circuit for superfine surfaces and graphite electrode machining. Contact us anytime for further questions.


  • brand: Sodick
  • year: 2020
  • MODEL: AG40L
  • production hours: 355
  • application type: EDM
  • Location: Hungary
  • machine type: Erosion Machine
  • availability: Sold
  • control unit brand: SODICK

Technical Information - Sodick AG40L

General Data

  • Measurements width: 1662 mm
  • Measurements depth: 2320 mm
  • Measurements height: 2490 mm
  • Machine weight: 4100 kg

Control Unit

  • Brand: SODICK
  • Model: LN2

Main drive

  • Number of axis: 3


  • X-AXIS Movement: 400 mm
  • Y-AXIS Movement: 300 mm
  • Z-AXIS Movement: 270 mm


  • Workpiece weight: 550 kg


  • Number of index: 32

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Linear glass ruler on all axes
      • - Svc circuit for superfine surfaces and graphite electrode machining
      • - Ceramic parts
      • - Operating hours: 848 hours, working hours: 355 hours
      • - Worktable size (mm): 600 x 400
      • - Distance between floor and upper plane of table (mm): 83
      • - Max. Electrode weight (kg): 50

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
