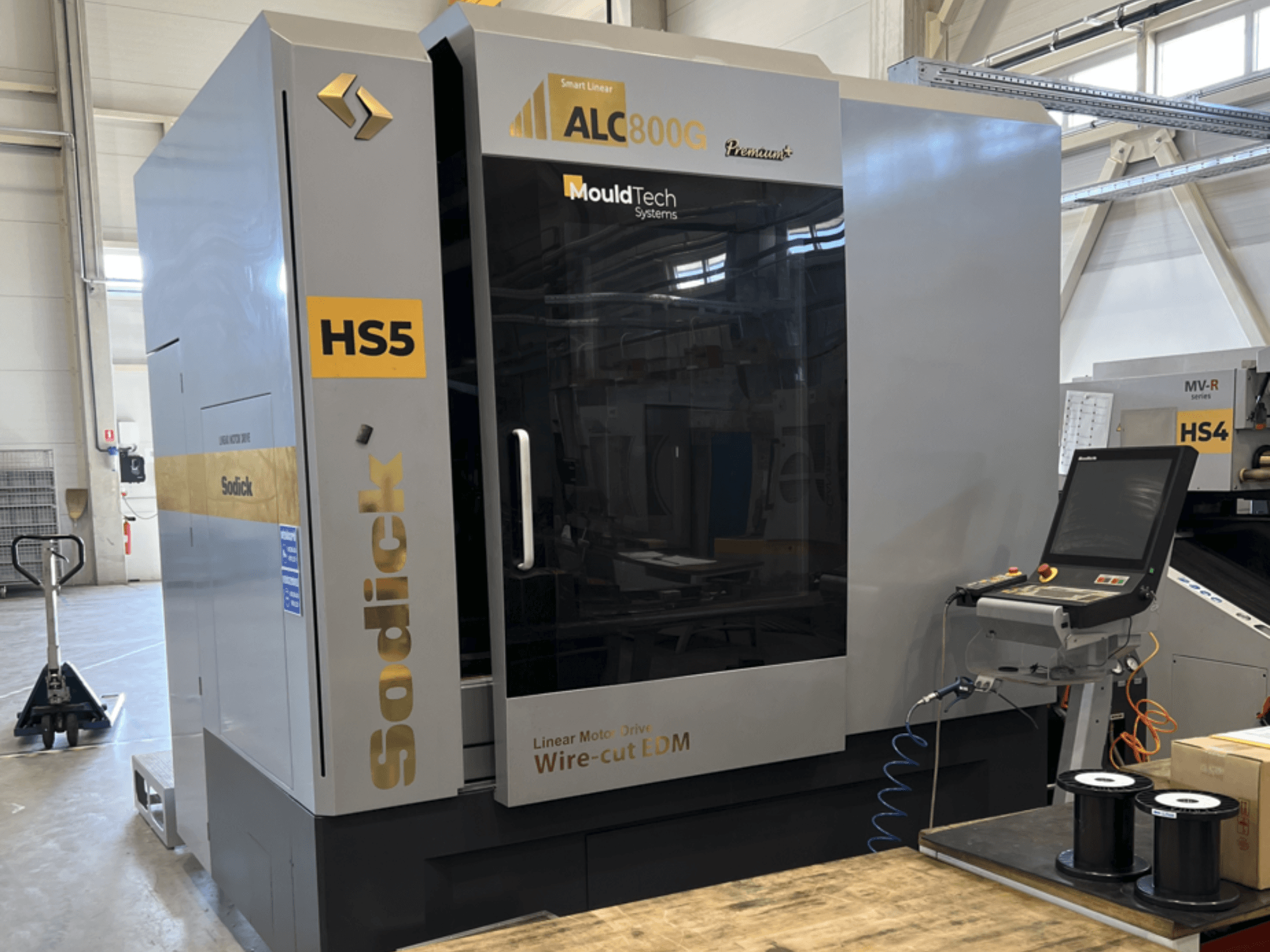

This 5-axis Sodick ALC800G Premium was manufactured in 2021. It features an X-axis travel of 800 mm, Y-axis travel of 600 mm, and Z-axis travel of 500 mm, providing a versatile working area with a maximum workpiece weight of 3,000 kg. If you are looking to get high-quality wire EDM capabilities, consider the Sodick ALC800G Premium machine we have for sale. Contact us for further details.
Overview
- brand: Sodick
- year: 2021
- MODEL: ALC800G Premium
- production hours: 15000
- application type: EDM
- Location: Hungary
- machine type: Wire EDM Machine
- control unit brand:
Technical Information - Sodick ALC800G Premium
Dimensions
- Machine Height: 2780 mm
- Machine Length: 3640 mm
- Machine Weight: 6000 kg
- Machine Width: 3395 mm
Movement
- Number of Axes: 5
- X-axis Travel: 800 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 500 mm
Technical Specification
- Max. Wire Diameter: 0.3 mm
- Min. Wire Diameter: 0.1 mm
Additional Information
Axis
Number of axes: 5 (X, Y, Z, U, V)
U/V travel: 200 × 200 mm
Working area
Work tank size: 1,410 × 1,110 mm
Max. workpiece weight: 3,000 kg
Distance table to floor: 995 mm
Wire system
Max. wire speed: 420 mm/sec
Wire tension: 3 – 23 N
Taper angle: ±25° (at 130 mm thickness)
Machine dimensions
Installation space: 4,675 × 5,050 mm
Electrical
Power supply: 3-phase, 400V, 50/60Hz
Power consumption: 13 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
