- Sodick VL600Q Erosion machine

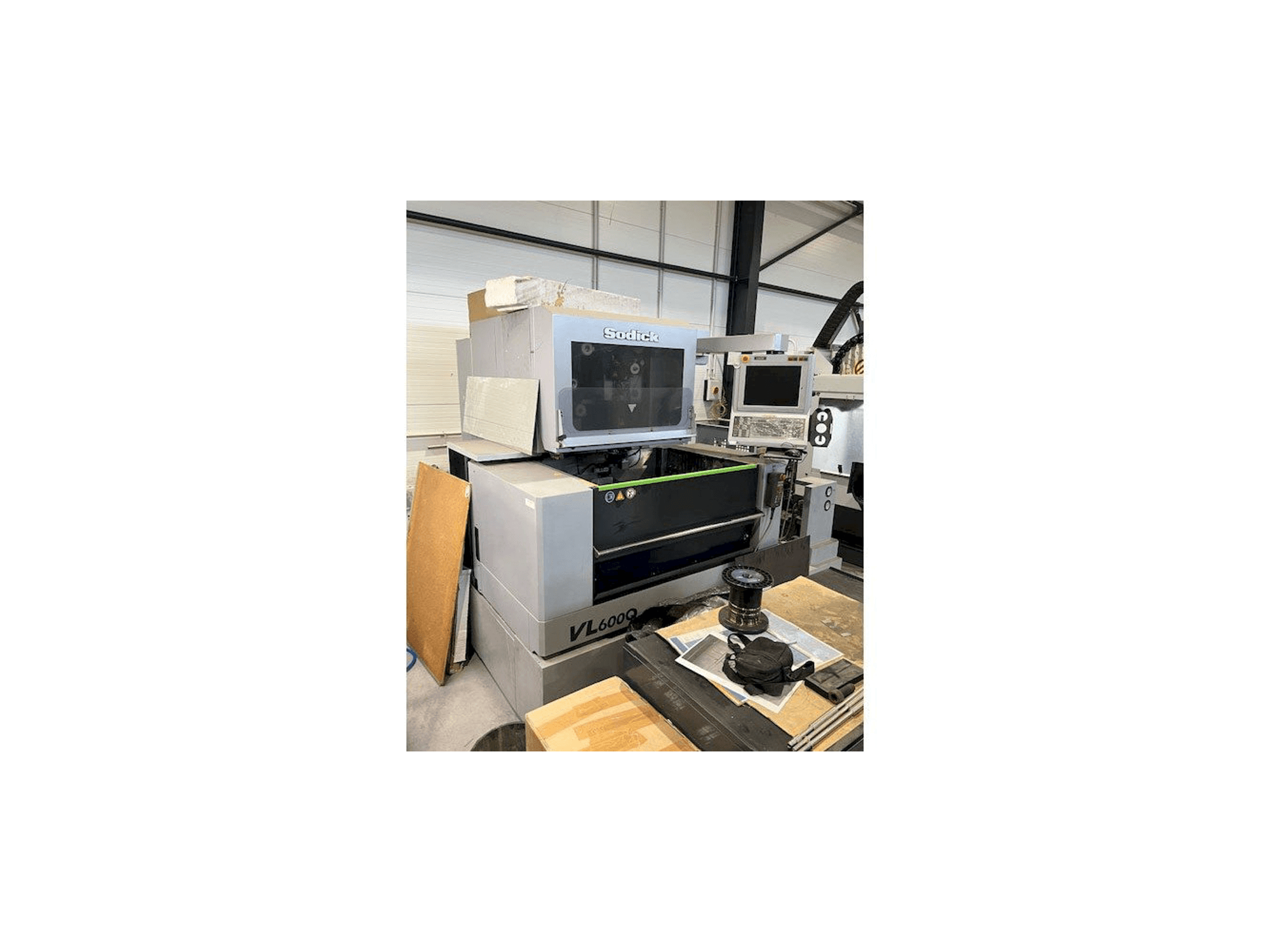

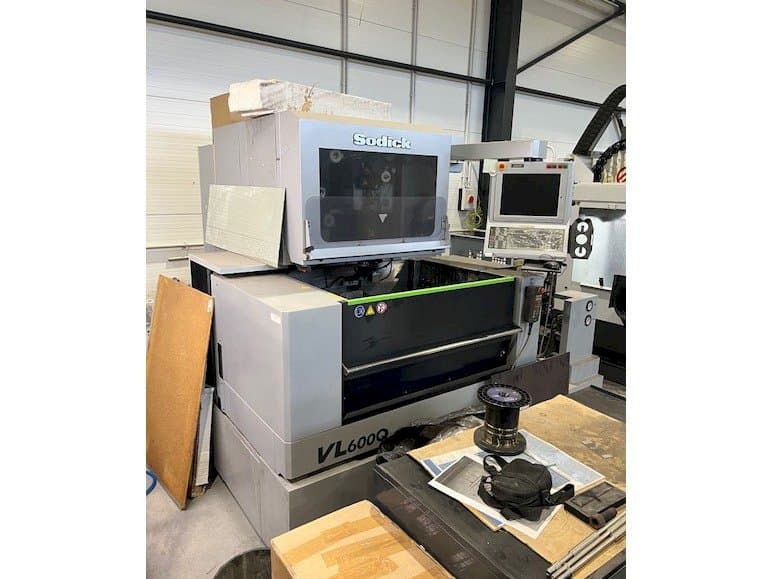

This Sodick VL600Q Erosion machine was manufactured in the year 2016 and has 9958 hours. It is equipped with a Sodick LN2W control unit. The machine has a Wire diameter of 0.1-0.3 mm.
Overview
- brand: Sodick
- year: 2016
- MODEL: VL600Q
- production hours: 9958
- application type: EDM
- Location: Czech Republic
- machine type: Wire EDM Machine
- availability: Sold
- control unit brand: SODICK
Technical Information - Sodick VL600Q
General Data
- Measurements width: 2620 mm
- Measurements depth: 2605 mm
- Measurements height: 2080 mm
- Machine weight: 3140 kg
Control Unit
- Model: LN2W
- Brand: SODICK
Main drive
- Wire diameter: 0.1-0.3 mm
Movement
- X-AXIS Movement: 600 mm
- Y-AXIS Movement: 400 mm
- Z-AXIS Movement: 270 mm
Workpiece
- Workpiece weight: 850 kg
Table
- Outer length: 1040 mm
- Outer width: 780 mm
Additional Information
- Technical Machine Benefits:
- - U x v axis travel 90 x 90 mm
- - Wire feed speed (max. ) 420 mm/sec
- - Working tank dimensions (w×d) 1040 x 780 mm
- - Machining at an angle (working height 120mm) +/- 15 degrees
- - Wire tension 3-23 n
- - Distance from floor to table top 930 mm
- - Dielectric capacity/amount 420 kg/890 l
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
