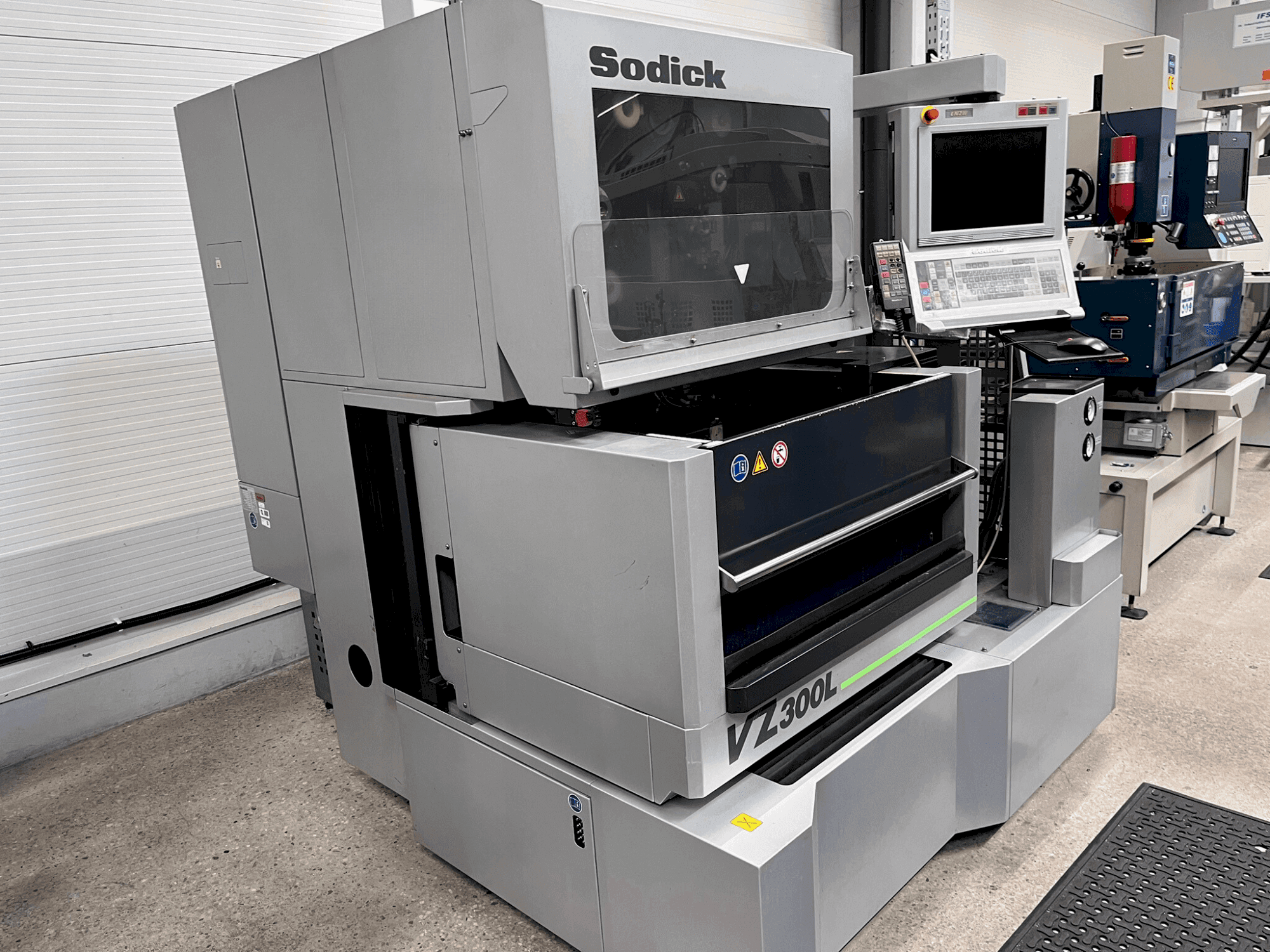

Left side view of Sodick VZ 300L  machine

Sodick VZ 300L

Sodick - VZ 300L

2010

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This SODICK VZ 300L (2010) Wire cut EDM machine was manufactured in 2010. It is equipped with a SODICK LNZW control and has 3 axes with axis travel (X x Y x Z) 350 x 250 x 220 mm. The machine has a work tank inner size of 810 x 650 mm and operates with a wire diameter of Ø 0.15 - Ø 0.3 mm. It is the perfect entry-level machine offered by Sodick which embodies all of the company's key features, including linear motor drives coupled with linear scales. The VZ series stands out for its versatility and comes equipped with a suite of standard functions, such as onboard Heart-NC programming, advanced corner control, automatic float control, a new power supply featuring cutting-edge active control discharge technology, and more. See photo gallery and product brochure attached as PDF for more details.

Overview

  • brand: Sodick
  • year: 2010
  • MODEL: VZ 300L
  • application type: EDM
  • Location: Hungary
  • machine type: Erosion Machine
  • availability: Sold
  • control unit brand: SODICK
  • GINDUMAC ID: HU-EDM-SOD-2010-00001

Technical Information

General Data

  • Measurements width: 1895 MM
  • Measurements depth: 2180 MM
  • Measurements height: 1960 MM
  • Machine weight: 2400 kg

Control Unit

  • Brand: SODICK
  • Model: LN2W

Movement

  • X-AXIS Movement: 350 MM
  • Y-AXIS Movement: 250 MM
  • Z-AXIS Movement: 220 MM

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Work tank inner size (w x d) 810 x 650 mm
      • - Max. Size of workpiece(w x d xh) -submerge 780 x 570 x 200 mm
      • - Max. Size of workpiece (w x d xh) - flushing 780 x 570 x 215 mm
      • - Max. Weight of workpiece - submerge 350 kg
      • - Max. Weight of workpiece - flushing 500 kg
      • - Auxiliary table travel (u x v axis) 80 x 80 mm
      • - Wire diameter Ø0. 15-Ø0. 3 mm
      • - Taper angle / thickness ±15° / 120 mm
      • - Dielectric fluid capacity 550 liters
      • - Power consumption (3 ph. 50/60 hz) 11 kva // max. Machining current 32a
    • Qualitative Machine Benefits:
      • - Linear motors (x, y, u, v axis) // linear glass scales (x, y, u, v axis)
      • - Heart nc–automatic programming system // high speed electrolysis free circuit
      • - Corner control // tension servo
      • - Energy saving circuit // ftii (fine pick-up function)
      • - Dielectric cooling unit (chiller) // z -axis automatic water level control
      • - Super jet awt (annealing type) // wire tip disposal unit
      • - Remote controller & mouse // ups // step-down transformer
      • - Lan +usb // 15" tft lcd touch screen
      • - Front door up-down slide tank // slide plate cleaning function
      • - Low pressure flushing

    Extra information

    • - The ideal entry-level machine from Sodick incorporates all of the company's key features, including linear motor drives paired with linear scales. This drive method ensures sustained high-speed and rapid response, while preserving initial positioning accuracy over the long term. Users can expect consistently reliable machining performance. The VZ series boasts versatility and comes equipped with a range of standard functions, including Heart-NC onboard programming, advanced corner control, automatic float control, and a new power supply featuring advanced active control discharge technology, among others. Furthermore, Sodick utilizes its in-house superior ceramics as the standard material for precision machining applications.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
