➤ Used ONA AE600 - Die-Sinking EDM For Sale | gindumac.com

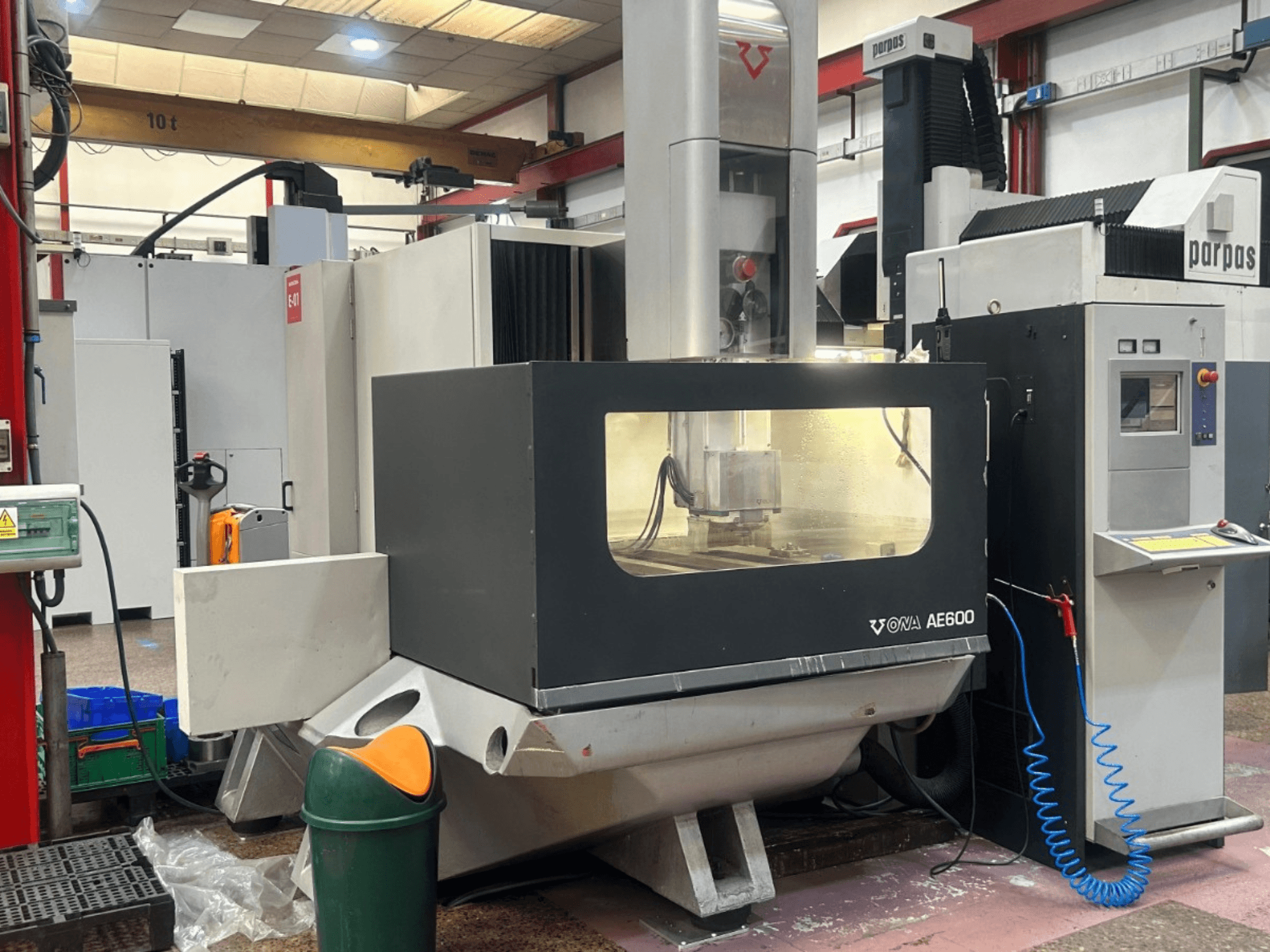

This 3-axis ONA AE600 die-sinking EDM machine was manufactured in 2007. It features an X-axis travel of 800 mm, Y-axis travel of 600 mm, and Z-axis travel of 500 mm. The machine can accommodate workpieces up to 1,300 mm in length, 1,040 mm in width, and 500 mm in height, with a maximum weight of 5,000 kg. If you are looking to get high-quality die-sinking capabilities, consider the ONA AE600 machine we have for sale. Contact us for further details.

Overview

brand: ONA
year: 2007
MODEL: AE600
application type: EDM
Location: Spain
machine type: Die-Sinking EDM Machine

Technical Information - ONA AE600

Dimensions

Machine Weight: 7700 kg

Movement

Number of Axes: 3
X-axis Travel: 800 mm
Y-axis Travel: 600 mm
Z-axis Travel: 500 mm

Additional Information

Max. workpiece length: 1,300 mm
Max. workpiece width: 1,040 mm
Max. workpiece height: 500 mm
Max. workpiece weight: 5,000 kg
Worktank dimensions: 1,300 × 1,040 × 540 mm
Automatic wire threading: Yes
Power: 13 kVA
Current: 19 A
Voltage: 400 V
Frequency: 50 Hz
Compressed air supply: 6 bar (min.)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
