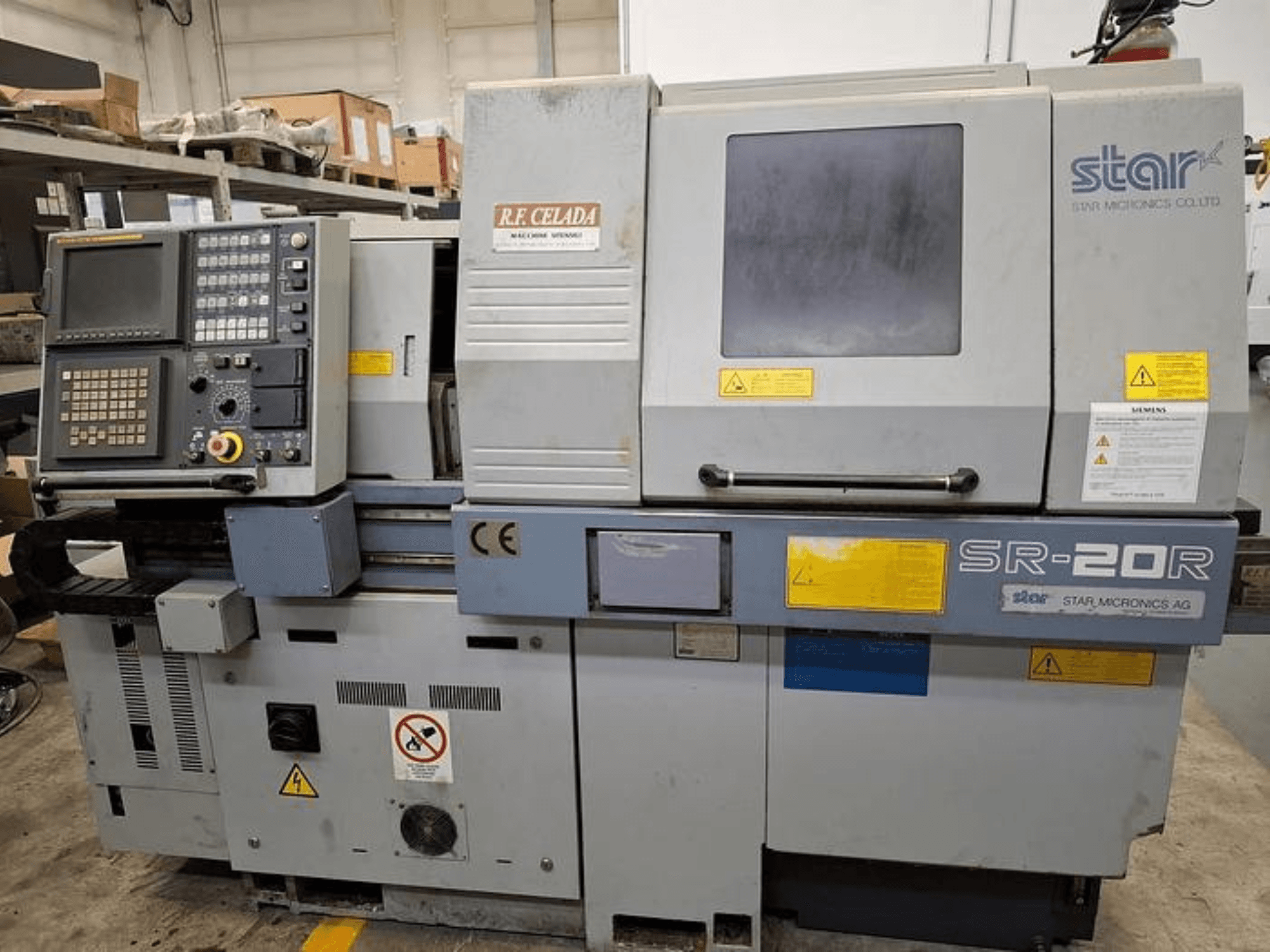

Star - SR 20 RIT-TUR-STA-2000-00001

Capacities

• Maximum turning diameter: 20 mm

• Maximum mobile tailstock travel (single clamping): 205 mm

• Maximum workpiece diameter / through bore: 20 mm

• Maximum workpiece length (front ejection): 80 mm

Spindle

• Spindle bore diameter: 20 mm

Feeds

• Rapid feed (linear axes): 20 m/min

• Rapid feed (C-axis): 90,000°/min

• Maximum cutting feed (linear axes): 10 m/min

• Maximum cutting feed (C-axis): 10,000°/min

Tooling

• Fixed turning tool: M8 × 1.25

• Rotary tool on comb slide: M6 × 1

• End mill on comb slide: Ø 10 mm

• Fixed turning tool stations (std/opt): 6

• Tool shank diameter (std/opt): 12 mm

• Radial motorized tool stations: 4

• Max speed of motorized units: 8,000 rpm

• Max power of motorized units: 1.2 kW

• Fixed drilling/tapping tool stations: 4

• Max collet diameter (ER collet): 10 mm

• Max drilling capacity (C45 steel): 8 mm

• Max tapping capacity (C45 steel): M8 × 1.25 / M6 × 1

Power and utilities

• Available power: 2.2 kW

• Total installed power: 7 kVA

• Tank capacity: 155 L

Machine dimensions & weight

• Maximum footprint: 2.21 × 1.08 m

Axes

• Number of axes: 2 (X and C)
